#include<kfbxcharacter.h>

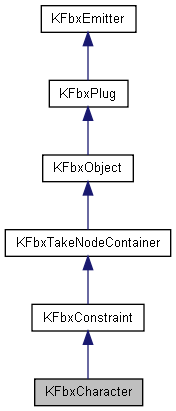

Inheritance diagram for KFbxCharacter:

[legend]

List of all members.

Detailed Description

This class contains all methods to setup an exported character or query information on an imported character.

This class also contains some methods for manipulating theKFbxCharacterLink,KFbxControlSet

The most important part of aKFbxCharacteris theKFbxCharacterLink. There is oneKFbxCharacterLinkfor each characterized node. This class contains the associatedKFbxNodeto the node represented by this link and also the characterization offset of this node. For more information seeKFbxCharacterLinkclass documentation.

Definition at line411of filekfbxcharacter.h.

Public Types
enum	EError
	Error identifiers.More...
Public Member Functions
void	Reset()
	Reset to default values.
void	SetInput(ECharacterInputTypepInputType,KFbxObject*pInputObject=NULL)
	Set input type and index.
ECharacterInputType	GetInputType() const
	Get input type.
KFbxObject*	GetInputObject() const
	Get input actor or character.
bool	SetCharacterLink(ECharacterNodeId pCharacterNodeId, constKFbxCharacterLink&pCharacterLink, bool pUpdateObjectList=true)
	Associate a character link to a given character node ID.
bool	GetCharacterLink(ECharacterNodeId pCharacterNodeId,KFbxCharacterLink*pCharacterLink=NULL) const
	Get a character link associated with a given character node ID.
KFbxControlSet&	GetControlSet() const
	Get control set associated with the character.
Static Public Member Functions
static int	GetCharacterGroupCount(ECharacterGroupId pCharacterGroupId)
	Get number of elements in a given character group.
static ECharacterNodeId	GetCharacterGroupElementByIndex(ECharacterGroupId pCharacterGroupId, int pIndex)
	Get character node ID of an element in a given character group.
static char *	GetCharacterGroupNameByIndex(ECharacterGroupId pCharacterGroupId, int pIndex)
	Get character node name of an element in a given character group.
static int	GetCharacterGroupVersionByIndex(ECharacterGroupId pCharacterGroupId, int pIndex)
	Get character node version of an element in a given character group.
static bool	FindCharacterGroupIndexByName(char *pName, bool pForceGroupId, ECharacterGroupId&pCharacterGroupId, int&pIndex)
	Find the character group index associated with a given character node name.
static bool	GetCharacterGroupIndexByElement(ECharacterNodeId pCharacterNodeId, ECharacterGroupId&pCharacterGroupId, int&pIndex)
	Get character node group and index of a given character node ID.
static bool	GetCharacterGroupVersionByElement(ECharacterNodeId pCharacterNodeId, int&pVersion)
	Get character node version of a given character node ID.
static bool	GetCharacterNodeNameFromNodeId(ECharacterNodeId pCharacterNodeId, char *&pName)
	Get character node name associated with a given character node ID.
static bool	GetCharacterNodeIdFromNodeName(char *pName, ECharacterNodeId&pCharacterNodeId)
	Get the character node ID associated with a given character node name.

Member Enumeration Documentation

enumEError

Error identifiers.

• eERROR
• eERROR_COUNT

Reimplemented fromKFbxConstraint.

Definition at line532of filekfbxcharacter.h.

Member Function Documentation

void Reset

(

)

Reset to default values.

• Input type will be set to eCharacterInputStance.
• Input object will be set to NULL.
• Each Character link will be reset.
• The control set will be reset.

void SetInput	(	ECharacterInputType	pInputType,
		KFbxObject*	pInputObject=NULL
	)

Set input type and index.

Parameters:

	pInputType	Input type.
	pInputObject	Pointer to input character if input type equals eCharacterInputCharacter, otherwiseNULL.

ECharacterInputTypeGetInputType

(

)

const

Get input type.

KFbxObject* GetInputObject

(

)

const

Get input actor or character.

Returns:

Pointer orNull, depending on the input type.

• If the input type is set to eCharacterInputCharacter. The returned pointer can be casted to a pointer of typeKFbxCharacter.
• Nullpointer if the input object has not been set, or if the input type is not set to eCharacterInputCharacter.

bool SetCharacterLink	(	ECharacterNodeId	pCharacterNodeId,
		constKFbxCharacterLink&	pCharacterLink,
		bool	pUpdateObjectList=true
	)

Associate a character link to a given character node ID.

If a character link already exists for this character node ID, the character link will be removed.

Parameters:

	pCharacterNodeId	Character node ID.
	pCharacterLink	Character link.
	pUpdateObjectList	Set totrueto update the object list (default value).

Returns:

trueif successful,falseotherwise.

bool GetCharacterLink	(	ECharacterNodeId	pCharacterNodeId,
		KFbxCharacterLink*	pCharacterLink=NULL
	)			const

Get a character link associated with a given character node ID.

Parameters:

	pCharacterNodeId	ID of character node requested.
	pCharacterLink	Optional pointer to receive the character link if function succeeds.

Returns:

trueif successful,falseotherwise.

KFbxControlSet&GetControlSet

(

)

const

Get control set associated with the character.

Returns:

Return the control set associated with the character.

static int GetCharacterGroupCount

(

ECharacterGroupId

pCharacterGroupId

)

[static]

Get number of elements in a given character group.

Parameters:

pCharacterGroupId

Character group ID.

Returns:

The number of elements in the pCharacterGroupId character group.

static ECharacterNodeId GetCharacterGroupElementByIndex	(	ECharacterGroupId	pCharacterGroupId,
		int	pIndex
	)			[static]

Get character node ID of an element in a given character group.

Parameters:

	pCharacterGroupId	Character group ID.
	pIndex	Character index ID.

Returns:

Character node ID.

static char* GetCharacterGroupNameByIndex	(	ECharacterGroupId	pCharacterGroupId,
		int	pIndex
	)			[static]

Get character node name of an element in a given character group.

Parameters:

	pCharacterGroupId	Character group ID.
	pIndex	Character index ID.

Returns:

Character node name.

static int GetCharacterGroupVersionByIndex	(	ECharacterGroupId	pCharacterGroupId,
		int	pIndex
	)			[static]

Get character node version of an element in a given character group.

Parameters:

	pCharacterGroupId	Character group ID.
	pIndex	Character index ID.

Returns:

Character node version.

static bool FindCharacterGroupIndexByName	(	char *	pName,
		bool	pForceGroupId,
		ECharacterGroupId&	pCharacterGroupId,
		int&	pIndex
	)			[static]

Find the character group index associated with a given character node name.

Parameters:

	pName	Character node name.
	pForceGroupId	Set totrueto force the character group ID.
	pCharacterGroupId	Receives character group ID.
	pIndex	Receives character index ID.

Returns:

trueif successful, otherwisefalse.

static bool GetCharacterGroupIndexByElement	(	ECharacterNodeId	pCharacterNodeId,
		ECharacterGroupId&	pCharacterGroupId,
		int&	pIndex
	)			[static]

Get character node group and index of a given character node ID.

Parameters:

	pCharacterNodeId	Character node ID.
	pCharacterGroupId	if the Character node ID is found, the method returns the group ID through this parameter
	pIndex	if the Character node ID is found, the method returns the index through this parameter

Remarks:

Only works for a character node ID that is part of a group.

Returns:

trueif successful,falseotherwise.

static bool GetCharacterGroupVersionByElement	(	ECharacterNodeId	pCharacterNodeId,
		int&	pVersion
	)			[static]

Get character node version of a given character node ID.

Parameters:

	pCharacterNodeId	Character node ID to get version.
	pVersion	if the node ID is found, the method returns the version through this parameter

Remarks:

Only works for a character node ID is part of a group.

Returns:

trueif successful,falseotherwise.

static bool GetCharacterNodeNameFromNodeId	(	ECharacterNodeId	pCharacterNodeId,
		char *&	pName
	)			[static]

Get character node name associated with a given character node ID.

Parameters:

	pCharacterNodeId	Character node ID to get name.
	pName	if the node ID is found, the method returns the node name through this parameter Since the Pointer points to internal data, it is not necessary to allocate a string buffer before calling this function.

Returns:

trueif a name exists for the given node ID.

static bool GetCharacterNodeIdFromNodeName	(	char *	pName,
		ECharacterNodeId&	pCharacterNodeId
	)			[static]

Get the character node ID associated with a given character node name.

Parameters:

	pName	Character node name to get node ID.
	pCharacterNodeId	if the node name is found, this method returns the node ID through this parameter

Returns:

trueif a node ID exists for the given node name.
