#include<kfbxcamera.h>

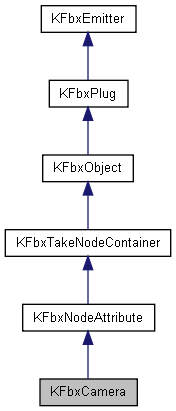

Inheritance diagram for KFbxCamera:

[legend]

List of all members.

Detailed Description

This node attribute contains methods for accessing the properties of a camera.

A camera can be set to automatically point at and follow another node in the hierarchy. To do this, the focus source must be set to ECameraFocusSource::eCAMERA_INTEREST and the followed node associated with functionKFbxNode::SetTarget().

Definition at line72of filekfbxcamera.h.

Camera Position and Orientation Functions
enum	ECameraProjectionType
	Camera projection types.More...
K_DEPRECATED void	SetPosition(constKFbxVector4&pPosition)
	Set the default XYZ camera position.
K_DEPRECATEDKFbxVector4	GetPosition() const
	Get the default position of the camera.
K_DEPRECATED void	SetUpVector(constKFbxVector4&pVector)
	Set the camera's Up vector.
K_DEPRECATEDKFbxVector4	GetUpVector() const
	Get the current Up vector.
K_DEPRECATED void	SetDefaultCameraInterestPosition(constKFbxVector4&pPosition)
	Set the default point the camera is looking at.
K_DEPRECATEDKFbxVector4	GetDefaultCameraInterestPosition() const
	Return the camera interest to default coordinates.
K_DEPRECATED void	SetRoll(double pRoll)
	Set the camera roll angle.
K_DEPRECATED double	GetRoll() const
	Get the camera roll angle.
K_DEPRECATED void	SetTurnTable(double pTurnTable)
	Set the camera turntable angle.
K_DEPRECATED double	GetTurnTable() const
	Get the camera turntable angle.
K_DEPRECATED void	SetProjectionType(ECameraProjectionTypepProjectionType)
	Set the camera projection type.
K_DEPRECATEDECameraProjectionType	GetProjectionType() const
	Get the camera projection type.
Viewing Area Functions
enum	ECameraFormat
	Camera formats.More...
enum	ECameraAspectRatioMode
	Camera aspect ratio modes.More...
void	SetFormat(ECameraFormatpFormat)
	Set the camera format.
ECameraFormat	GetFormat() const
	Get the camera format.
void	SetAspect(ECameraAspectRatioModepRatioMode, double pWidth, double pHeight)
	Set the camera aspect.
ECameraAspectRatioMode	GetAspectRatioMode() const
	Get the camera aspect ratio mode.
K_DEPRECATED double	GetAspectWidth() const
	Get the aspect width.
K_DEPRECATED double	GetAspectHeight() const
	Get the aspect height.
void	SetPixelRatio(double pRatio)
	Set the pixel ratio.
double	GetPixelRatio() const
	Get the pixel ratio.
void	SetNearPlane(double pDistance)
	Set the near plane distance from the camera.
double	GetNearPlane() const
	Get the near plane distance from the camera.
void	SetFarPlane(double pDistance)
	Set the far plane distance from camera.
double	GetFarPlane() const
	Get the far plane distance from camera.
K_DEPRECATED void	SetMouseLock(bool pMouseLock)
	Set interactive camera lock flag.
K_DEPRECATED bool	GetMouseLock() const
	Get the camera lock flag.
Aperture and Film Functions
The aperture mode determines which values drive the camera aperture. When the aperture mode iseHORIZONTAL_AND_VERTICAL,eHORIZONTALoreVERTICAL, the field of view is used. When the aperture mode iseFOCAL_LENGTH, the focal length is used. It is possible to convert the aperture mode into field of view or vice versa using functions ComputeFieldOfView and ComputeFocalLength. These functions use the camera aperture width and height for their computation.
enum	ECameraApertureFormat
	Camera aperture formats.More...
enum	ECameraApertureMode
	Camera aperture modes.More...
enum	ECameraGateFit
	Camera gate fit modes.More...
void	SetApertureFormat(ECameraApertureFormatpFormat)
	Set the camera aperture format.
ECameraApertureFormat	GetApertureFormat() const
	Get the camera aperture format.
void	SetApertureMode(ECameraApertureModepMode)
	Set the camera aperture mode.
ECameraApertureMode	GetApertureMode() const
	Get the camera aperture mode.
void	SetApertureWidth(double pWidth)
	Set the camera aperture width in inches.
double	GetApertureWidth() const
	Get the camera aperture width in inches.
void	SetApertureHeight(double pHeight)
	Set the camera aperture height in inches.
double	GetApertureHeight() const
	Get the camera aperture height in inches.
void	SetSqueezeRatio(double pRatio)
	Set the squeeze ratio.
double	GetSqueezeRatio() const
	Get the camera squeeze ratio.
K_DEPRECATED void	SetOrthoZoom(const double&pOrthoZoom)
	Set the camera orthographic zoom.
K_DEPRECATED double	GetOrthoZoom() const
	Get the camera orthographic zoom.
K_DEPRECATED void	SetGateFit(constECameraGateFitpGateFit)
	Set the camera gate fit.
K_DEPRECATEDECameraGateFit	GetGateFit() const
	Get the camera gate fit.
double	ComputeFieldOfView(double pFocalLength) const
	Compute the angle of view based on the given focal length, the aperture width, and aperture height.
double	ComputeFocalLength(double pAngleOfView)
	Compute the focal length based on the given angle of view, the aperture width, and aperture height.
Background Functions
enum	ECameraBackgroundDisplayMode
	Background display modes.More...
enum	ECameraBackgroundDrawingMode
	Background drawing modes.More...
enum	ECameraBackgroundPlacementOptions
	Background placement options.More...
enum	ECameraBackgroundDistanceMode
	ECamerabackgroundDistanceMode Background distance modes.More...
void	SetBackgroundFileName(const char *pFileName)
	Set the associated background image file.
char const *	GetBackgroundFileName() const
	Get the background image file name.
void	SetBackgroundMediaName(const char *pFileName)
	Set the media name associated to the background image file.
char const *	GetBackgroundMediaName() const
	Get the media name associated to the background image file.
K_DEPRECATED void	SetBackgroundDisplayMode(ECameraBackgroundDisplayModepMode)
	Set the background display mode.
K_DEPRECATED ECameraBackgroundDisplayMode	GetBackgroundDisplayMode() const
	Get the background display mode.
K_DEPRECATED void	SetBackgroundDrawingMode(ECameraBackgroundDrawingModepMode)
	Set the background drawing mode.
K_DEPRECATED ECameraBackgroundDrawingMode	GetBackgroundDrawingMode() const
	Get the background drawing mode.
K_DEPRECATED void	SetForegroundMatteThresholdEnable(bool pEnable)
	Set the foreground matte threshold flag.
K_DEPRECATED bool	GetForegroundMatteThresholdEnable() const
	Get the foreground matte threshold flag.
K_DEPRECATED void	SetForegroundMatteThreshold(double pThreshold)
	Set foreground matte threshold.
K_DEPRECATED double	GetForegroundMatteThreshold() const
	Get foreground matte threshold.
K_DEPRECATED void	SetBackgroundPlacementOptions(kUInt pOptions)
	Set background placement options.
kUInt	GetBackgroundPlacementOptions() const
	Get background placement options.
K_DEPRECATED void	SetBackgroundDistanceMode(ECameraBackgroundDistanceModepMode)
	Set the background distance mode.
K_DEPRECATED ECameraBackgroundDistanceMode	GetBackgroundDistanceMode() const
	Get the background distance mode.
K_DEPRECATED void	SetBackgroundDistance(double pDistance)
	Set the background distance.
K_DEPRECATED double	GetBackgroundDistance() const
	Get the background distance.
Camera View Functions
It is the responsibility of the client application to perform the required tasks according to the state of the options that are either set or returned by these methods.
enum	ECameraSafeAreaStyle
	Camera safe area display styles.More...
K_DEPRECATED void	SetViewCameraInterest(bool pEnable)
	Change the camera interest visibility flag.
K_DEPRECATED bool	GetViewCameraInterest() const
	Get current visibility state of the camera interest.
K_DEPRECATED void	SetViewNearFarPlanes(bool pEnable)
	Change the camera near and far planes visibility flag.
K_DEPRECATED bool	GetViewNearFarPlanes() const
	Get current visibility state of the camera near and far planes.
K_DEPRECATED void	SetShowGrid(bool pEnable)
	Change the draw floor grid flag.
K_DEPRECATED bool	GetShowGrid() const
	Get current floor grid draw state.
K_DEPRECATED void	SetShowAxis(bool pEnable)
	Change the draw system axis flag.
K_DEPRECATED bool	GetShowAxis() const
	Get current system axis draw state.
K_DEPRECATED void	SetShowName(bool pEnable)
	Change the show camera name flag.
K_DEPRECATED bool	GetShowName() const
	Get current camera name show state.
K_DEPRECATED void	SetShowInfoOnMoving(bool pEnable)
	Change the show info on moving flag.
K_DEPRECATED bool	GetShowInfoOnMoving() const
	Get current info on moving show state.
K_DEPRECATED void	SetShowTimeCode(bool pEnable)
	Change the timecode show flag.
K_DEPRECATED bool	GetShowTimeCode() const
	Get current timecode show state.
K_DEPRECATED void	SetDisplaySafeArea(bool pEnable)
	Change the display camera safe area flag.
K_DEPRECATED bool	GetDisplaySafeArea() const
	Get current safe area display state.
K_DEPRECATED void	SetDisplaySafeAreaOnRender(bool pEnable)
	Change the display of the camera's safe area on render flag.
K_DEPRECATED bool	GetDisplaySafeAreaOnRender() const
	Get current safe area on render display state.
K_DEPRECATED void	SetSafeAreaStyle(ECameraSafeAreaStylepStyle)
	Set the safe area style.
K_DEPRECATEDECameraSafeAreaStyle	GetSafeAreaStyle() const
	Get the currently set safe area style.
K_DEPRECATED void	SetShowAudio(bool pEnable)
	Change the show audio flag.
K_DEPRECATED bool	GetShowAudio() const
	Get current audio show state.
K_DEPRECATED void	SetAudioColor(constKFbxColor&pColor)
	Set audio color.
K_DEPRECATEDKFbxColor	GetAudioColor() const
	Get audio color.
K_DEPRECATED void	SetUseFrameColor(bool pEnable)
	Change the use frame color flag.
K_DEPRECATED bool	GetUseFrameColor() const
	Get the use frame color state.
K_DEPRECATED void	SetFrameColor(constKFbxColor&pColor)
	Set frame color.
K_DEPRECATEDKFbxColor	GetFrameColor() const
	Get frame color.
Render Functions
It is the responsibility of the client application to perform the required tasks according to the state of the options that are either set or returned by these methods.
enum	ECameraRenderOptionsUsageTime
	Render options usage time.More...
enum	ECameraAntialiasingMethod
	Antialiasing methods.More...
enum	ECameraSamplingType
	Oversampling types.More...
enum	ECameraFocusDistanceSource
	Camera focus sources.More...
K_DEPRECATED void	SetRenderOptionsUsageTime(ECameraRenderOptionsUsageTimepUsageTime)
	Set the render options usage time.
K_DEPRECATED ECameraRenderOptionsUsageTime	GetRenderOptionsUsageTime() const
	Get the render options usage time.
K_DEPRECATED void	SetUseAntialiasing(bool pEnable)
	Change the use antialiasing flag.
K_DEPRECATED bool	GetUseAntialiasing() const
	Get the use antialiasing state.
K_DEPRECATED void	SetAntialiasingIntensity(double pIntensity)
	Set antialiasing intensity.
K_DEPRECATED double	GetAntialiasingIntensity() const
	Get the antialiasing intensity.
K_DEPRECATED void	SetAntialiasingMethod(ECameraAntialiasingMethodpMethod)
	Set antialiasing method.
K_DEPRECATED ECameraAntialiasingMethod	GetAntialiasingMethod() const
	Get antialiasing method.
K_DEPRECATED void	SetNumberOfSamples(int pNumberOfSamples)
	Set the number of samples used to process oversampling.
K_DEPRECATED int	GetNumberOfSamples() const
	Get the number of samples used to process oversampling.
K_DEPRECATED void	SetSamplingType(ECameraSamplingTypepType)
	Set sampling type.
K_DEPRECATEDECameraSamplingType	GetSamplingType() const
	Get sampling type.
K_DEPRECATED void	SetUseAccumulationBuffer(bool pUseAccumulationBuffer)
	Change the use accumulation buffer flag.
K_DEPRECATED bool	GetUseAccumulationBuffer() const
	Get the state of the use accumulation buffer flag.
K_DEPRECATED void	SetUseDepthOfField(bool pUseDepthOfField)
	Change use depth of field flag.
K_DEPRECATED bool	GetUseDepthOfField() const
	Get use depth of field state.
K_DEPRECATED void	SetFocusDistanceSource(ECameraFocusDistanceSourcepSource)
	Set source of camera focus distance.
K_DEPRECATED ECameraFocusDistanceSource	GetFocusDistanceSource() const
	Get source of camera focus distance.
K_DEPRECATED void	SetSpecificDistance(double pDistance)
	Set the focus distance of the lens in millimiters.
K_DEPRECATED double	GetSpecificDistance() const
	Get the focus distance of the lens in millimiters.
K_DEPRECATED void	SetFocusAngle(double pAngle)
	Set the focus angle in degrees.
K_DEPRECATED double	GetFocusAngle() const
	Get the focus angle in degrees.
Default Animation Values
These functions provide direct access to default animation values specific to a camera. Since the default animation values are found in the default take node of the associated node, these functions only work if the camera has been associated with a node.
K_DEPRECATED void	SetDefaultFieldOfView(double pFieldOfView)
	Set default field of view in degrees.
K_DEPRECATED double	GetDefaultFieldOfView() const
	Get default field of view.
K_DEPRECATED void	SetDefaultFieldOfViewX(double pFieldOfViewX)
	Set default field of view X.
K_DEPRECATED double	GetDefaultFieldOfViewX() const
	Get default field of view X.
K_DEPRECATED void	SetDefaultFieldOfViewY(double pFieldOfViewY)
	Set default field of view Y.
K_DEPRECATED double	GetDefaultFieldOfViewY() const
	Get default field of view Y.
K_DEPRECATED void	SetDefaultOpticalCenterX(double pOpticalCenterX)
	Set default optical center X, in pixels.
K_DEPRECATED double	GetDefaultOpticalCenterX() const
	Get default optical center X, in pixels.
K_DEPRECATED void	SetDefaultOpticalCenterY(double pOpticalCenterY)
	Set default optical center Y, in pixels.
K_DEPRECATED double	GetDefaultOpticalCenterY() const
	Get default optical center Y, in pixels.
K_DEPRECATED void	SetDefaultFocalLength(double pFocalLength)
	Set default focal length, in millimeters Use this function to set the default focal length when the camera aperture mode is set toeFOCAL_LENGTH.
K_DEPRECATED double	GetDefaultFocalLength() const
	Get default focal length, in millimeters Use this function to get the default focal length when the camera aperture mode is set toeFOCAL_LENGTH.
K_DEPRECATED void	SetDefaultRoll(double pRoll)
	Set default camera roll in degrees.
K_DEPRECATED double	GetDefaultRoll() const
	Get default camera roll in degrees.
K_DEPRECATED void	SetDefaultTurnTable(double pTurnTable)
	Set default turntable value in degrees.
K_DEPRECATED double	GetDefaultTurnTable() const
	Get default turntable in degrees.
K_DEPRECATED void	SetDefaultBackgroundColor(constKFbxColor&pColor)
	Set default background color.
K_DEPRECATEDKFbxColor	GetDefaultBackgroundColor() const
	Get default background color.
Obsolete Functions
These functions are obsolete since animated background color, animated field of view, and animated focal length are now supported.
K_DEPRECATED void	SetBackgroundColor(constKFbxColor&pColor)
	Set background color.
K_DEPRECATEDKFbxColor	GetBackgroundColor() const
	Get background color.
K_DEPRECATED void	SetAngleOfView(double pAngleOfView)
	Set the camera angle of view in degrees.
K_DEPRECATED double	GetAngleOfView() const
	Get the camera angle of view in degrees.
K_DEPRECATED void	SetFocalLength(double pFocalLength)
	Set the focal length of the camera in millimeters.
K_DEPRECATED double	GetFocalLength() const
	Get the camera focal length in millimeters.
Utility Functions.
bool	IsBoundingBoxInView(constKFbxMatrix&pWorldToScreen, constKFbxMatrix&pWorldToCamera, constKFbxVector4pPoints[8]) const
	Determine if the given bounding box is in the camera's view.
bool	IsPointInView(constKFbxMatrix&pWorldToScreen, constKFbxMatrix&pWorldToCamera, constKFbxVector4&pPoint) const
	Determine if the given 3d point is in the camera's view.
KFbxMatrix	ComputeWorldToScreen(int pPixelWidth, int pPixelHeight, constKFbxXMatrix&pWorldToCamera) const
	Compute world space to screen space transformation matrix.
KFbxMatrix	ComputePerspective(int pPixelWidth, int pPixelHeight, bool pIncludePostPerspective) const
	Compute the perspective matrix for this camera.
Public Member Functions
virtualEAttributeType	GetAttributeType() const
	Return the type of node attribute which is EAttributeType::eCAMERA.
void	Reset()
	Reset the camera to default values.
Public Attributes
KFbxTypedProperty<fbxDouble3>	Position
	This property handles the camera position (XYZ coordinates).
KFbxTypedProperty<fbxDouble3>	UpVector
	This property handles the camera Up Vector (XYZ coordinates).
KFbxTypedProperty<fbxDouble3>	InterestPosition
	This property handles the default point (XYZ coordinates) the camera is looking at.
KFbxTypedProperty<fbxDouble1>	Roll
	This property handles the camera roll angle in degree(s).
KFbxTypedProperty<fbxDouble1>	OpticalCenterX
	This property handles the camera optical center X, in pixels.
KFbxTypedProperty<fbxDouble1>	OpticalCenterY
	This property handles the camera optical center Y, in pixels.
KFbxTypedProperty<fbxDouble3>	BackgroundColor
	This property handles the camera RGB values of the background color.
KFbxTypedProperty<fbxDouble1>	TurnTable
	This property handles the camera turn table angle in degree(s).
KFbxTypedProperty<fbxBool1>	DisplayTurnTableIcon
	This property handles a flags that indicates if the camera displays the Turn Table icon or not.
KFbxTypedProperty<fbxBool1>	UseMotionBlur
	This property handles a flags that indicates if the camera uses motion blur or not.
KFbxTypedProperty<fbxBool1>	UseRealTimeMotionBlur
	This property handles a flags that indicates if the camera uses real time motion blur or not.
KFbxTypedProperty<fbxDouble1>	MotionBlurIntensity
	This property handles the camera motion blur intensity (in pixels).
KFbxTypedProperty <ECameraAspectRatioMode>	AspectRatioMode
	This property handles the camera aspect ratio mode.
KFbxTypedProperty<fbxDouble1>	AspectWidth
	This property handles the camera aspect width.
KFbxTypedProperty<fbxDouble1>	AspectHeight
	This property handles the camera aspect height.
KFbxTypedProperty<fbxDouble1>	PixelAspectRatio
	This property handles the pixel aspect ratio.
KFbxTypedProperty <ECameraApertureMode>	ApertureMode
	This property handles the aperture mode.
KFbxTypedProperty<ECameraGateFit>	GateFit
	This property handles the gate fit mode.
KFbxTypedProperty<fbxDouble1>	FieldOfView
	This property handles the field of view in degrees.
KFbxTypedProperty<fbxDouble1>	FieldOfViewX
	This property handles the X (horizontal) field of view in degrees.
KFbxTypedProperty<fbxDouble1>	FieldOfViewY
	This property handles the Y (vertical) field of view in degrees.
KFbxTypedProperty<fbxDouble1>	FocalLength
	This property handles the focal length (in millimeters).
KFbxTypedProperty<ECameraFormat>	CameraFormat
	This property handles the camera format.
KFbxTypedProperty<fbxBool1>	UseFrameColor
	This property stores a flag that indicates to use or not a color for the frame.
KFbxTypedProperty<fbxDouble3>	FrameColor
	This property handles the fame color.
KFbxTypedProperty<fbxBool1>	ShowName
	This property handles the show name flag.
KFbxTypedProperty<fbxBool1>	ShowInfoOnMoving
	This property handles the show info on moving flag.
KFbxTypedProperty<fbxBool1>	ShowGrid
	This property handles the draw floor grid flag.
KFbxTypedProperty<fbxBool1>	ShowOpticalCenter
	This property handles the show optical center flag.
KFbxTypedProperty<fbxBool1>	ShowAzimut
	This property handles the show axis flag.
KFbxTypedProperty<fbxBool1>	ShowTimeCode
	This property handles the show time code flag.
KFbxTypedProperty<fbxBool1>	ShowAudio
	This property handles the show audio flag.
KFbxTypedProperty<fbxDouble3>	AudioColor
	This property handles the show audio flag.
KFbxTypedProperty<fbxDouble1>	NearPlane
	This property handles the near plane distance.
KFbxTypedProperty<fbxDouble1>	FarPlane
	This property handles the far plane distance.
KFbxTypedProperty<fbxBool1>	AutoComputeClipPlanes
	This property indicates that the clip planes should be automatically computed.
KFbxTypedProperty<fbxDouble1>	FilmWidth
	This property handles the film aperture width (in inches).
KFbxTypedProperty<fbxDouble1>	FilmHeight
	This property handles the film aperture height (in inches).
KFbxTypedProperty<fbxDouble1>	FilmAspectRatio
	This property handles the film aperture aspect ratio.
KFbxTypedProperty<fbxDouble1>	FilmSqueezeRatio
	This property handles the film aperture squeeze ratio.
KFbxTypedProperty <ECameraApertureFormat>	FilmFormat
	This property handles the film aperture format.
KFbxTypedProperty<fbxDouble2>	FilmOffset
	This property handles the offset from the center of the film aperture, defined by the film height and film width.
KFbxTypedProperty<fbxBool1>	ViewFrustum
	This property handles the view frustrum flag.
KFbxTypedProperty<fbxBool1>	ViewFrustumNearFarPlane
	This property handles the view frustrum near and far plane flag.
KFbxTypedProperty <ECameraBackgroundDisplayMode>	ViewFrustumBackPlaneMode
	This property handles the view frustrum back plane mode.
KFbxTypedProperty<fbxDouble1>	BackPlaneDistance
	This property handles the view frustrum back plane distance.
KFbxTypedProperty <ECameraBackgroundDistanceMode>	BackPlaneDistanceMode
	This property handles the view frustrum back plane distance mode.
KFbxTypedProperty<fbxBool1>	ViewCameraToLookAt
	This property handles the view camera to look at flag.
KFbxTypedProperty<fbxBool1>	LockMode
	This property handles the lock mode.
KFbxTypedProperty<fbxBool1>	LockInterestNavigation
	This property handles the lock interest navigation flag.
KFbxTypedProperty<fbxBool1>	FitImage
	This property handles the fit image flag.
KFbxTypedProperty<fbxBool1>	Crop
	This property handles the crop flag.
KFbxTypedProperty<fbxBool1>	Center
	This property handles the center flag.
KFbxTypedProperty<fbxBool1>	KeepRatio
	This property handles the keep ratio flag.
KFbxTypedProperty <ECameraBackgroundDrawingMode>	BackgroundMode
	This property handles the background mode flag.
KFbxTypedProperty<fbxDouble1>	BackgroundAlphaTreshold
	This property handles the background alpha threshold value.
KFbxTypedProperty<fbxBool1>	FrontPlateFitImage
	This property handles the fit image for front plate flag.
KFbxTypedProperty<fbxBool1>	FrontPlateCrop
	This property handles the front plane crop flag.
KFbxTypedProperty<fbxBool1>	FrontPlateCenter
	This property handles the front plane center flag.
KFbxTypedProperty<fbxBool1>	FrontPlateKeepRatio
	This property handles the front plane keep ratio flag.
KFbxTypedProperty<fbxBool1>	ShowFrontPlate
	This property handles the front plane show flag.
KFbxTypedProperty <ECameraBackgroundDisplayMode>	ViewFrustumFrontPlaneMode
	This property handles the view frustrum front plane mode.
KFbxTypedProperty<fbxDouble1>	FrontPlaneDistance
	This property handles the view frustrum front plane distance.
KFbxTypedProperty <ECameraBackgroundDistanceMode>	FrontPlaneDistanceMode
	This property handles the view frustrum front plane distance mode.
KFbxTypedProperty<fbxDouble1>	ForegroundAlpha
	This property handles the foreground alpha value.
KFbxTypedProperty<fbxReference>	ForegroundTexture
	This property has the foreground textures connected to it.
KFbxTypedProperty<fbxReference>	BackgroundTexture
	This property has the background textures connected to it.
KFbxTypedProperty<fbxBool1>	DisplaySafeArea
	This property handles the display safe area flag.
KFbxTypedProperty<fbxBool1>	DisplaySafeAreaOnRender
	This property handles the display safe area on render flag.
KFbxTypedProperty <ECameraSafeAreaStyle>	SafeAreaDisplayStyle
	This property handles the display safe area display style.
KFbxTypedProperty<fbxDouble1>	SafeAreaAspectRatio
	This property handles the display safe area aspect ratio.
KFbxTypedProperty<fbxBool1>	Use2DMagnifierZoom
	This property handles the use 2d magnifier zoom flag.
KFbxTypedProperty<fbxDouble1>	_2DMagnifierZoom
	This property handles the 2d magnifier zoom value.
KFbxTypedProperty<fbxDouble1>	_2DMagnifierX
	This property handles the 2d magnifier X value.
KFbxTypedProperty<fbxDouble1>	_2DMagnifierY
	This property handles the 2d magnifier Y value.
KFbxTypedProperty <ECameraProjectionType>	ProjectionType
	This property handles the projection type.
KFbxTypedProperty<fbxDouble1>	OrthoZoom
	This property handles the orthographic zoom.
KFbxTypedProperty<fbxBool1>	UseRealTimeDOFAndAA
	This property handles the use real time DOF and AA flag.
KFbxTypedProperty<fbxBool1>	UseDepthOfField
	This property handles the use depth of field flag.
KFbxTypedProperty <ECameraFocusDistanceSource>	FocusSource
	This property handles the focus source.
KFbxTypedProperty<fbxDouble1>	FocusAngle
	This property handles the focus angle (in degrees).
KFbxTypedProperty<fbxDouble1>	FocusDistance
	This property handles the focus distance.
KFbxTypedProperty<fbxBool1>	UseAntialiasing
	This property handles the use anti aliasing flag.
KFbxTypedProperty<fbxDouble1>	AntialiasingIntensity
	This property handles the anti aliasing intensity.
KFbxTypedProperty <ECameraAntialiasingMethod>	AntialiasingMethod
	This property handles the anti aliasing method.
KFbxTypedProperty<fbxBool1>	UseAccumulationBuffer
	This property handles the use accumulation buffer flag.
KFbxTypedProperty<fbxInteger1>	FrameSamplingCount
	This property handles the frame sampling count.
KFbxTypedProperty <ECameraSamplingType>	FrameSamplingType
	This property handles the frame sampling type.

Member Enumeration Documentation

enumECameraProjectionType

Camera projection types.

Camera projection types.

• ePERSPECTIVE
• eORTHOGONAL

  Remarks:

  By default, the camera projection type is set to ePERSPECTIVE. If the camera projection type is set to eORTHOGONAL, the following options are not relevant:

  • aperture format
  • aperture mode
  • aperture width and height
  • angle of view/focal length
  • squeeze ratio

Definition at line189of filekfbxcamera.h.

enumECameraFormat

Camera formats.

• eCUSTOM_FORMAT
• eD1_NTSC
• eNTSC
• ePAL
• eD1_PAL
• eHD
• e640x480
• e320x200
• e320x240
• e128x128
• eFULL_SCREEN

Definition at line231of filekfbxcamera.h.

enumECameraAspectRatioMode

Camera aspect ratio modes.

• eWINDOW_SIZE
• eFIXED_RATIO
• eFIXED_RESOLUTION
• eFIXED_WIDTH
• eFIXED_HEIGHT

Definition at line266of filekfbxcamera.h.

enumECameraApertureFormat

Camera aperture formats.

• eCUSTOM_APERTURE_FORMAT
• e16MM_THEATRICAL
• eSUPER_16MM
• e35MM_ACADEMY
• e35MM_TV_PROJECTION
• e35MM_FULL_APERTURE
• e35MM_185_PROJECTION
• e35MM_ANAMORPHIC
• e70MM_PROJECTION
• eVISTAVISION
• eDYNAVISION
• eIMAX

Definition at line395of filekfbxcamera.h.

enumECameraApertureMode

Camera aperture modes.

The aperture mode determines which values drive the camera aperture. If the aperture mode iseHORIZONTAL_AND_VERTICAL,eHORIZONTAL, oreVERTICAL, then the field of view is used. If the aperture mode iseFOCAL_LENGTH, then the focal length is used.

• eHORIZONTAL_AND_VERTICAL
• eHORIZONTAL
• eVERTICAL
• eFOCAL_LENGTH

Definition at line430of filekfbxcamera.h.

enumECameraGateFit

Camera gate fit modes.

• eNO_FITNo resoluton gate fit.
• eVERTICAL_FITFit the resolution gate vertically within the film gate.
• eHORIZONTAL_FITFit the resolution gate horizontally within the film gate.
• eFILL_FITFit the resolution gate within the film gate.
• eOVERSCAN_FITFit the film gate within the resolution gate.
• eSTRETCH_FITFit the resolution gate to the film gate.

Definition at line510of filekfbxcamera.h.

enumECameraBackgroundDisplayMode

Background display modes.

• eDISABLED
• eALWAYS
• eWHEN_MEDIA

Definition at line593of filekfbxcamera.h.

enumECameraBackgroundDrawingMode

Background drawing modes.

• eBACKGROUNDImage is drawn behind models.
• eFOREGROUNDImage is drawn in front of models based on alpha channel.
• eBACKGROUND_AND_FOREGROUNDImage is drawn behind and in front of models depending on alpha channel.

Definition at line621of filekfbxcamera.h.

enumECameraBackgroundPlacementOptions

Background placement options.

• eFIT
• eCENTER
• eKEEP_RATIO
• eCROP

Definition at line688of filekfbxcamera.h.

enumECameraBackgroundDistanceMode

ECamerabackgroundDistanceMode Background distance modes.

• eRELATIVE_TO_INTEREST
• eABSOLUTE_FROM_CAMERA

Definition at line710of filekfbxcamera.h.

enumECameraSafeAreaStyle

Camera safe area display styles.

• eROUND
• eSQUARE

Definition at line906of filekfbxcamera.h.

enumECameraRenderOptionsUsageTime

Render options usage time.

• eINTERACTIVE
• eAT_RENDER

Definition at line1005of filekfbxcamera.h.

enumECameraAntialiasingMethod

Antialiasing methods.

• eOVERSAMPLING_ANTIALIASING
• eHARDWARE_ANTIALIASING

Definition at line1067of filekfbxcamera.h.

enumECameraSamplingType

Oversampling types.

• eUNIFORM
• eSTOCHASTIC

Definition at line1111of filekfbxcamera.h.

enumECameraFocusDistanceSource

Camera focus sources.

• eCAMERA_INTEREST
• eSPECIFIC_DISTANCE

Definition at line1171of filekfbxcamera.h.

Member Function Documentation

virtualEAttributeTypeGetAttributeType

(

)

const[virtual]

Return the type of node attribute which is EAttributeType::eCAMERA.

Reimplemented fromKFbxNodeAttribute.

void Reset

(

)

Reset the camera to default values.

K_DEPRECATED void SetPosition

(

constKFbxVector4&

pPosition

)

Set the default XYZ camera position.

Parameters:

pPosition

X, Y and Z values of the camera position, expressed as a vector.

Remarks:

If this attribute is not yet attached to a node, this method does nothing.

This function is deprecated. Use property Position.Set(pPosition) instead.

K_DEPRECATEDKFbxVector4GetPosition

(

)

const

Get the default position of the camera.

Returns:

The X, Y and Z values of the default position of the camera.

Remarks:

If this attribute is not attached to a node yet, this method will return 0,0,0.

This function is deprecated. Use property Position.Get() instead.

K_DEPRECATED void SetUpVector

(

constKFbxVector4&

pVector

)

Set the camera's Up vector.

Parameters:

pVector

The X, Y and Z values for the Up vector.

Remarks:

This function is deprecated. Use property UpVector.Set(pVector) instead.

K_DEPRECATEDKFbxVector4GetUpVector

(

)

const

Get the current Up vector.

Returns:

The X, Y and Z values of the currently set Up vector.

Remarks:

This function is deprecated. Use property UpVector.Get() instead.

K_DEPRECATED void SetDefaultCameraInterestPosition

(

constKFbxVector4&

pPosition

)

Set the default point the camera is looking at.

Parameters:

pPosition

X, Y and Z values of the camera interest point.

Remarks:

During the computations of the camera position and orientation, the default camera interest position is overridden by the position of a valid target in the parent node.

This function is deprecated. Use property InterestPosition.Set(pPosition) instead.

K_DEPRECATEDKFbxVector4GetDefaultCameraInterestPosition

(

)

const

Return the camera interest to default coordinates.

Returns:

The X,Y and Z values of the default interest point.

Remarks:

During the computations of the camera position and orientation, the default camera interest position is overridden by the position of a valid target in the parent node.

This function is deprecated. Use property InterestPosition.Get() instead.

K_DEPRECATED void SetRoll

(

double

pRoll

)

Set the camera roll angle.

Parameters:

pRoll

The roll angle in degrees.

Remarks:

This function is deprecated. Use property Roll.Set(pRoll) instead.

K_DEPRECATED double GetRoll

(

)

const

Get the camera roll angle.

Returns:

The roll angle in degrees.

Remarks:

This function is deprecated. Use property Roll.Get() instead.

K_DEPRECATED void SetTurnTable

(

double

pTurnTable

)

Set the camera turntable angle.

Parameters:

pTurnTable

The turntable angle in degrees.

Remarks:

This function is deprecated. Use property TurnTable.Set(pTurnTable) instead.

K_DEPRECATED double GetTurnTable

(

)

const

Get the camera turntable angle.

Returns:

The turntable angle in degrees.

Remarks:

This function is deprecated. Use property TurnTable.Get() instead.

K_DEPRECATED void SetProjectionType

(

ECameraProjectionType

pProjectionType

)

Set the camera projection type.

Parameters:

pProjectionType

The camera projection identifier.

Remarks:

This function is deprecated. Use property ProjectionType.Set(pProjectionType) instead.

K_DEPRECATEDECameraProjectionTypeGetProjectionType

(

)

const

Get the camera projection type.

Returns:

The camera's current projection identifier.

Remarks:

This function is deprecated. Use property ProjectionType.Get() instead.

void SetFormat

(

ECameraFormat

pFormat

)

Set the camera format.

Parameters:

pFormat

The camera format identifier.

Remarks:

Changing the camera format sets the camera aspect ratio mode to eFIXED_RESOLUTION and modifies the aspect width size, height size, and pixel ratio accordingly.

ECameraFormatGetFormat

(

)

const

Get the camera format.

Returns:

The current camera format identifier.

void SetAspect	(	ECameraAspectRatioMode	pRatioMode,
		double	pWidth,
		double	pHeight
	)

Set the camera aspect.

Parameters:

	pRatioMode	Camera aspect ratio mode.
	pWidth	Camera aspect width, must be a positive value.
	pHeight	Camera aspect height, must be a positive value.

Remarks:

Changing the camera aspect sets the camera format to eCustom.

• If the ratio mode is eWINDOW_SIZE, both width and height values aren't relevant.
• If the ratio mode is eFIXED_RATIO, the height value is set to 1.0 and the width value is relative to the height value.
• If the ratio mode is eFIXED_RESOLUTION, both width and height values are in pixels.
• If the ratio mode is eFIXED_WIDTH, the width value is in pixels and the height value is relative to the width value.
• If the ratio mode is eFIXED_HEIGHT, the height value is in pixels and the width value is relative to the height value.

ECameraAspectRatioModeGetAspectRatioMode

(

)

const

Get the camera aspect ratio mode.

Returns:

The current aspect ratio identifier.

K_DEPRECATED double GetAspectWidth

(

)

const

Get the aspect width.

Returns:

The aspect width value or an undefined value if aspect ratio mode is set to eWINDOW_SIZE.

Remarks:

This function is deprecated. Use property AspectWidth.Get() instead.

K_DEPRECATED double GetAspectHeight

(

)

const

Get the aspect height.

Returns:

The aspect height value or an undefined value if aspect ratio mode is set to eWINDOW_SIZE.

Remarks:

This function is deprecated. Use property AspectHeight.Get() instead.

void SetPixelRatio

(

double

pRatio

)

Set the pixel ratio.

Parameters:

pRatio

The pixel ratio value.

Remarks:

The value must be a positive number. Comprised between 0.05 and 20.0. Values outside these limits will be clamped. Changing the pixel ratio sets the camera format to eCUSTOM_FORMAT.

double GetPixelRatio

(

)

const

Get the pixel ratio.

Returns:

The current camera's pixel ratio value.

void SetNearPlane

(

double

pDistance

)

Set the near plane distance from the camera.

The near plane is the minimum distance to render a scene on the camera display.

Parameters:

pDistance

The near plane distance value.

Remarks:

The near plane value is limited to the range [0.001, 600000.0] and must be inferior to the far plane value.

double GetNearPlane

(

)

const

Get the near plane distance from the camera.

The near plane is the minimum distance to render a scene on the camera display.

Returns:

The near plane value.

void SetFarPlane

(

double

pDistance

)

Set the far plane distance from camera.

The far plane is the maximum distance to render a scene on the camera display.

Parameters:

pDistance

The far plane distance value.

Remarks:

The far plane value is limited to the range [0.001, 600000.0] and must be superior to the near plane value.

double GetFarPlane

(

)

const

Get the far plane distance from camera.

The far plane is the maximum distance to render a scene on the camera display.

Returns:

The far plane value.

K_DEPRECATED void SetMouseLock

(

bool

pMouseLock

)

Set interactive camera lock flag.

Parameters:

pMouseLock

Iftrue, disable modifications of the view area controls using mouse and keyboard commands.

Remarks:

It is the responsibility of the client application to perform the required tasks according to the state of this flag.

This function is deprecated. Use property LockMode.Set(pMouseLock) instead.

K_DEPRECATED bool GetMouseLock

(

)

const

Get the camera lock flag.

Returns:

trueIf modifications of the view area controls using mouse and keyboard commands are disabled.

Remarks:

It is the responsibility of the client application to perform the required tasks according to the state of this flag.

This function is deprecated. Use property LockMode.Get() instead.

void SetApertureFormat

(

ECameraApertureFormat

pFormat

)

Set the camera aperture format.

Parameters:

pFormat

The camera aperture format identifier.

Remarks:

Changing the aperture format modifies the aperture width, height, and squeeze ratio accordingly.

ECameraApertureFormatGetApertureFormat

(

)

const

Get the camera aperture format.

Returns:

The camera's current aperture format identifier.

void SetApertureMode

(

ECameraApertureMode

pMode

)

Set the camera aperture mode.

Parameters:

pMode

The camera aperture mode identifier.

ECameraApertureModeGetApertureMode

(

)

const

Get the camera aperture mode.

Returns:

The camera's current aperture mode identifier.

void SetApertureWidth

(

double

pWidth

)

Set the camera aperture width in inches.

Parameters:

pWidth

The aperture width value.

Remarks:

Must be a positive value. The minimum accepted value is 0.0001. Changing the aperture width sets the camera aperture format to eCUSTOM_FORMAT.

double GetApertureWidth

(

)

const

Get the camera aperture width in inches.

Returns:

The camera's current aperture width value in inches.

void SetApertureHeight

(

double

pHeight

)

Set the camera aperture height in inches.

Parameters:

pHeight

The aperture height value.

Remarks:

Must be a positive value. The minimum accepted value is 0.0001. Changing the aperture height sets the camera aperture format to eCUSTOM_FORMAT.

double GetApertureHeight

(

)

const

Get the camera aperture height in inches.

Returns:

The camera's current aperture height value in inches.

void SetSqueezeRatio

(

double

pRatio

)

Set the squeeze ratio.

Parameters:

pRatio

The sqeeze ratio value.

Remarks:

Must be a positive value. The minimum accepted value is 0.0001. Changing the squeeze ratio sets the camera aperture format to eCUSTOM_FORMAT.

double GetSqueezeRatio

(

)

const

Get the camera squeeze ratio.

Returns:

The camera's current squeeze ratio value.

K_DEPRECATED void SetOrthoZoom

(

const double&

pOrthoZoom

)

Set the camera orthographic zoom.

Parameters:

pOrthoZoom

This parameter's default value is 1.0.

Remarks:

This parameter is not used if the camera is not orthographic.

This function is deprecated. Use property OrthoZoom.Set(pOrthoZoom) instead.

K_DEPRECATED double GetOrthoZoom

(

)

const

Get the camera orthographic zoom.

Returns:

The camera's current orthographic zoom.

Remarks:

This function is deprecated. Use property OrthoZoom.Get() instead.

K_DEPRECATED void SetGateFit

(

constECameraGateFit

pGateFit

)

Set the camera gate fit.

Parameters:

pGateFit

This parameter's default value is eNO_FIT.

Remarks:

This function is deprecated. Use property GateFit.Set(pGateFit) instead.

K_DEPRECATEDECameraGateFitGetGateFit

(

)

const

Get the camera gate fit.

Returns:

The camera's current gate fit.

Remarks:

This function is deprecated. Use property GateFit.Get() instead.

double ComputeFieldOfView

(

double

pFocalLength

)

const

Compute the angle of view based on the given focal length, the aperture width, and aperture height.

Parameters:

pFocalLength

The focal length in millimeters

Returns:

The computed angle of view in degrees

double ComputeFocalLength

(

double

pAngleOfView

)

Compute the focal length based on the given angle of view, the aperture width, and aperture height.

Parameters:

pAngleOfView

The angle of view in degrees

Returns:

The computed focal length in millimeters

void SetBackgroundFileName

(

const char *

pFileName

)

Set the associated background image file.

Parameters:

pFileName

The path of the background image file.

Remarks:

The background image file name must be valid.

char const* GetBackgroundFileName

(

)

const

Get the background image file name.

Returns:

Pointer to the background filename string orNULLif not set.

void SetBackgroundMediaName

(

const char *

pFileName

)

Set the media name associated to the background image file.

Parameters:

pFileName

The media name of the background image file.

Remarks:

The media name is a unique name used to identify the background image file.

char const* GetBackgroundMediaName

(

)

const

Get the media name associated to the background image file.

Returns:

Pointer to the media name string orNULLif not set.

K_DEPRECATED void SetBackgroundDisplayMode

(

ECameraBackgroundDisplayMode

pMode

)

Set the background display mode.

Parameters:

pMode

The background display mode identifier.

Remarks:

This function is deprecated. Use property ViewFrustumBackPlaneMode.Set(pMode) instead.

K_DEPRECATEDECameraBackgroundDisplayModeGetBackgroundDisplayMode

(

)

const

Get the background display mode.

Returns:

The currently set background display mode identifier.

Remarks:

This function is deprecated. Use property ViewFrustumBackPlaneMode.Get() instead.

K_DEPRECATED void SetBackgroundDrawingMode

(

ECameraBackgroundDrawingMode

pMode

)

Set the background drawing mode.

Parameters:

pMode

The background drawing mode identifier.

Remarks:

This function is deprecated. Use property BackgroundMode.Set(pMode) instead.

K_DEPRECATEDECameraBackgroundDrawingModeGetBackgroundDrawingMode

(

)

const

Get the background drawing mode.

Returns:

The currently set background drawing mode identifier.

Remarks:

This function is deprecated. Use property BackgroundMode.Get() instead.

K_DEPRECATED void SetForegroundMatteThresholdEnable

(

bool

pEnable

)

Set the foreground matte threshold flag.

Parameters:

pEnable

Iftrueenable foreground matte threshold.

Remarks:

It is the responsibility of the client application to perform the required tasks according to the state of this flag.

This function is deprecated. Use property ForegroundTransparent.Set(pEnable) instead.

K_DEPRECATED bool GetForegroundMatteThresholdEnable

(

)

const

Get the foreground matte threshold flag.

Returns:

trueif foreground matte threshold is enabled, otherwisefalse.

Remarks:

It is the responsibility of the client application to perform the required tasks according to the state of this flag.

This function is deprecated. Use property ForegroundTransparent.Get() instead.

K_DEPRECATED void SetForegroundMatteThreshold

(

double

pThreshold

)

Set foreground matte threshold.

Parameters:

pThreshold

Threshold value on a range from 0.0 to 1.0.

Remarks:

This option is only relevant if the background drawing mode is set to eFOREGROUND or eBACKGROUND_AND_FOREGROUND.

This function is deprecated. Use property BackgroundAlphaTreshold.Set(pThreshold) instead.

K_DEPRECATED double GetForegroundMatteThreshold

(

)

const

Get foreground matte threshold.

Returns:

Threshold value on a range from 0.0 to 1.0.

Remarks:

This option is only relevant if the background drawing mode is set to eFOREGROUND or eBACKGROUND_AND_FOREGROUND.

This function is deprecated. Use property BackgroundAlphaTreshold.Get() instead.

K_DEPRECATED void SetBackgroundPlacementOptions

(

kUInt

pOptions

)

Set background placement options.

Parameters:

pOptions

Bitwise concatenation of one or more background placement options.

kUInt GetBackgroundPlacementOptions

(

)

const

Get background placement options.

Returns:

The bitwise concatenation of the currently set background placement options.

K_DEPRECATED void SetBackgroundDistanceMode

(

ECameraBackgroundDistanceMode

pMode

)

Set the background distance mode.

Parameters:

pMode

The background distance mode identifier.

Remarks:

This function is deprecated. Use property BackPlaneDistanceMode.Set(pMode) instead.

K_DEPRECATEDECameraBackgroundDistanceModeGetBackgroundDistanceMode

(

)

const

Get the background distance mode.

Returns:

Return the background distance mode identifier.

Remarks:

This function is deprecated. Use property BackPlaneDistanceMode.Get() instead.

K_DEPRECATED void SetBackgroundDistance

(

double

pDistance

)

Set the background distance.

Parameters:

pDistance

Distance of the background plane. This value can be either relative to the camera interest point or absolute from the camera position.

Remarks:

This function is deprecated. Use property BackPlaneDistance.Set(pDistance) instead.

K_DEPRECATED double GetBackgroundDistance

(

)

const

Get the background distance.

Returns:

The distance of the background plane.

Remarks:

This function is deprecated. Use property BackPlaneDistance.Get() instead.

K_DEPRECATED void SetViewCameraInterest

(

bool

pEnable

)

Change the camera interest visibility flag.

Parameters:

pEnable

Set totrueif the camera interest is shown.

Remarks:

This function is deprecated. Use property ViewCameraToLookAt.Set(pEnable) instead.

K_DEPRECATED bool GetViewCameraInterest

(

)

const

Get current visibility state of the camera interest.

Returns:

trueif the camera interest is shown, orfalseif hidden.

Remarks:

This function is deprecated. Use property ViewCameraToLookAt.Get() instead.

K_DEPRECATED void SetViewNearFarPlanes

(

bool

pEnable

)

Change the camera near and far planes visibility flag.

Parameters:

pEnable

Set totrueif the near and far planes are shown.

Remarks:

This function is deprecated. Use property ViewFrustumNearFarPlane.Set(pEnable) instead.

K_DEPRECATED bool GetViewNearFarPlanes

(

)

const

Get current visibility state of the camera near and far planes.

Returns:

trueif the near and far planes are shown.

Remarks:

This function is deprecated. Use property ViewFrustumNearFarPlane.Get() instead.

K_DEPRECATED void SetShowGrid

(

bool

pEnable

)

Change the draw floor grid flag.

Parameters:

pEnable

Set totrueif the floor grid is shown.

Remarks:

This function is deprecated. Use property ShowGrid.Set(pEnable) instead.

K_DEPRECATED bool GetShowGrid

(

)

const

Get current floor grid draw state.

Returns:

trueif the floor grid is shown, orfalseif hidden.

Remarks:

This function is deprecated. Use property ShowGrid.Get() instead.

K_DEPRECATED void SetShowAxis

(

bool

pEnable

)

Change the draw system axis flag.

Parameters:

pEnable

Set totrueif the system axis is shown.

Remarks:

This function is deprecated. Use property ShowAzimut.Set(pEnable) instead.

K_DEPRECATED bool GetShowAxis

(

)

const

Get current system axis draw state.

Returns:

trueif the system axis is shown, orfalseif hidden.

Remarks:

This function is deprecated. Use property ShowAzimut.Get() instead.

K_DEPRECATED void SetShowName

(

bool

pEnable

)

Change the show camera name flag.

Parameters:

pEnable

Set totrueif the camera name is shown.

Remarks:

This function is deprecated. Use property ShowName.Set(pEnable) instead.

K_DEPRECATED bool GetShowName

(

)

const

Get current camera name show state.

Returns:

trueif the camera name is shown, orfalseif hidden.

Remarks:

This function is deprecated. Use property ShowName.Get() instead.

K_DEPRECATED void SetShowInfoOnMoving

(

bool

pEnable

)

Change the show info on moving flag.

Parameters:

pEnable

Set totrueif info on moving is shown.

Remarks:

This function is deprecated. Use property ShowInfoOnMoving.Set(pEnable) instead.

K_DEPRECATED bool GetShowInfoOnMoving

(

)

const

Get current info on moving show state.

Returns:

trueif info on moving is shown, orfalseif hidden.

Remarks:

This function is deprecated. Use property ShowInfoOnMoving.Get() instead.

K_DEPRECATED void SetShowTimeCode

(

bool

pEnable

)

Change the timecode show flag.

Parameters:

pEnable

Set totrueif the timecode is shown.

Remarks:

This function is deprecated. Use property ShowTimeCode.Set(pEnable) instead.

K_DEPRECATED bool GetShowTimeCode

(

)

const

Get current timecode show state.

Returns:

trueif the timecode is shown, orfalseif hidden.

Remarks:

This function is deprecated. Use property ShowTimeCode.Get() instead.

K_DEPRECATED void SetDisplaySafeArea

(

bool

pEnable

)

Change the display camera safe area flag.

Parameters:

pEnable

Set totrueif the safe area is shown.

Remarks:

This function is deprecated. Use property DisplaySafeArea.Set(pEnable) instead.

K_DEPRECATED bool GetDisplaySafeArea

(

)

const

Get current safe area display state.

Returns:

trueif safe area is shown, orfalseif hidden.

Remarks:

This function is deprecated. Use property DisplaySafeArea.Get() instead.

K_DEPRECATED void SetDisplaySafeAreaOnRender

(

bool

pEnable

)

Change the display of the camera's safe area on render flag.

Parameters:

pEnable

Set totrueif safe area is shown on render.

Remarks:

This function is deprecated. Use property DisplaySafeAreaOnRender.Set(pEnable) instead.

K_DEPRECATED bool GetDisplaySafeAreaOnRender

(

)

const

Get current safe area on render display state.

Returns:

trueif the safe area is shown on render, orfalseif it is hidden on render.

Remarks:

This function is deprecated. Use property DisplaySafeAreaOnRender.Get() instead.

K_DEPRECATED void SetSafeAreaStyle

(

ECameraSafeAreaStyle

pStyle

)

Set the safe area style.

Parameters:

pStyle

Safe area style identifier.

Remarks:

This function is deprecated. Use property SafeAreaDisplayStyle.Set(pStyle) instead.

K_DEPRECATEDECameraSafeAreaStyleGetSafeAreaStyle

(

)

const

Get the currently set safe area style.

Returns:

Safe area style identifier.

Remarks:

This function is deprecated. Use property SafeAreaDisplayStyle.Get() instead.

K_DEPRECATED void SetShowAudio

(

bool

pEnable

)

Change the show audio flag.

Parameters:

pEnable

Set totrueif audio waveform is shown.

Remarks:

This function is deprecated. Use property ShowAudio.Set(pEnable) instead.

K_DEPRECATED bool GetShowAudio

(

)

const

Get current audio show state.

Returns:

trueif audio is shown, orfalseif hidden.

Remarks:

This function is deprecated. Use property ShowAudio.Get() instead.

K_DEPRECATED void SetAudioColor

(

constKFbxColor&

pColor

)

Set audio color.

Parameters:

pColor

RGB values for the audio waveform color.

Remarks:

This function is deprecated. Use property AudioColor.Set(pColor) instead.

K_DEPRECATEDKFbxColorGetAudioColor

(

)

const

Get audio color.

Returns:

Currently set audio waveform color.

Remarks:

This function is deprecated. Use property AudioColor.Get() instead.

K_DEPRECATED void SetUseFrameColor

(

bool

pEnable

)

Change the use frame color flag.

Parameters:

pEnable

Set totrueif the frame color is used.

Remarks:

This function is deprecated. Use property UseFrameColor.Set(pEnable) instead.

K_DEPRECATED bool GetUseFrameColor

(

)

const

Get the use frame color state.

Returns:

trueif the frame color is used, orfalseotherwise.

Remarks:

This function is deprecated. Use property UseFrameColor.Get() instead.

K_DEPRECATED void SetFrameColor

(

constKFbxColor&

pColor

)

Set frame color.

Parameters:

pColor

RGB values for the frame color.

Remarks:

This function is deprecated. Use property FrameColor.Set(pEnable) instead.

K_DEPRECATEDKFbxColorGetFrameColor

(

)

const

Get frame color.

Returns:

Currently set frame color.

Remarks:

This function is deprecated. Use property FrameColor.Set(pEnable) instead.

K_DEPRECATED void SetRenderOptionsUsageTime

(

ECameraRenderOptionsUsageTime

pUsageTime

)

Set the render options usage time.

Parameters:

pUsageTime

The render options usage time identifier.

Remarks:

This function is deprecated. Use property UseRealTimeDOFAndAA.Set(pEnable) instead. pEnable == true<=>pUsageTime == eINTERACTIVE pEnable == false<=>pUsageTime == eAT_RENDER

K_DEPRECATEDECameraRenderOptionsUsageTimeGetRenderOptionsUsageTime

(

)

const

Get the render options usage time.

Returns:

Render options usage time identifier.

Remarks:

This function is deprecated. Use property UseRealTimeDOFAndAA.Get() instead. true<=>eINTERACTIVE false<=>eAT_RENDER

K_DEPRECATED void SetUseAntialiasing

(

bool

pEnable

)

Change the use antialiasing flag.

Parameters:

pEnable

Set totrueif antialiasing is enabled.

Remarks:

This function is deprecated. Use property UseRealTimeDOFAndAA.Set(pEnable) instead.

K_DEPRECATED bool GetUseAntialiasing

(

)

const

Get the use antialiasing state.

Returns:

trueif antialiasing is enabled, orfalseif disabled.

Remarks:

This function is deprecated. Use property UseRealTimeDOFAndAA.Get() instead.

K_DEPRECATED void SetAntialiasingIntensity

(

double

pIntensity

)

Set antialiasing intensity.

Parameters:

pIntensity

Antialiasing intensity value.

Remarks:

This function is deprecated. Use property AntialiasingIntensity.Set(pIntensity) instead.

K_DEPRECATED double GetAntialiasingIntensity

(

)

const

Get the antialiasing intensity.

Returns:

Return the current antialiasing intensity value.

Remarks:

This function is deprecated. Use property AntialiasingIntensity.Get() instead.

K_DEPRECATED void SetAntialiasingMethod

(

ECameraAntialiasingMethod

pMethod

)

Set antialiasing method.

Parameters:

pMethod

The antialiasing method identifier.

Remarks:

This function is deprecated. Use property AntialiasingMethod.Set(pMethod) instead.

K_DEPRECATEDECameraAntialiasingMethodGetAntialiasingMethod

(

)

const

Get antialiasing method.

Returns:

The current antialiasing method identifier.

Remarks:

This function is deprecated. Use property AntialiasingMethod.Get() instead.

K_DEPRECATED void SetNumberOfSamples

(

int

pNumberOfSamples

)

Set the number of samples used to process oversampling.

Parameters:

pNumberOfSamples

Number of samples used to process oversampling.

Remarks:

This option is only relevant if antialiasing method is set to eOVERSAMPLING_ANTIALIASING.

This function is deprecated. Use property FrameSamplingCount.Set(pNumberOfSamples) instead.

K_DEPRECATED int GetNumberOfSamples

(

)

const

Get the number of samples used to process oversampling.

Returns:

The current number of samples used to process oversampling.

Remarks:

This option is only relevant if antialiasing method is set to eOVERSAMPLING_ANTIALIASING.

This function is deprecated. Use property FrameSamplingCount.Get() instead.

K_DEPRECATED void SetSamplingType

(

ECameraSamplingType

pType

)

Set sampling type.

Parameters:

pType

Sampling type identifier.

Remarks:

This option is only relevant if antialiasing type is set to eOVERSAMPLING_ANTIALIASING.

This function is deprecated. Use property FrameSamplingType.Set(pType) instead.

K_DEPRECATEDECameraSamplingTypeGetSamplingType

(

)

const

Get sampling type.

Returns:

The current sampling type identifier.

Remarks:

This option is only relevant if antialiasing type is set to eOVERSAMPLING_ANTIALIASING.

This function is deprecated. Use property FrameSamplingType.Get() instead.

K_DEPRECATED void SetUseAccumulationBuffer

(

bool

pUseAccumulationBuffer

)

Change the use accumulation buffer flag.

Parameters:

pUseAccumulationBuffer

Set totrueto enable use of the accumulation buffer.

Remarks:

This function is deprecated. Use property UseAccumulationBuffer.Set(pUseAccumulationBuffer) instead.

K_DEPRECATED bool GetUseAccumulationBuffer

(

)

const

Get the state of the use accumulation buffer flag.

Returns:

trueif the use accumulation buffer flag is enabled,falseotherwise.

Remarks:

This function is deprecated. Use property UseAccumulationBuffer.Get() instead.

K_DEPRECATED void SetUseDepthOfField

(

bool

pUseDepthOfField

)

Change use depth of field flag.

Parameters:

pUseDepthOfField

Set totrueif depth of field is used.

Remarks:

This function is deprecated. Use property UseDepthOfField.Set(pUseDepthOfField) instead.

K_DEPRECATED bool GetUseDepthOfField

(

)

const

Get use depth of field state.

Returns:

trueif depth of field is used,falseotherwise.

Remarks:

This function is deprecated. Use property UseDepthOfField.Get() instead.

K_DEPRECATED void SetFocusDistanceSource

(

ECameraFocusDistanceSource

pSource

)

Set source of camera focus distance.

Parameters:

pSource

Focus distance source identifier.

Remarks:

This function is deprecated. Use property FocusSource.Set(pSource) instead.

K_DEPRECATEDECameraFocusDistanceSourceGetFocusDistanceSource

(

)

const

Get source of camera focus distance.

Returns:

Focus distance source identifier.

Remarks:

This function is deprecated. Use property FocusSource.Get() instead.

K_DEPRECATED void SetSpecificDistance

(

double

pDistance

)

Set the focus distance of the lens in millimiters.

Parameters:

pDistance

Focus distance value.

Remarks:

This option is only relevant if focus distance source is set to eSPECIFIC_DISTANCE.

This function is deprecated. Use property FocusDistance.Set(pDistance) instead.

K_DEPRECATED double GetSpecificDistance

(

)

const

Get the focus distance of the lens in millimiters.

Returns:

Focus distance value.

Remarks:

This option is only relevant if focus distance source is set to eSPECIFIC_DISTANCE.

This function is deprecated. Use property FocusDistance.Get() instead.

K_DEPRECATED void SetFocusAngle

(

double

pAngle

)

Set the focus angle in degrees.

Parameters:

pAngle

Focus angle value.

Remarks:

This function is deprecated. Use property FocusAngle.Set(pAngle) instead.

K_DEPRECATED double GetFocusAngle

(

)

const

Get the focus angle in degrees.

Returns:

Focus angle value.

Remarks:

This function is deprecated. Use property FocusAngle.Get() instead.

K_DEPRECATED void SetDefaultFieldOfView

(

double

pFieldOfView

)

Set default field of view in degrees.

Use this function to set the default field of view value when the camera aperture mode is set to eithereHORIZONTALoreVERTICAL. When the camera aperture mode is set toeHORIZONTAL, this function sets the horizontal field of view in degrees and the vertical field of view is adjusted accordingly. When the camera aperture mode is set toeVERTICAL, this function sets the vertical field of view in degrees and the horizontal field of view is adjusted accordingly.

Parameters:

pFieldOfView

Field of view value.

Remarks:

This function has no effect when the camera aperture mode is set to eithereHORIZONTAL_AND_VERTICALoreFOCAL_LENGTH. The default field of view value is 25.115.

This function is deprecated. Use property FieldOfView.Set(pFieldOfView) instead.

K_DEPRECATED double GetDefaultFieldOfView

(

)

const

Get default field of view.

Use this function to get the default field of view value when the camera aperture mode is set to eithereHORIZONTALoreVERTICAL.

Returns:

If the camera aperture mode is set to eithereHORIZONTALoreVERTICAL, this function returns either the horizontal or vertical field of view value in degrees. If the camera aperture mode is set to eithereHORIZONTAL_AND_VERTICALoreFOCAL_LENGTH, this function has no effect and returns 0.

Remarks:

The default field of view value is 25.115.

This function is deprecated. Use property FieldOfView.Get() instead.

K_DEPRECATED void SetDefaultFieldOfViewX

(

double

pFieldOfViewX

)

Set default field of view X.

Use this function to set the default field of view horizontal value when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL. This function sets the horizontal field of view in degrees.

Parameters:

pFieldOfViewX

Field of view value.

Remarks:

This function has no effect if the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreFOCAL_LENGTH. The default field of view horizontal value is 40.

This function is deprecated. Use property FieldOfViewX.Set(pFieldOfViewX) instead.

K_DEPRECATED double GetDefaultFieldOfViewX

(

)

const

Get default field of view X.

Use this function to get the default field of view horizontal value when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL.

Returns:

If the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL, return the current field of view horizontal value in degrees. If the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreFOCAL_LENGTH, this function has no effect and returns 0.

Remarks:

The default field of view X value is 40 degrees.

This function is deprecated. Use property FieldOfViewX.Get() instead.

K_DEPRECATED void SetDefaultFieldOfViewY

(

double

pFieldOfViewY

)

Set default field of view Y.

Use this function to set the default field of view vertical value when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL.

Parameters:

pFieldOfViewY

Field of view value.

Remarks:

This function has no effect if the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreFOCAL_LENGTH. The default field of view horizontal value is 40.

This function is deprecated. Use property FieldOfViewY.Set(pFieldOfViewY) instead.

K_DEPRECATED double GetDefaultFieldOfViewY

(

)

const

Get default field of view Y.

Use this function to get the default field of view vertical value when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL.

Returns:

If the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL, return the current field of view vertical value in degrees. If the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreFOCAL_LENGTH, this function has no effect and returns 0.

Remarks:

The default field of view Y value is 40 degrees.

This function is deprecated. Use property FieldOfViewY.Get() instead.

K_DEPRECATED void SetDefaultOpticalCenterX

(

double

pOpticalCenterX

)

Set default optical center X, in pixels.

Use this function to set the default optical center horizontal value when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL.

Parameters:

pOpticalCenterX

Optical center offset.

Remarks:

This function has no effect if the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreFOCAL_LENGTH. The default optical center horizontal offset is 0.

This function is deprecated. Use property OpticalCenterX.Set(pOpticalCenterX) instead.

K_DEPRECATED double GetDefaultOpticalCenterX

(

)

const

Get default optical center X, in pixels.

Use this function to get the default optical center horizontal offset when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL.

Returns:

If the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL, return the current optical center horizontal offset. If the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreFOCAL_LENGTH, this function has no effect and returns 0.

Remarks:

The default optical center X offset is 0.

This function is deprecated. Use property OpticalCenterX.Get() instead.

K_DEPRECATED void SetDefaultOpticalCenterY

(

double

pOpticalCenterY

)

Set default optical center Y, in pixels.

Use this function to set the default optical center vertical offset when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL.

Parameters:

pOpticalCenterY

Optical center offset.

Remarks:

This function has no effect if the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreFOCAL_LENGTH. The default optical center vertical offset is 0.

This function is deprecated. Use property OpticalCenterY.Set(pOpticalCenterY) instead.

K_DEPRECATED double GetDefaultOpticalCenterY

(

)

const

Get default optical center Y, in pixels.

Use this function to get the default optical center vertical offset when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL.

Returns:

If the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL, return the current optical center vertical offset. If the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreFOCAL_LENGTH, this function has no effect and returns 0.

Remarks:

The default optical center X offset is 0.

This function is deprecated. Use property OpticalCenterY.Get() instead.

K_DEPRECATED void SetDefaultFocalLength

(

double

pFocalLength

)

Set default focal length, in millimeters Use this function to set the default focal length when the camera aperture mode is set toeFOCAL_LENGTH.

Parameters:

pFocalLength

Focal length value.

Remarks:

This function has no effect if the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreHORIZONTAL_AND_VERTICAL. The default focal length is 0.

This function is deprecated. Use property FocalLength.Set(pFocalLength) instead.

K_DEPRECATED double GetDefaultFocalLength

(

)

const

Get default focal length, in millimeters Use this function to get the default focal length when the camera aperture mode is set toeFOCAL_LENGTH.

Returns:

If the camera aperture mode is set toeFOCAL_LENGTH, return the current default focal length. If the camera aperture mode is set toeHORIZONTAL,eVERTICAL, oreHORIZONTAL_AND_VERTICAL, this function has no effect and returns 0.

Remarks:

The default focal length is 0.

This function is deprecated. Use property FocalLength.Get() instead.

K_DEPRECATED void SetDefaultRoll

(

double

pRoll

)

Set default camera roll in degrees.

Parameters:

pRoll

Roll value.

Remarks:

The default roll value is 0.

This function is deprecated. Use property Roll.Set(pRoll) instead.

K_DEPRECATED double GetDefaultRoll

(

)

const

Get default camera roll in degrees.

Returns:

Current roll value.

Remarks:

The default roll value is 0.

This function is deprecated. Use property Roll.Get() instead.

K_DEPRECATED void SetDefaultTurnTable

(

double

pTurnTable

)

Set default turntable value in degrees.

Parameters:

pTurnTable

Turntable value.

Remarks:

The default turntable value is 0.

This function is deprecated. Use property TurnTable.Set(pTurnTable) instead.

K_DEPRECATED double GetDefaultTurnTable

(

)

const

Get default turntable in degrees.

Returns:

Current turntable value.

Remarks:

The default turntable value is 0.

This function is deprecated. Use property TurnTable.Get() instead.

K_DEPRECATED void SetDefaultBackgroundColor

(

constKFbxColor&

pColor

)

Set default background color.

Parameters:

pColor

RGB values of the background color.

Remarks:

The default background color is black.

This function is deprecated. Use property BackgroundColor.Set(pColor) instead.

K_DEPRECATEDKFbxColorGetDefaultBackgroundColor

(

)

const

Get default background color.

Returns:

Current background color.

Remarks:

The default background color is black.

This function is deprecated. Use property BackgroundColor.Get() instead.

K_DEPRECATED void SetBackgroundColor

(

constKFbxColor&

pColor

)

Set background color.

This method is replaced by the SetDefaultBackgroundColor when setting a non-animated value. For animated values, the client application must access the BackgroundColor fcurves in the take.

Parameters:

pColor

RGB values of the background color.

Remarks:

This function is deprecated. Use property BackgroundColor.Set(pColor) instead.

K_DEPRECATEDKFbxColorGetBackgroundColor

(

)

const

Get background color.

This method is replaced by the GetDefaultBackgroundColor when getting a non-animated value. For animated values, the client application must access the BackgroundColor fcurves in the take.

Remarks:

This function is deprecated. Use property BackgroundColor.Get() instead.

K_DEPRECATED void SetAngleOfView

(

double

pAngleOfView

)

Set the camera angle of view in degrees.

Parameters:

pAngleOfView

The camera angle of view value in degrees. This value is limited to the range [1.0, 179.0].

Warning:

Modifying the angle of view will automatically change the focal length.

Remarks:

This function is deprecated. Use SetDefaultFieldOfView(pAngleOfView), SetDefaultFieldOfViewX(pAngleOfView) or SetDefaultFieldOfViewY(pAngleOfView) instead.

K_DEPRECATED double GetAngleOfView

(

)

const

Get the camera angle of view in degrees.

Returns:

The camera's current angle of view value in degrees.

Remarks:

This function is deprecated. UseGetDefaultFieldOfView(),GetDefaultFieldOfViewX()orGetDefaultFieldOfViewY()instead.

K_DEPRECATED void SetFocalLength

(

double

pFocalLength

)

Set the focal length of the camera in millimeters.

Parameters:

pFocalLength

The focal length in mm.

Warning:

Modifying the focal length will automatically change the angle of view.

Remarks:

This function is deprecated. Use SetDefaultFocalLength(pFocalLength) instead.

K_DEPRECATED double GetFocalLength

(

)

const

Get the camera focal length in millimeters.

Returns:

The camera's current focal length value.

Remarks:

This function is deprecated. UseGetDefaultFocalLength()instead.

bool IsBoundingBoxInView	(	constKFbxMatrix&	pWorldToScreen,
		constKFbxMatrix&	pWorldToCamera,
		constKFbxVector4	pPoints[8]
	)			const

Determine if the given bounding box is in the camera's view.

The input points do not need to be ordered in any particular way.

Parameters:

	pWorldToScreen	The world to screen transformation. See ComputeWorldToScreen.
	pWorldToCamera	The world to camera transformation. Inverse matrix returned fromKFbxNode::GetGlobalFromCurrentTakeis suitable. SeeKFbxNodeAttribute::GetNode()andKFbxNode::GetGlobalFromCurrentTake().
	pPoints	8 corners of the bounding box.

Returns:

true if any of the given points are in the camera's view, false otherwise.

bool IsPointInView	(	constKFbxMatrix&	pWorldToScreen,
		constKFbxMatrix&	pWorldToCamera,
		constKFbxVector4&	pPoint
	)			const

Determine if the given 3d point is in the camera's view.

Parameters:

	pWorldToScreen	The world to screen transformation. See ComputeWorldToScreen.
	pWorldToCamera	The world to camera transformation. Inverse matrix returned fromKFbxNode::GetGlobalFromCurrentTakeis suitable. SeeKFbxNodeAttribute::GetNode()andKFbxNode::GetGlobalFromCurrentTake().
	pPoint	World-space point to test.

Returns:

true if the given point is in the camera's view, false otherwise.

KFbxMatrixComputeWorldToScreen	(	int	pPixelWidth,
		int	pPixelHeight,
		constKFbxXMatrix&	pWorldToCamera
	)			const

Compute world space to screen space transformation matrix.

Parameters:

	pPixelHeight	The pixel height of the output image.
	pPixelWidth	The pixel height of the output image.
	pWorldToCamera	The world to camera affine transformation matrix.

Returns:

The world to screen space matrix, or the identity matrix on error.

KFbxMatrixComputePerspective	(	int	pPixelWidth,
		int	pPixelHeight,
		bool	pIncludePostPerspective
	)			const

Compute the perspective matrix for this camera.

Suitable for transforming camera space to normalized device coordinate space. Also suitable for use as an OpenGL projection matrix. Note this fails if the ProjectionType is not ePERSPECTIVE.

Parameters:

	pPixelHeight	The pixel height of the output image.
	pPixelWidth	The pixel width of the output image.
	pIncludePostPerspective	Indicate that post-projection transformations (offset, roll) be included in the output matrix.

Returns:

A perspective matrix, or the identity matrix on error.

Member Data Documentation

KFbxTypedProperty<fbxDouble3>Position

This property handles the camera position (XYZ coordinates).

To access this property do: Position.Get(). To set this property do: Position.Set(fbxDouble3).

Remarks:

Default Value is (0.0, 0.0, 0.0)

Definition at line1550of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble3>UpVector

This property handles the camera Up Vector (XYZ coordinates).

To access this property do: UpVector.Get(). To set this property do: UpVector.Set(fbxDouble3).

Remarks:

Default Value is (0.0, 1.0, 0.0)

Definition at line1559of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble3>InterestPosition

This property handles the default point (XYZ coordinates) the camera is looking at.

To access this property do: InterestPosition.Get(). To set this property do: InterestPosition.Set(fbxDouble3).

Remarks:

During the computations of the camera position and orientation, this property is overridden by the position of a valid target in the parent node.

Default Value is (0.0, 0.0, 0.0)

Definition at line1572of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>Roll

This property handles the camera roll angle in degree(s).

To access this property do: Roll.Get(). To set this property do: Roll.Set(fbxDouble1).

Default value is 0.

Definition at line1581of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>OpticalCenterX

This property handles the camera optical center X, in pixels.

It parameter sets the optical center horizontal offset when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL. It has no effect otherwise.

To access this property do: OpticalCenterX.Get(). To set this property do: OpticalCenterX.Set(fbxDouble1).

Default value is 0.

Definition at line1593of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>OpticalCenterY

This property handles the camera optical center Y, in pixels.

It sets the optical center horizontal offset when the camera aperture mode is set toeHORIZONTAL_AND_VERTICAL. This parameter has no effect otherwise.

To access this property do: OpticalCenterY.Get(). To set this property do: OpticalCenterY.Set(fbxDouble1).

Default value is 0.

Definition at line1605of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble3>BackgroundColor

This property handles the camera RGB values of the background color.

To access this property do: BackgroundColor.Get(). To set this property do: BackgroundColor.Set(fbxDouble3).

Default value is black (0, 0, 0)

Definition at line1614of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>TurnTable

This property handles the camera turn table angle in degree(s).

To access this property do: TurnTable.Get(). To set this property do: TurnTable.Set(fbxDouble1).

Default value is 0.

Definition at line1623of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>DisplayTurnTableIcon

This property handles a flags that indicates if the camera displays the Turn Table icon or not.

To access this property do: DisplayTurnTableIcon.Get(). To set this property do: DisplayTurnTableIcon.Set(fbxBool1).

Default value is false (no display).

Definition at line1633of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>UseMotionBlur

This property handles a flags that indicates if the camera uses motion blur or not.

To access this property do: UseMotionBlur.Get(). To set this property do: UseMotionBlur.Set(fbxBool1).

Default value is false (do not use motion blur).

Definition at line1647of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>UseRealTimeMotionBlur

This property handles a flags that indicates if the camera uses real time motion blur or not.

To access this property do: UseRealTimeMotionBlur.Get(). To set this property do: UseRealTimeMotionBlur.Set(fbxBool1).

Default value is false (use real time motion blur).

Definition at line1657of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>MotionBlurIntensity

This property handles the camera motion blur intensity (in pixels).

To access this property do: MotionBlurIntensity.Get(). To set this property do: MotionBlurIntensity.Set(fbxDouble1).

Default value is 1.

Definition at line1666of filekfbxcamera.h.

KFbxTypedProperty<ECameraAspectRatioMode>AspectRatioMode

This property handles the camera aspect ratio mode.

Remarks:

This Property is in a Read Only mode.

Please use functionSetAspect()if you want to change its value.

Default value is eWINDOW_SIZE.

Definition at line1680of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>AspectWidth

This property handles the camera aspect width.

Remarks:

This Property is in a Read Only mode.

Please use functionSetAspect()if you want to change its value.

Default value is 320.

Definition at line1689of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>AspectHeight

This property handles the camera aspect height.

Remarks:

This Property is in a Read Only mode.

Please use functionSetAspect()if you want to change its value.

Default value is 200.

Definition at line1698of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>PixelAspectRatio

This property handles the pixel aspect ratio.

Remarks:

This Property is in a Read Only mode.

Please use functionSetPixelRatio()if you want to change its value. Default value is 1.

Value range is [0.050, 20.0].

Definition at line1707of filekfbxcamera.h.

KFbxTypedProperty<ECameraApertureMode>ApertureMode

This property handles the aperture mode.

Default value is eVERTICAL.

Definition at line1713of filekfbxcamera.h.

KFbxTypedProperty<ECameraGateFit>GateFit

This property handles the gate fit mode.

To access this property do: GateFit.Get(). To set this property do: GateFit.Set(ECameraGateFit).

Default value is eNO_FIT.

Definition at line1722of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FieldOfView

This property handles the field of view in degrees.

To access this property do: FieldOfView.Get(). To set this property do: FieldOfView.Set(fbxDouble1).

Remarks:

This property has meaning only when property ApertureMode equals eHORIZONTAL or eVERTICAL.

Default vaule is 40.

Value range is [1.0, 179.0].

Definition at line1735of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FieldOfViewX

This property handles the X (horizontal) field of view in degrees.

To access this property do: FieldOfViewX.Get(). To set this property do: FieldOfViewX.Set(fbxDouble1).

Remarks:

This property has meaning only when property ApertureMode equals eHORIZONTAL or eVERTICAL.

Default value is 1.

Remarks:

Value range is [1.0, 179.0].

Definition at line1749of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FieldOfViewY

This property handles the Y (vertical) field of view in degrees.

To access this property do: FieldOfViewY.Get(). To set this property do: FieldOfViewY.Set(fbxDouble1).

Remarks:

This property has meaning only when property ApertureMode equals eHORIZONTAL or eVERTICAL.

Default vaule is 1.

Value range is [1.0, 179.0].

Definition at line1762of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FocalLength

This property handles the focal length (in millimeters).

To access this property do: FocalLength.Get(). To set this property do: FocalLength.Set(fbxDouble1).

Default value is the result of ComputeFocalLength(40.0).

Definition at line1771of filekfbxcamera.h.

KFbxTypedProperty<ECameraFormat>CameraFormat

This property handles the camera format.

To access this property do: CameraFormat.Get(). To set this property do: CameraFormat.Set(ECameraFormat).

Remarks:

This Property is in a Read Only mode.

Please use functionSetFormat()if you want to change its value. Default value is eCUSTOM_FORMAT.

Definition at line1782of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>UseFrameColor

This property stores a flag that indicates to use or not a color for the frame.

To access this property do: UseFrameColor.Get(). To set this property do: UseFrameColor.Set(fbxBool1).

Default value is false.

Definition at line1796of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble3>FrameColor

This property handles the fame color.

To access this property do: FrameColor.Get(). To set this property do: FrameColor.Set(fbxDouble3).

Default value is (0.3, 0.3, 0.3).

Definition at line1805of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ShowName

This property handles the show name flag.

To access this property do: ShowName.Get(). To set this property do: ShowName.Set(fbxBool1).

Default value is true.

Definition at line1818of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ShowInfoOnMoving

This property handles the show info on moving flag.

To access this property do: ShowInfoOnMoving.Get(). To set this property do: ShowInfoOnMoving.Set(fbxBool1).

Default value is true.

Definition at line1827of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ShowGrid

This property handles the draw floor grid flag.

To access this property do: ShowGrid.Get(). To set this property do: ShowGrid.Set(fbxBool1).

Default value is true.

Definition at line1836of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ShowOpticalCenter

This property handles the show optical center flag.

To access this property do: ShowOpticalCenter.Get(). To set this property do: ShowOpticalCenter.Set(fbxBool1).

Default value is false.

Definition at line1845of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ShowAzimut

This property handles the show axis flag.

To access this property do: ShowAzimut.Get(). To set this property do: ShowAzimut.Set(fbxBool1).

Default value is true.

Definition at line1854of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ShowTimeCode

This property handles the show time code flag.

To access this property do: ShowTimeCode.Get(). To set this property do: ShowTimeCode.Set(fbxBool1).

Default value is true.

Definition at line1863of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ShowAudio

This property handles the show audio flag.

To access this property do: ShowAudio.Get(). To set this property do: ShowAudio.Set(fbxBool1).

Default value is false.

Definition at line1872of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble3>AudioColor

This property handles the show audio flag.

To access this property do: AudioColor.Get(). To set this property do: AudioColor.Set(fbxDouble3).

Default value is (0.0, 1.0, 0.0)

Definition at line1881of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>NearPlane

This property handles the near plane distance.

Remarks:

This Property is in a Read Only mode.

Please use functionSetNearPlane()if you want to change its value. Default value is 10.

Value range is [0.001, 600000.0].

Definition at line1894of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FarPlane

This property handles the far plane distance.

Remarks:

This Property is in a Read Only mode

Please use functionSetFarPlane()if you want to change its value Default value is 4000

Value range is [0.001, 600000.0]

Definition at line1903of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>AutoComputeClipPlanes

This property indicates that the clip planes should be automatically computed.

To access this property do: AutoComputeClipPlanes.Get(). To set this property do: AutoComputeClipPlanes.Set(fbxBool1).

When this property is set to true, the NearPlane and FarPlane values are ignored. Note that not all applications support this flag.

Definition at line1914of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FilmWidth

This property handles the film aperture width (in inches).

Remarks:

This Property is in a Read Only mode

Please use functionSetApertureWidth()orSetApertureFormat()if you want to change its value Default value is 0.8160

Value range is [0.0001, +inf[

Definition at line1929of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FilmHeight

This property handles the film aperture height (in inches).

Remarks:

This Property is in a Read Only mode

Please use functionSetApertureHeight()orSetApertureFormat()if you want to change its value Default value is 0.6120

Value range is [0.0001, +inf[

Definition at line1939of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FilmAspectRatio

This property handles the film aperture aspect ratio.

Remarks:

This Property is in a Read Only mode

Please use functionSetApertureFormat()if you want to change its value Default value is (FilmWidth / FilmHeight)

Value range is [0.0001, +inf[

Definition at line1948of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FilmSqueezeRatio

This property handles the film aperture squeeze ratio.

Remarks:

This Property is in a Read Only mode

Please use functionSetSqueezeRatio()orSetApertureFormat()if you want to change its value Default value is 1.0

Value range is [0.0001, +inf[

Definition at line1958of filekfbxcamera.h.

KFbxTypedProperty<ECameraApertureFormat>FilmFormat

This property handles the film aperture format.

Remarks:

This Property is in a Read Only mode

Please use functionSetApertureFormat()if you want to change its value Default value is eCUSTOM_APERTURE_FORMAT

Definition at line1967of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble2>FilmOffset

This property handles the offset from the center of the film aperture, defined by the film height and film width.

The offset is measured in inches.

To access this property do: FilmOffset.Get(). To set this property do: FilmOffset.Set(fbxDouble2).

Definition at line1977of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ViewFrustum

This property handles the view frustrum flag.

To access this property do: ViewFrustum.Get(). To set this property do: ViewFrustum.Set(fbxBool1).

Default value is true

Definition at line1991of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ViewFrustumNearFarPlane

This property handles the view frustrum near and far plane flag.

To access this property do: ViewFrustumNearFarPlane.Get(). To set this property do: ViewFrustumNearFarPlane.Set(fbxBool1).

Default value is false

Definition at line2000of filekfbxcamera.h.

KFbxTypedProperty<ECameraBackgroundDisplayMode>ViewFrustumBackPlaneMode

This property handles the view frustrum back plane mode.

To access this property do: ViewFrustumBackPlaneMode.Get(). To set this property do: ViewFrustumBackPlaneMode.Set(ECameraBackgroundDisplayMode).

Default value is eWHEN_MEDIA

Definition at line2009of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>BackPlaneDistance

This property handles the view frustrum back plane distance.

To access this property do: BackPlaneDistance.Get(). To set this property do: BackPlaneDistance.Set(fbxDouble1).

Default value is 100.0

Definition at line2018of filekfbxcamera.h.

KFbxTypedProperty<ECameraBackgroundDistanceMode>BackPlaneDistanceMode

This property handles the view frustrum back plane distance mode.

To access this property do: BackPlaneDistanceMode.Get(). To set this property do: BackPlaneDistanceMode.Set(ECameraBackgroundDistanceMode).

Default value is eRELATIVE_TO_INTEREST

Definition at line2027of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ViewCameraToLookAt

This property handles the view camera to look at flag.

To access this property do: ViewCameraToLookAt.Get(). To set this property do: ViewCameraToLookAt.Set(fbxBool1).

Default value is true

Definition at line2036of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>LockMode

This property handles the lock mode.

To access this property do: LockMode.Get(). To set this property do: LockMode.Set(fbxBool1).

Default value is false

Definition at line2049of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>LockInterestNavigation

This property handles the lock interest navigation flag.

To access this property do: LockInterestNavigation.Get(). To set this property do: LockInterestNavigation.Set(fbxBool1).

Default value is false

Definition at line2058of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>FitImage

This property handles the fit image flag.

To access this property do: FitImage.Get(). To set this property do: FitImage.Set(fbxBool1).

Default value is false.

Definition at line2071of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>Crop

This property handles the crop flag.

Default value is false.

Definition at line2077of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>Center

This property handles the center flag.

To access this property do: Center.Get(). To set this property do: Center.Set(fbxBool1).

Default value is true.

Definition at line2086of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>KeepRatio

This property handles the keep ratio flag.

To access this property do: KeepRatio.Get(). To set this property do: KeepRatio.Set(fbxBool1).

Default value is true.

Definition at line2095of filekfbxcamera.h.

KFbxTypedProperty<ECameraBackgroundDrawingMode>BackgroundMode

This property handles the background mode flag.

To access this property do: BackgroundMode.Get(). To set this property do: BackgroundMode.Set(ECameraBackgroundDrawingMode).

Default value is eBACKGROUND.

Definition at line2104of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>BackgroundAlphaTreshold

This property handles the background alpha threshold value.

To access this property do: BackgroundAlphaTreshold.Get(). To set this property do: BackgroundAlphaTreshold.Set(fbxDouble1).

Default value is 0.5.

Definition at line2113of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>FrontPlateFitImage

This property handles the fit image for front plate flag.

To access this property do: FrontPlateFitImage.Get(). To set this property do: FrontPlateFitImage.Set(fbxBool1).

Default value is false.

Definition at line2126of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>FrontPlateCrop

This property handles the front plane crop flag.

To access this property do: FrontPlateCrop.Get(). To set this property do: FrontPlateCrop.Set(fbxBool1).

Default value is false.

Definition at line2135of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>FrontPlateCenter

This property handles the front plane center flag.

To access this property do: FrontPlateCenter.Get(). To set this property do: FrontPlateCenter.Set(fbxBool1).

Default value is true.

Definition at line2144of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>FrontPlateKeepRatio

This property handles the front plane keep ratio flag.

To access this property do: FrontPlateKeepRatio.Get(). To set this property do: FrontPlateKeepRatio.Set(fbxBool1).

Default value is true.

Definition at line2153of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>ShowFrontPlate

This property handles the front plane show flag.

To access this property do: ShowFrontPlate.Get(). To set this property do: ShowFrontPlate.Set(fbxBool1).

Default value is false.

Remarks:

this replaces ForegroundTransparent

Definition at line2164of filekfbxcamera.h.

KFbxTypedProperty<ECameraBackgroundDisplayMode>ViewFrustumFrontPlaneMode

This property handles the view frustrum front plane mode.

To access this property do: ViewFrustumFrontPlaneMode.Get(). To set this property do: ViewFrustumFrontPlaneMode.Set(ECameraBackgroundDisplayMode).

Default value is eWHEN_MEDIA

Definition at line2173of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FrontPlaneDistance

This property handles the view frustrum front plane distance.

To access this property do: FrontPlaneDistance.Get(). To set this property do: FrontPlaneDistance.Set(fbxDouble1).

Default value is 100.0

Definition at line2182of filekfbxcamera.h.

KFbxTypedProperty<ECameraBackgroundDistanceMode>FrontPlaneDistanceMode

This property handles the view frustrum front plane distance mode.

To access this property do: FrontPlaneDistanceMode.Get(). To set this property do: FrontPlaneDistanceMode.Set(ECameraBackgroundDistanceMode).

Default value is eRELATIVE_TO_INTEREST

Definition at line2191of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>ForegroundAlpha

This property handles the foreground alpha value.

To access this property do: ForegroundAlpha.Get(). To set this property do: ForegroundAlpha.Set(fbxDouble1).

Default value is 0.5.

Definition at line2200of filekfbxcamera.h.

KFbxTypedProperty<fbxReference>ForegroundTexture

This property has the foreground textures connected to it.

To access this property do: ForegroundTexture.Get(). To set this property do: ForegroundTexture.Set(fbxReference).

Remarks:

they are connected as source objects

Definition at line2210of filekfbxcamera.h.

KFbxTypedProperty<fbxReference>BackgroundTexture

This property has the background textures connected to it.

To access this property do: BackgroundTexture.Get(). To set this property do: BackgroundTexture.Set(fbxReference).

Remarks:

they are connected as source objects

Definition at line2219of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>DisplaySafeArea

This property handles the display safe area flag.

To access this property do: DisplaySafeArea.Get(). To set this property do: DisplaySafeArea.Set(fbxBool1).

Default value is false

Definition at line2233of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>DisplaySafeAreaOnRender

This property handles the display safe area on render flag.

To access this property do: DisplaySafeAreaOnRender.Get(). To set this property do: DisplaySafeAreaOnRender.Set(fbxBool1).

Default value is false

Definition at line2242of filekfbxcamera.h.

KFbxTypedProperty<ECameraSafeAreaStyle>SafeAreaDisplayStyle

This property handles the display safe area display style.

To access this property do: SafeAreaDisplayStyle.Get(). To set this property do: SafeAreaDisplayStyle.Set(ECameraSafeAreaStyle).

Default value is eSQUARE

Definition at line2251of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>SafeAreaAspectRatio

This property handles the display safe area aspect ratio.

To access this property do: SafeAreaDisplayStyle.Get(). To set this property do: SafeAreaAspectRatio.Set(fbxDouble1).

Default value is 1.33333333333333

Definition at line2260of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>Use2DMagnifierZoom

This property handles the use 2d magnifier zoom flag.

To access this property do: Use2DMagnifierZoom.Get(). To set this property do: Use2DMagnifierZoom.Set(fbxBool1).

Default value is false

Definition at line2273of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>_2DMagnifierZoom

This property handles the 2d magnifier zoom value.

To access this property do: _2DMagnifierZoom.Get(). To set this property do: _2DMagnifierZoom.Set(fbxDouble1).

Default value is 100.0

Definition at line2282of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>_2DMagnifierX

This property handles the 2d magnifier X value.

To access this property do: _2DMagnifierX.Get(). To set this property do: _2DMagnifierX.Set(fbxDouble1).

Default value is 50.0

Definition at line2291of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>_2DMagnifierY

This property handles the 2d magnifier Y value.

To access this property do: _2DMagnifierY.Get(). To set this property do: _2DMagnifierY.Set(fbxDouble1).

Default value is 50.0

Definition at line2300of filekfbxcamera.h.

KFbxTypedProperty<ECameraProjectionType>ProjectionType

This property handles the projection type.

To access this property do: ProjectionType.Get(). To set this property do: ProjectionType.Set(ECameraProjectionType).

Default value is ePERSPECTIVE.

Definition at line2313of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>OrthoZoom

This property handles the orthographic zoom.

To access this property do: OrthoZoom.Get(). To set this property do: OrthoZoom.Set(fbxDouble1).

Default value is 1.0.

Definition at line2322of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>UseRealTimeDOFAndAA

This property handles the use real time DOF and AA flag.

To access this property do: UseRealTimeDOFAndAA.Get(). To set this property do: UseRealTimeDOFAndAA.Set(fbxBool1).

Default value is false.

Definition at line2335of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>UseDepthOfField

This property handles the use depth of field flag.

To access this property do: UseDepthOfField.Get(). To set this property do: UseDepthOfField.Set(fbxBool1).

Default value is false

Definition at line2344of filekfbxcamera.h.

KFbxTypedProperty<ECameraFocusDistanceSource>FocusSource

This property handles the focus source.

To access this property do: FocusSource.Get(). To set this property do: FocusSource.Set(ECameraFocusDistanceSource).

Default value is eCAMERA_INTEREST

Definition at line2353of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FocusAngle

This property handles the focus angle (in degrees).

To access this property do: FocusAngle.Get(). To set this property do: FocusAngle.Set(fbxDouble1).

Default value is 3.5

Definition at line2362of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>FocusDistance

This property handles the focus distance.

To access this property do: FocusDistance.Get(). To set this property do: FocusDistance.Set(fbxDouble1).

Default value is 200.0

Definition at line2371of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>UseAntialiasing

This property handles the use anti aliasing flag.

To access this property do: UseAntialiasing.Get(). To set this property do: UseAntialiasing.Set(fbxBool1).

Default value is false

Definition at line2380of filekfbxcamera.h.

KFbxTypedProperty<fbxDouble1>AntialiasingIntensity

This property handles the anti aliasing intensity.

To access this property do: AntialiasingIntensity.Get(). To set this property do: AntialiasingIntensity.Set(fbxDouble1).

Default value is 0.77777

Definition at line2389of filekfbxcamera.h.

KFbxTypedProperty<ECameraAntialiasingMethod>AntialiasingMethod

This property handles the anti aliasing method.

To access this property do: AntialiasingMethod.Get(). To set this property do: AntialiasingMethod.Set(ECameraAntialiasingMethod).

Default value is eOVERSAMPLING_ANTIALIASING

Definition at line2398of filekfbxcamera.h.

KFbxTypedProperty<fbxBool1>UseAccumulationBuffer

This property handles the use accumulation buffer flag.

To access this property do: UseAccumulationBuffer.Get(). To set this property do: UseAccumulationBuffer.Set(fbxBool1).

Default value is false

Definition at line2411of filekfbxcamera.h.

KFbxTypedProperty<fbxInteger1>FrameSamplingCount

This property handles the frame sampling count.

To access this property do: FrameSamplingCount.Get(). To set this property do: FrameSamplingCount.Set(fbxInteger1).

Default value is 7

Definition at line2420of filekfbxcamera.h.

KFbxTypedProperty<ECameraSamplingType>FrameSamplingType

This property handles the frame sampling type.

To access this property do: FrameSamplingType.Get(). To set this property do: FrameSamplingType.Set(ECameraSamplingType).

Default value is eSTOCHASTIC

Definition at line2429of filekfbxcamera.h.
