#include<kfbxtrimnurbssurface.h>

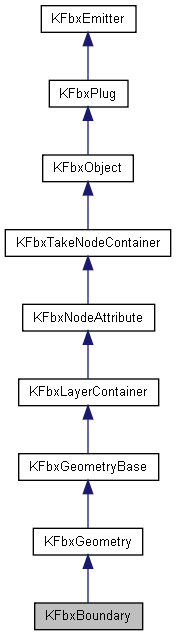

Inheritance diagram for KFbxBoundary:

[legend]

List of all members.

Detailed Description

KFbxBoundaryDescribes a trimming boundary for a trimmed nurbs object.

Note that outer boundaries run counter-clockwise in UV space and inner boundaries run clockwise. An outer boundary represents the outer edges of the trimmed surface whereas the inner boundaries define "holes" in the surface.

Definition at line59of filekfbxtrimnurbssurface.h.

Public Member Functions
void	AddCurve(KFbxNurbsCurve*pCurve)
	Add an edge to this boundary.
int	GetCurveCount() const
KFbxNurbsCurve*	GetCurve(int pIndex)
	Access the edge at index pIndex.
KFbxNurbsCurveconst *	GetCurve(int pIndex) const
	Access the edge at index pIndex.
virtualEAttributeType	GetAttributeType() const
	Return the type of node attribute.

Member Function Documentation

void AddCurve

(

KFbxNurbsCurve*

pCurve

)

Add an edge to this boundary.

Parameters:

pCurve

The curve to append to the end of this boundary

int GetCurveCount

(

)

const

Returns:

The number of edges in this boundary

KFbxNurbsCurve* GetCurve

(

int

pIndex

)

Access the edge at index pIndex.

Parameters:

pIndex

The index of the edge to return. No bounds checking is done

Returns:

The edge at index pIndex if pIndex is in the range [0, GetEdgeCount() ), otherwise the return value is undefined

KFbxNurbsCurveconst* GetCurve

(

int

pIndex

)

const

Access the edge at index pIndex.

Parameters:

pIndex

The index of the edge to return. No bounds checking is done

Returns:

The edge at index pIndex if pIndex is in the range [0, GetEdgeCount() ), otherwise the return value is undefined

virtualEAttributeTypeGetAttributeType

(

)

const[inline, virtual]

Return the type of node attribute.

Reimplemented fromKFbxGeometry.

Definition at line95of filekfbxtrimnurbssurface.h.
