KFbxBindingTable Class Reference

#include <kfbxbindingtable.h>

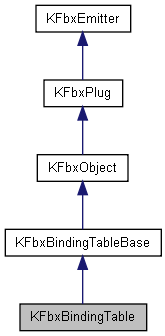

Inheritance diagram for KFbxBindingTable:

[legend]

List of all members.

---

Detailed Description

A binding table represents a collection of bindings from source types such as KFbxObjects, or KFbxLayerElements to destinations which can be of similar types.

See KFbxBindingTableEntry.

Definition at line 54 of file kfbxbindingtable.h.

Public Attributes
KFbxTypedProperty< fbxString >	TargetName
	This property stores the name of target.
KFbxTypedProperty< fbxString >	TargetType
	This property stores the type of target.
KFbxTypedProperty< fbxString >	DescRelativeURL
	Relative URL of file containing the shader implementation description.
KFbxTypedProperty< fbxString >	DescAbsoluteURL
	Absolute URL of file containing the shader implementation description eg.
KFbxTypedProperty< fbxString >	DescTAG
	Identify the shader to use in previous description's URL eg.
KFbxTypedProperty< fbxString >	CodeRelativeURL
	Relative URL of file containing the shader implementation code eg.
KFbxTypedProperty< fbxString >	CodeAbsoluteURL
	Absolute URL of file containing the shader implementation code eg.
KFbxTypedProperty< fbxString >	CodeTAG
	Identifyies the shader function entry to use in previous code's URL eg.

---

Member Data Documentation

KFbxTypedProperty<fbxString> TargetName

This property stores the name of target.

Default value is ""

Definition at line 65 of file kfbxbindingtable.h.

KFbxTypedProperty<fbxString> TargetType

This property stores the type of target.

Default value is ""

Definition at line 71 of file kfbxbindingtable.h.

KFbxTypedProperty<fbxString> DescRelativeURL

Relative URL of file containing the shader implementation description.

eg.: ./shader.mi Default value is ""

Definition at line 77 of file kfbxbindingtable.h.

KFbxTypedProperty<fbxString> DescAbsoluteURL

Absolute URL of file containing the shader implementation description eg.

: file:///usr/tmp/shader.mi Default value is ""

Definition at line 83 of file kfbxbindingtable.h.

KFbxTypedProperty<fbxString> DescTAG

Identify the shader to use in previous description's URL eg.

: MyOwnShader Default value is ""

Definition at line 89 of file kfbxbindingtable.h.

KFbxTypedProperty<fbxString> CodeRelativeURL

Relative URL of file containing the shader implementation code eg.

: ./bin/shader.dll Default value is ""

Definition at line 95 of file kfbxbindingtable.h.

KFbxTypedProperty<fbxString> CodeAbsoluteURL

Absolute URL of file containing the shader implementation code eg.

: file:///usr/tmp/bin/shader.dll Default value is ""

Definition at line 101 of file kfbxbindingtable.h.

KFbxTypedProperty<fbxString> CodeTAG

Identifyies the shader function entry to use in previous code's URL eg.

: MyOwnShaderFunc Default value is ""

Definition at line 107 of file kfbxbindingtable.h.
