Shockwave 3D Export Preview

Command entry:

Application menu

Export

Select File To Export dialog

Save As Type

Shockwave 3D Scene Export (*.W3D)

Preview

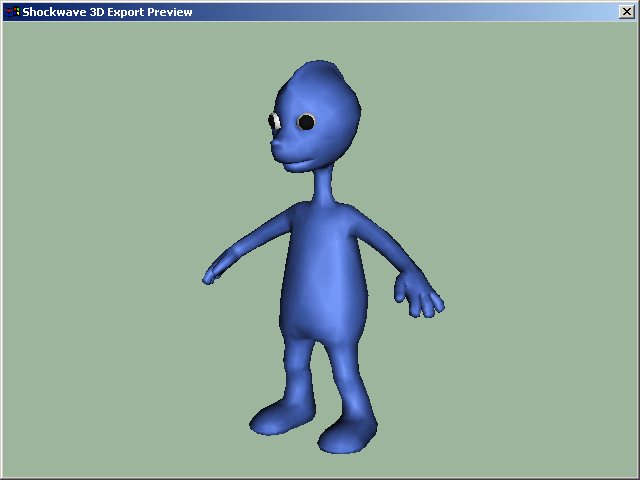

This window displays the scene as it has been captured by the Shockwave 3D Exporter. This view lets you quickly identify scene elements that are not supported by the Shockwave 3D Exporter.

In many cases the export preview window will display scene resources you had decided not to export. Remember that this window displays the scene as captured by the exporter and not necessarily how it is written to the W3D format. Only those scene assets indicated under the export options and supported by the exporter will be written to the W3D file.

Export with a Top, Front, Right, or orthographic viewport active in 3ds Max, and the scene will be viewed through an orthographic camera. Export with a Perspective or Camera viewport active in 3ds Max, and the scene will be viewed through a perspective camera.

NoteWhen navigating a scene, keep in mind that only the parts of models that are in front of the camera will be rendered. Parts of models that penetrate the camera plane and are behind the camera will not render, resulting in visual artifacts ("black holes" or "tearing") in the model. This is particularly noticeable when you dolly an orthographic camera forward, because the lack of perspective effects does not hide models as the camera passes them. Dolly the camera back, and any visual artifacts should disappear.

You can navigate the export preview window using the following controls.

Rotation

Drag (move the mouse with the left button held down)=orbit
Y+drag=rotating the camera with "Y-up" (particularly useful if the scene was created in the "Y-up" environment)
Shift+drag=roll; vertical movement is ignored

Dolly

Ctrl+drag=dolly
Ctrl+Shift+drag=dolly faster

Pan

Spacebar+drag=pan
Shift+Spacebar+drag=constrain the movement to be either horizontal or vertical, depending on the initial direction when you start dragging
