Using the Grid Object

You can use the grid object as a construction plane on all three orthographic planes in both directions. Here's how it works:

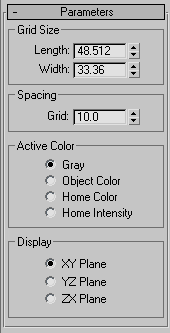

In the Parameters rollout of each grid object is a Display group with three options: XY Plane, YZ Plane, and ZX Plane. These determine which of the three planes of the grid object is displayed in the viewport.

When you activate a grid object, the displayed plane is the construction plane for all viewports. When you create a grid viewport, you can choose from one of six orthographic views (Front, Top, Left, and so on), or you can choose a special Display Planes grid viewport. (When you press the G key to create a grid viewport, the Display Planes type becomes the default.) The Display Planes type of grid viewport always displays the plane chosen by the three option buttons under Display. Thus, as you switch between XY Plane, YZ Plane, and ZX Plane, the view through the grid viewport switches accordingly, and objects created in that viewport are created on the displayed plane.

When you choose Point-Of-View (POV) viewport label menu Extended Viewports Grid (or go to the Layout tab of the Viewport Configuration dialog), you can choose six additional types of grid viewports, based on the six orthographic views. These are available by a cascading Grid menu that provides Left, Right, Front, Back, Top, Bottom, and Display Planes. Each of the orthographic directions is local to the grid object, regardless of its orientation in the scene.

When you choose a specific orthographic grid viewport (as opposed to the Display Planes viewport), the construction of objects in that viewport is on the plane specified in the viewport title regardless of the displayed plane of the grid object.

You can create more than one viewport based on the same grid object, with each using a different plane. For example, you can have a Grid (Front) viewport and a Grid (Top) viewport, as well as a Grid (Display Planes) viewport.

When you deactivate a grid object, its remaining viewports show the assigned orthographic view. Thus, a Grid (Front) viewport becomes a Front viewport, for example. A Grid (Display Planes) viewport always reverts to a Top view, regardless of the currently displayed plane.

Scaling Not Advised

As a rule, don't use scaling to resize a grid object. Scaling enlarges or reduces the apparent size of the grid object but has no effect on grid spacing. A sphere 20 units in radius created on a grid object appears smaller than another 20-unit sphere created on a scaled-up version of the same grid.

If you want to change the actual size of the grid object, select it and go to the Modify panel Parameters rollout Grid Size group, and change the Length and Width settings.

Locating Grid Tools

Grid tools are available throughout the 3ds Max interface.

• On the Tools menu Grids And Snaps submenu are the commands to activate home and user grids.

  The same tools are available by right-clicking anywhere in the viewport when a grid helper is selected.

• Right-click in the viewport while a grid object is selected and the Tools1 quadrant of the quad menu provides commands to activate the home and user grids.
• Choose Tools menu Grids And Snaps Grid And Snap Settings to display the Grid and Snap Settings dialog. Two tabs are devoted to Grid tools, one for home, another for user grids. You can change parameters of any active grid using the Modify panel.

Procedures

To create a grid object:

1. Do one of the following:
   • Click Create panel (Helpers) Standard Object Type rollout Grid.
   • Choose Create menu Helpers Grid.

   The Parameters rollout appears on the Create panel.

2. In a viewport, drag out a rectangle and release the mouse button. This creates and selects a grid object, which appears in white wireframe, divided into four quadrants with coordinate axes at the center.

While the newly created grid object is still selected, you can change its settings on the Parameters rollout.

You can also create a grid object during object creation. Turn on AutoGrid, then press Alt during object creation. A grid is created at the same time as the object and remains displayed and active. See AutoGrid for more information.

To activate a grid object:

A grid object requires activation before use. Standard selection doesn't activate it unless you turn on the option to do so (see User Grids).

Only one grid can be active for construction at a time, whether it's the home grid or a grid object. Activating a user grid "deactivates" the home grid.

Activating a grid object enables options to reactivate the home grid on the Tools menu Grids And Snaps submenu and the Quad menu.

If you have more than one grid object in your scene, you have to activate each one separately. Select the grid object you want to make active and follow the same procedure. Activating another grid object deactivates the current one.

1. Select a grid object.
2. Do one of the following:
   • From the Tools menu, choose Grids And Snaps Activate Grid Object.
   • Right-click the selected grid object and choose Activate Grid from the quad menu.

   The grid object changes to show its internal grid structure. Except for its main axes, the home grid disappears in all viewports.

To reactivate the home grid, do one of the following:

• From the Tools menu, choose Grids And Snaps Activate Home Grid.
• Right-click the selected grid object and choose Activate Home Grid from the quad menu.

  This deactivates the grid object and returns the home grid in all views.

  If you delete an activated grid object, the home grid also reactivates.

  You can assign a keyboard shortcut to Activate Home Grid in the Keyboard panel of the Customize User Interface dialog. This is useful if you need to move back and forth between different grids.

To use a grid object as construction plane:

When activated, a grid object replaces the home grid as the frame of reference for creating objects.

An activated grid object creates a true plane in 3D space. No matter how small an activated grid object appears on screen, its XY plane is effectively infinite, just as if it were the XY plane of the home grid.

1. Activate the grid object.
2. Create any category of object.

   3ds Max creates the object directly on the plane of the grid object, with the object's Z axis perpendicular to the plane.

3. Use Application menu Import Merge to import an object.

   3ds Max creates the object directly on the plane of the grid object, with the object's Z axis perpendicular to the plane.

See Align for details on aligning objects and grids.

Like other objects in 3ds Max, you can move and rotate grid objects freely using standard transformation methods. These transforms, along with alignment, are essential in positioning a construction plane in 3D space.

To nudge a grid object up or down:

1. Activate the grid object.
2. Use Customize User Interface to specify controls for the Nudge Grid Down and Nudge Grid Up actions. For example, you could set the + and − keys on the numeric keypad to move the grid object up and down.

   Adjust the nudge strength with the Grid Nudge Distance setting on the Viewports panel of the Preferences dialog.

Interface
