Command entry:
Application Menu
References
File Link
File Link Manager
File Link Manager dialog
Files panel
Highlight a DWG/DXF file.
Reload button
File Link Settings: DWG Files dialog
Advanced panel
Turn on Selective Reload.
Linked Objects
Command entry:
Utilities panel
Utilities rollout
More button
File Link Manager
File Link Manager dialog
Files panel
Highlight a DWG/DXF file.
Reload button
File Link Settings: DWG Files dialog
Advanced panel
Turn on Selective Reload.
Linked Objects

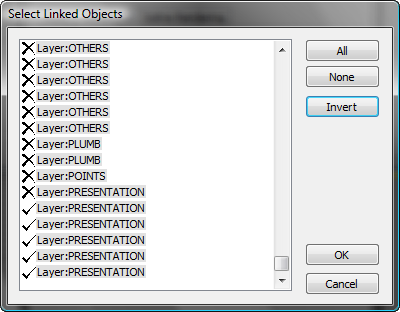

The Select Linked Objects dialog displays the linked objects associated with the selected linked file, including VIZBlocks, lights, and cameras. You use this dialog when reloading a linked file so that you can include/exclude specific objects from
the reloading process. You might want to do this in order to reload only the objects that have changed.
Interface
- List of Objects
-
Lists the VIZBlocks, cameras, and lights associated with the selected linked file. A check mark beside the object name indicates
the object is selected; an X mark indicates the object is deselected.
- All
-
Selects all linked objects in the linked file. You can then deselect specific linked objects by clicking their rows.
- None
-
Deselects all linked objects in the linked file. You can then select specific linked objects by clicking their rows.
- Invert
-
Reverses the current selection of linked objects in the linked file.
