Command entry:Views menu
Viewport Configuration
Viewport Configuration dialog
Statistics tab
Command entry:Click or right-click the General viewport label (“[ + ]”) .
General viewport label menu Configure
Viewport Configuration dialog
Statistics tab
Viewports can display statistis that show the number of vertices, polygons, and so on. Use the Statistics panel to customize
that display.
Statistics can pertain to the scene or the active selection; they can also display a real-time count of the number of frames
per second displayed. To toggle display of the statistics in a viewport on the fly, right-click the General viewport label menu and choose xView Show Statistics, or press 7.

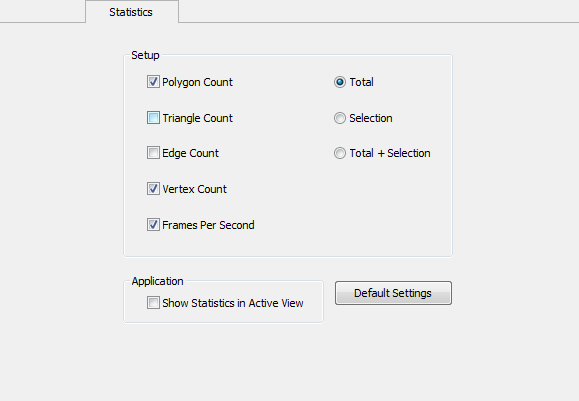

Interface
Setup group
- Polygon Count
-
Enables the polygon count display.
- Triangle Count
-
Enables the triangle count display.
- Edge Count
-
Enables the edge count display.
- Vertex Count
-
Enables the vertex count display.
- Frames Per Second
-
Enables the FPS count display.
- Total
-
Displays only the statistics for the entire scene.
- Selection
-
Displays only the statistics for the current selection.
- Total + Selection
-
Displays the statistics for the entire scene and current selection.
Application group
- Show Statistics In Active View
-
Enables the statistics display.
_____
- Default Settings
-
Restores all options to their original settings.
