Assign Controller Rollout (character studio)



Command entry:Select a biped's COM. Motion panel Assign Controller rollout

The Assign Controller rollout assigns and appends different transform controllers to individual objects. You can also assign controllers in Track View. Animation controllers are plug-ins that handle all of the animation tasks in 3ds Max. For a complete list of available Animation controllers, see Assign Controller .

Interface

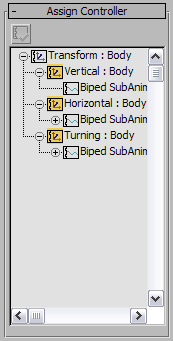

Assign Controller

Displays a selectable list of controllers for a selected track.

Once controllers have been added, right-click the Biped SubAnim entry in the list and choose Properties to display the SubAnims dialog.

Enable section

Enable

Selectively activates or disables the three list controllers. Choose any combination of Position, Rotation, and Scale.

Position List

When turned on, selects the Position controller to be collapsed into the Biped SubAnim track.

Rotation List

When turned on, selects the Rotation controller to be collapsed into the Biped SubAnim track.

Scale List

When turned on, selects the Scale controller to be collapsed into the Biped SubAnim track.

Collapse section

Position

Collapses the Position controller when you click Collapse.

Rotation

Collapses the Rotation controller when you click Collapse.

Don't Delete

Prevents the removal of the list controller after collapsing and hides the controller instead.

Per Frame

Creates a key per frame during the collapse, preventing the controller from collapsing onto the key times of the biped and SubAnim controller.

Collapse

Performs the collapse.
