Truck Camera



Command entry:Activate a Camera viewport. Viewport navigation controls (Truck Camera)

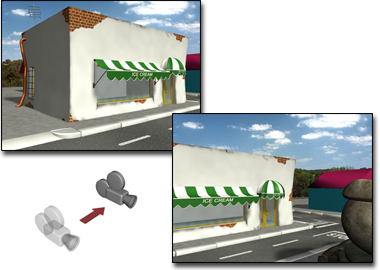

Truck Camera moves the camera parallel to the view plane.

Trucking a camera

For a target camera, dragging the mouse moves both the camera and its target parallel to the Camera view.

This button replaces the Pan button when a Camera viewport is active.

Procedures

To truck a camera:

  1. Activate a Camera viewport.
  2. Click (Truck Camera).

    The button highlights when it is on.

  3. Drag to move the camera and its target.

    The camera and its target move parallel to the view plane, which is perpendicular to the camera's line of sight.

  4. Press Esc or right-click to turn off the button.

To truck with the middle mouse button:

To constrain trucking to a single axis:

To accelerate trucking:
