Importing TRC Files



Command entry: Application menu Import Motion Analysis TRC File (*.TRC)

The TRC motion-capture file format by Motion Analysis Corporation represents the raw form (in ASCII) of tracking output. It contains a header section and a motion section.

All tracking markers stored in a TRC file contain global positioning data and do not share parent-child relationships among themselves.

On import, 3ds Max converts the incoming data as either spheres or points, which are named according to the markers names.

To map TRC data onto a biped, you can convert an imported TRC motion into CSM format by using the MACUtilities utility.

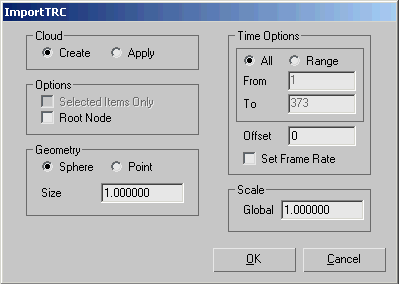

Interface

Cloud group

Create

Choose this option to build a new set of marker objects. Default=on.

Apply

Choose this option to map the incoming data onto the marker children of the selected root in your scene.

NoteThe marker objects must be named to match the imported data.

Options group

Selected Items Only

Imports the motion data only relative to the selected objects in your scene. Available only if the Apply option (in the Cloud group) is active.

Root Node

Includes a root dummy on file import. Available only if the Create option (in the Cloud group) is active.

Geometry group

These settings are available only if the Create option (in the Cloud group) is active.

Sphere/Point

Choose between creating spheres or point helpers to illustrate markers.

Size

Sets the sphere diameter or point size, based on your choice above.

Time Options group

All/Range

Choose between using the entire animation range from the motion capture file, or a defined portion of the range.

  • To/FromThese values represent the start and end frames of the defined range. Available only if Range is active.
Offset

Sets the number of inserted empty frames before the imported animation starts.

Set Frame Rate

When on, the frame rate from the TRC file overwrites the current one in the Time Configuration dialog.

Scale group

Global

Sets the size of the resulting skeleton.

NoteThe scale value within 3ds Max remains 100.

_____

Ok

Proceeds with TRC import, using the current settings.

Cancel

Cancels TRC import.
