Command entry: ![](../images/GUID-98173E20-D8BF-4A71-A169-42981748A8A8-low.png)
Create panel
![](../images/ac.menuaro.gif)
![](../images/GUID-9A23D2B8-9CE2-40BE-98B6-651DBC94F4F7-low.png)
(Helpers)
![](../images/ac.menuaro.gif)
Atmospheric Apparatus (from drop-down list)
![](../images/ac.menuaro.gif)
SphereGizmo
Command entry:Create menu
![](../images/ac.menuaro.gif)
Helpers
![](../images/ac.menuaro.gif)
Atmospherics
![](../images/ac.menuaro.gif)
Sphere Gizmo

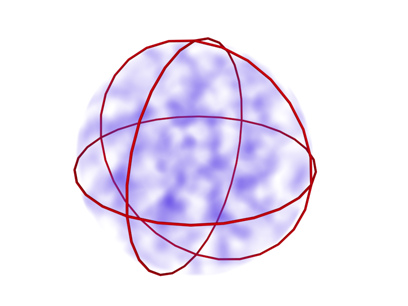

SphereGizmo lets you create a sphere- or hemisphere-shaped gizmo in your scene. Clicking the SphereGizmo button displays the
Sphere Gizmo Parameters rollout.
Procedures
To create the SphereGizmo:
- Drag in any viewport to define the initial radius.
- Adjust the radius with the spinner.
To add a new atmosphere:
- Select the apparatus gizmo.
- On the
Modify panel
Atmospheres & Effects rollout, click Add. This displays the Add Atmosphere dialog.
- Choose an atmosphere from the list.
- Click OK.
This associates a new atmosphere with the apparatus.
To add an existing atmosphere:
- Select the apparatus gizmo.
- On the
Modify panel
Atmospheres & Effects rollout, click Add. This displays the Add Atmosphere dialog.
- In the dialog, choose Existing.
- Choose an atmosphere from the list.
- Click OK.
This creates a duplicate atmosphere for the apparatus. Its settings are initially identical to the atmosphere you chose. You
can adjust them using Setup.
Interface
Sphere Gizmo Parameters rollout
- Radius
-
Sets the radius of the default sphere.
- Hemisphere
-
When turned on, the bottom half of the SphereGizmo is discarded, creating a hemisphere.
- Seed
-
Sets a base value used to generate the atmospheric effect. Each apparatus in the scene should have a different seed. If more
than one apparatus uses the same seed and same atmospheric effect, they will produce nearly identical results.
- New Seed
-
Click to generate a random number automatically and place it in the seed field.
Atmospheres & Effects rollout
The Atmospheres & Effects rollout, available from the Modify panel, allows you to add and set up atmospheres effects directly
to the gizmo.
- Add
-
- Delete
-
Deletes a highlighted atmospheric effect.
- Setup
-
