Target Camera

Command entry:

Create panel

(Cameras)

Target

Command entry:Create menu

Cameras

Target Camera

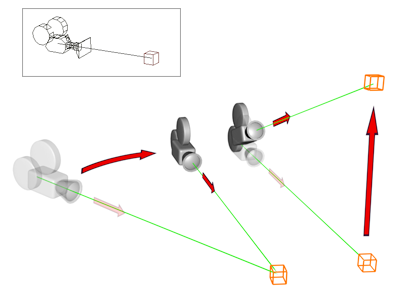

A target camera “views” the area around the target icon that you place when you create the camera. A target camera is easier to aim than a free camera because you simply position the target object at the center of interest.

You can animate both the target camera and its target to create interesting effects. To animate both the target and camera along a path, it is best to link them both to a dummy object, then animate the dummy.

NoteWhen you add a target camera, 3ds Max automatically assigns a Look At controller to it, with the camera's target object assigned as the Look At target. You can use the controller settings on the Motion panel to assign any other object in the scene as the Look At target.

Target cameras always face their target.

Procedures

To create a target camera:

Do one of the following:
- On the Create panel, click (Cameras), then on the Object Type rollout, turn on Target.
- Choose Create menu Cameras Target Camera.
Drag in a viewport. The initial point of the drag is the location of the camera, and the point where you release the mouse is the location of the target.
The camera is now part of the scene. It is aimed at the target, which is a separate object.
Set the creation parameters.

Interface

See Common Camera Parameters for a description of the common camera parameters.

The distance from the camera to the target is displayed at the bottom of the Parameters rollout. You can animate this parameter, or directly animate the target object's location.

When you rename a target camera, the target is automatically renamed to match. For example, renaming Camera01 to Rolli causes Camera01.Target to become Rolli.Target. The target's name must have the extension .Target. Renaming the target object does not rename the camera object.

Clicking the line that connects the camera and its target selects both objects. However, region selection doesn't recognize the link line.

If a target camera is already selected, you add its target to the selection by right-clicking the camera, and then choosing Select Target from the quad menu Tools1 quadrant. Or you can hold down the Ctrl key and click the target to add it to the selection set.
