Orientation Constraint



Command entry:Animation menu Constraints Orientation Constraint

An Orientation constraint causes an object’s orientation to follow the orientation of an object or averaged orientation of several objects.

Orientation constraints align the awning vanes to the supporting rod.

An Orientation Constrained object can be any rotatable object. When constrained it will inherit its rotation from a target object. Once constrained you can not rotate the object manually. You may move or scale the object as long as its not constrained in a manner that effects the object’s position or scale controller.

The target object can be any type of object. The rotation of a target object drives the constrained object. Targets can be animated using any of the standard translation, rotation, and scale tools.

Multiple Targets and Weighting

A constrained object can be influenced by several target objects. When using multiple targets, each target has a weight value that defines the degree by which it influences the constrained object, relative to other targets.

Using Weight is meaningful (and available) only with multiple targets. A value of 0 means the target has no influence. Any value greater than 0 causes the target to influence the constrained object relative to other targets' Weight settings. For example, a target with a Weight value of 80 will have twice the influence of a target with a Weight value of 40.

Procedures

To assign an Orientation constraint:

  1. Select the object you want to constrain.
  2. Choose Animation menu Constraints Orientation Constraint.
  3. Click the target object.

To access the Orientation constraint’s parameters through the Motion panel:

  1. Select the Orientation-constrained object.
  2. On the Motion panel Rotation list, double-click Orientation Controller.

    The Orientation constraint parameters are located on the Orientation Constraint rollout.

To edit weight values:

  1. Select the constrained object.
  2. Go to the Motion panel Orientation Constraint rollout.
  3. Click a target from the list.
  4. Use the Weight spinner or enter a numerical value to set the weight value.

To animate weight values:

  1. Select the constrained object.
  2. Go to the Motion panel Orientation Constraint rollout, and choose a target from the list.
  3. Turn on (Auto Key).
  4. Use the Weight spinner or enter a numerical value to set the weight value.

Interface

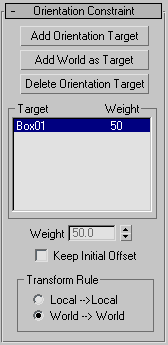

Once you assign an Orientation constraint, you can access its properties on the Position Constraint rollout in the Motion panel. In this rollout you can add or delete targets, assign weighting, assign and animate target weight values, and adjust other, related parameters.

NoteWhen you assign an Orientation constraint via the Animation menu, 3ds Max assigns a Rotation List controller to your object. In the Rotation List rollout list you will find Orientation Constraint, which is the constraint you assigned. To view the Orientation Constraint rollout, double-click Orientation Constraint entry in the list.
Add Orientation Target

Adds new target objects that influence the constrained object.

Add World as Target

Aligns the constrained object to the world axis. You can weight the amount of influence that the world target has on the constrained object as you would any other target object.

Delete Orientation Target

Remove targets. Once removing the target, it will no longer influence the constrained object.

Weight

Assigns and animates weight values for each target.

Keep Initial Offset

Preserves the original orientation of the constrained object. When you turn off Keep Initial Offset, the object adjusts itself to match the orientation of its target or targets. Default=off.

Transform Rule

When an orientation constraint is applied to an object that is part of a hierarchy, this determines whether the local node transform or the parent transform will be used for the orientation constraint.

Local –>Local

When selected, the local node transform is used for the orientation constraint

World –>World

When selected, the parent or world transform will be applied, rather than the local node transform.
