Truck Light



Command entry:Activate a light viewport. Viewport navigation controls (Truck Light)

Truck Light moves a target light and its target parallel to the light view, and moves a free light along its XY axis.

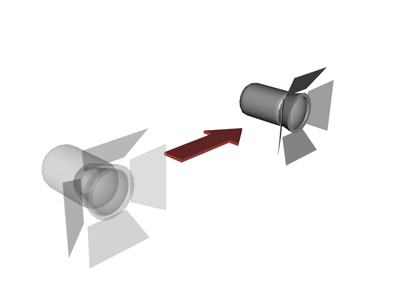

Trucking a light

To constrain trucking of any viewport to a single axis, hold down the Shift key. The truck is constrained to the first axis you move while the Shift key is down.

To accelerate trucking, hold down the Ctrl key.

NoteThis button replaces the Pan button when a light viewport is active.

Procedures

To truck a light:

  1. Activate a Light viewport.
  2. Click (Truck Light).

    The button highlights when it is on.

  3. Drag to move the light and its target.

    The camera and its target move parallel to the view plane, which is perpendicular to the camera's line of sight.

  4. Press Esc or right-click to turn off the button.

To truck with the middle mouse button:

To constrain trucking to a single axis:
