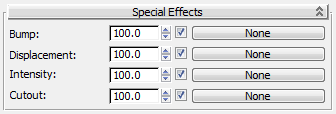

Interface

Bump controls

Click the map button to assign a Bump map.

While a map is assigned to the material, its name appears as the map button’s label.

• Amount spinnerThe spinner at the left sets the extent of the Bump effect. At 1000.0, the Bump map has its greatest effect; at lower amounts, the bumps are less pronounced; at 0.0, the bumps are not visible at all. Negative values reverse the direction of the bump effect. Range: –1000.0 to 1000.0.
• On/offThe check box between the spinner and the map button is an on/off switch. When on, the map is used in the material. When off, the map is disabled.

Displacement controls

Click the map button to assign a Displacement map.

While a map is assigned to the material, its name appears as the map button’s label.

• Amount spinnerThe spinner at the left sets the extent of the displacement effect. At 1000.0, the Displacement map has the greatest effect; at lower amounts, the displacement is less pronounced; at 0.0, the displacement are not visible at all. Negative values reverse the direction of the displacement. Range: –1000.0 to 1000.0.
• On/offThe check box between the spinner and the map button is an on/off switch. When on, the map is used in the material. When off, the map is disabled.

Intensity controls

Click the map button to assign an Intensity map to the material, modulating the material's brightness. The map is treated as a black-and-white scale of intensity values.

TipApplying a low-frequency Noise map to the intensity can help reduce the “computer-generated” look of a texture, and add a natural feel to surfaces such as bricks and carpets lit by daylight.

While a map is assigned to the material, its name appears as the map button’s label.

• Amount spinnerThe spinner at the left sets the extent by which the Intensity map is applied. At 100.0, the Intensity map has its greatest effect; at lower amounts, the effect is less pronounced; at 0.0, the map has no effect; and at values less than 0.0, the material is dimmed. Range: 0.0 to 100.0.
• On/offThe check box between the spinner and the map button is an on/off switch. When on, the map is used in the material. When off, the map is not used.

Cutout controls

Click the map button to assign a Cutout map.

While a map is assigned to the material, its name appears as the map button’s label.

• Amount spinnerThe spinner at the left sets the amount of Cutout mapping to use. This value is a percentage: At 100.0, the map has its full effect; lower amounts have the effect of darkening the map, reducing its effect and increasing transparency. At 0.0, the map is completely black, making objects with this material completely transparent.
• On/offThe check box between the spinner and the map button is an on/off switch. When on, the map is used in the material. When off, the map is not used.
