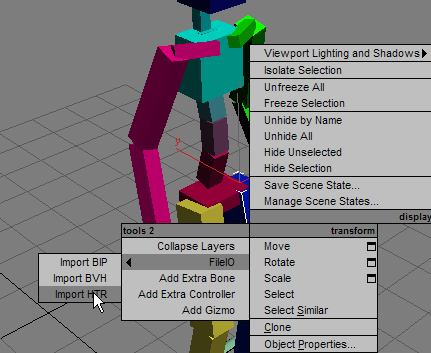

Command entry:Right-click a bone in a CATRig.
![](../images/ac.menuaro.gif)
Tools2 quadrant
![](../images/ac.menuaro.gif)
FileIO
![](../images/ac.menuaro.gif)
Import HTR/Import BVH
Command entry:Select CATParent.
![](../images/ac.menuaro.gif)
![](../images/GUID-EBCA3C24-9B3B-46F2-A058-71C6B3FFD2E6-low.png)
Motion panel
![](../images/ac.menuaro.gif)
Clip Manager rollout
![](../images/ac.menuaro.gif)
Clip mode
![](../images/ac.menuaro.gif)
Click Load button.
![](../images/ac.menuaro.gif)
Set Files of Type to MotionAnalysis HTR(*.htr) or BioVision BVH(*.bvh).
You can import HTR and BVH motion-capture files into CAT using the same method. The respective importer opens the file as a hierarchy of Box primitives with keyframes. You use the
Capture Animation tool to map this motion onto your CATRig.

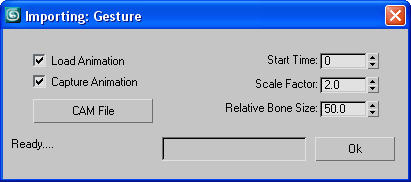

Interface
- Load Animation:
-
When on, imports the full animation. When off, imports only the base pose in the motion-capture file.
- Capture Animation
-
When on, automatically captures the animation, overlaying the new bones onto the CATRig. When off, imports the animation onto
a new set of bones without affecting the CATRig.
- CAM File
-
Click to pick a CAM file if you have already created one.
- Start Time
-
The frame at which the imported animation begins.
- Scale Factor
-
The scaling applied to the imported hierarchy when it is created.
- Relative Bones Size
-
The size of the bones created upon importing.
