Math Color Mix Shader (MetaSL)



Command entry: Slate Material Editor Material/Map Browser Maps MetaSL Math Color Mix
NoteMetaSL shaders appear in the Browser only if the currently active renderer supports them.

Generates a mix of two colors, based on linear interpolation controlled by a Mix color.

The calculation is A * (1–X) + B*X, where A and B are the colors, and X is the Mix color.

Interface

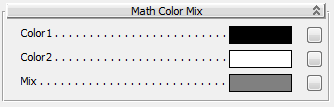

Math Color Mix rollout

Color 1

The first color to mix.

Color 2

The second color to mix.

Mix

The color that controls mixing.

The map buttons at the right are shortcuts to the Maps rollout.

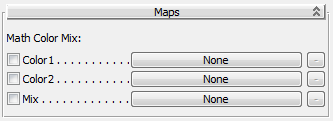

Maps rollout

The controls on this rollout let you assign a shader to one of the basic parameters of the Math Color Mix shader. This is comparable to using a map as a component of a standard material; by adding shaders, you can create a shader tree that generates complex effects.

Click the button for a component to display the Material/Map Browser and assign the map or shader. Use the toggle at the left to turn the effect of the map off or on.

The button to the right of each main shader button, for shaders that return multiple parameters, is inactive.
