Procedures

To choose a modifier and button set to edit:

• Choose a button set from the Sets drop-down list.

To create a new modifier and button set:

1. Create a custom button set in the Modifiers group box. You use these controls:
   • Use Total Buttons to change the number of buttons.
   • Drag a modifier from the Modifiers list to a button.
   • Highlight a button, and then double-click a modifier in the Modifiers list. (When you assign a button by double-clicking, the highlight moves to the next button in the Modifiers group.)
2. Enter the new set's name in the Sets edit field.
3. Click Save.
4. Click OK to leave the Configure Modifier Sets dialog.

To customize the current modifier and button set:

1. Use Total Buttons to choose the number of buttons in the set.
2. Assign buttons by dragging the names of modifiers in the dialog's Modifiers list to buttons in the Modifiers group box.
3. Click OK.

   3ds Max updates the Modifiers list. You can customize the set without saving it, but if you save a new set under a new name, you can use it later.

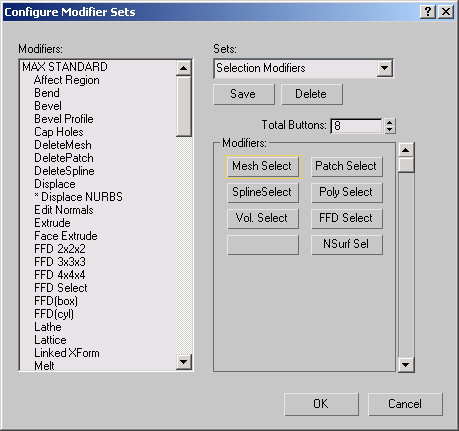

Interface

Modifiers

Lists all modifiers currently available. It's organized into these categories: Channel Info, Max Edit, Max Standard, Deformations, Max Surface, Surface Tools, Modifiers, Radiosity, LIGHT, Max Additional, Shell, Spline Edits, World Space Modifiers, and others. To add a modifier to the current button set, drag the modifier's name from this list onto a button in the Modifiers group box.

Sets

This edit field and drop-down list lets you choose the modifier set to edit. To create a new button set, enter the name in the edit field, and then click Save.

Save

Saves the current button set.

Delete

Deletes the current button set.

ImportantYou can't undo deleting a button set.

Total Buttons

Sets the number of buttons in the button set. A button set can have up to 32 buttons.
