Command entry:Views menu
Viewport Background
Select Background Image dialog
Choose a directory with sequentially numbered files.
Sequence
Setup

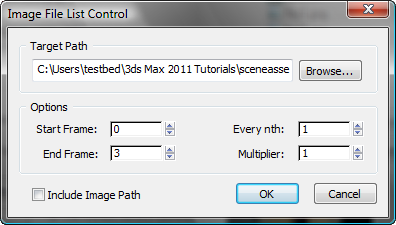

Image File List Control dialog
The Image File List Control dialog provides controls for creating an Image File List (IFL file), which lists sequential still image files for rendering into backgrounds or materials. It is particularly useful if you are
choosing a sequence of files that are on a CD-ROM, because you can redirect the IFL file to a different directory on your
hard disk.
This dialog duplicates the functionality found in the IFL Manager utility.
Interface
- Target Path
-
Sets the directory where the IFL file is saved.
- Browse
-
Use this to navigate to the correct directory.
- Options
-
Sets additional options for creating the IFL file.
- Start Frame
-
Determines which file in the sequence will be the first frame. Use this when you have a sequence but you don’t want to start
with the first image in the sequence.
- End Frame
-
Determines which file will be the last frame listed in the IFL list.
- Nth Frame
-
Skips frames in the image file list. Use this to match the length of the sequence to the length of the animation.
- Multiplier
-
Increases the frames in the image file list. Each frame in the file list can be repeated by this value to stretch out the
length of the sequence.
- Include Image Path
-
Includes the path in the image file list.
