Command entry:
Utilities panel
Utilities rollout
Measure button
The Measure utility provides measurements of a selected object or shape.
Procedures
To measure an object:
- On the Utilities panel, click the Measure button.
Select the object you want to measure.
If both an object and a shape are in the selection, information is displayed for both types. If several objects are in a selection,
the sum of their measurements is displayed.

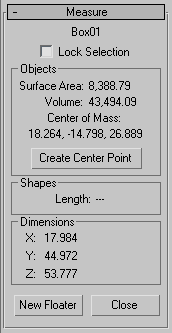

Interface
- Text display
-
Displays the name of the object in the current selection. If more than one object is in the selection, Multiple Objects Selected
is displayed.
- Lock Selected
-
Prevents the displayed data from changing when you change selection. For example, you might need to select and manipulate
another object that affects the currently selected object.
Objects group
Displays information about renderable mesh objects.
- Surface Area
-
Displays the total surface area of all objects in the selection, in units squared.
- Volume
-
Displays the total volume of all objects in the selection, in units cubed. Note that objects with "holes" caused by missing
faces can result in inaccurate volume values. When an object has one or more holes, an asterisk appears beside the Volume
number.
- Center Of Mass
-
Displays the world coordinates of the location of the center of mass for the object or the center of mass of the selected
objects.
- Create Center Point
-
Shapes group
Displays information about shape objects.
- Length
-
Displays the sum of the length of all splines in all selected shapes.
Dimensions group
Displays the dimensions of the object, as they appear in world space. For example, if it were a box with the created dimensions
of 15 x 10 x 25, and that box were scaled 200 percent, then this group would report dimensions of 30 x 20 x 50.
Button set
- New Floater
-
Launches a modeless Measure dialog that displays the same information found under the Objects, Shapes, and Dimensions groups
on the Utilities panel. In addition, you can expand the dialog horizontally, in case the values are too long to be viewed
in the default dialog size.
TipWhile the Measure floater is displayed, you can view the length of a spline while you're creating it.
- Close
-
