Mask Map

Command entry:

Material Editor

Material/Map Browser

Maps

Standard

Mask

With the Mask map, you can view one material through another on the surface. The mask controls where a second map is applied to the surface.

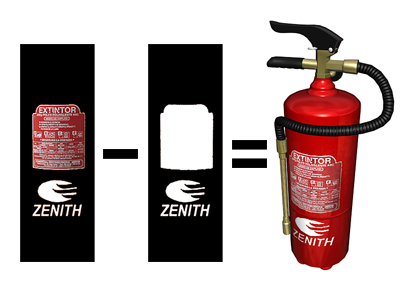

Mask map applies labels to the fire extinguisher.

By default, lighter (whiter) areas of the mask are opaque, showing the map. Darker (blacker) areas of the mask are transparent, showing the underlying material. You can use Invert Mask to reverse the mask's effect.

Interface

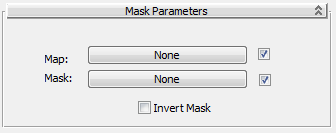

These are the controls for the Mask map:

Map: Selects or creates the map to be viewed through the mask.
Mask: Selects or creates the map to use as a mask.
Invert Mask: Inverts the effect of the mask.
