Selecting Chain Elements





There are various keyboard shortcuts and commands in Softimage that make it easy to select chain elements in a scene.

Navigating in a Skeleton Hierarchy

You can use the Alt key plus your keyboard arrow keys to move up and down a hierarchy of chains in all views.

  • Press Alt+up-arrow to select the next chain element up in the hierarchy (the chain element's parent).

  • Press Alt+down-arrow to select the next child down the chain.

  • Press Alt+Home to select the parent (first object) of the chain, which is the root.

  • Press Alt+End to select the last child in the chain. If the chain root or a bone is selected, it moves to the next chain effector.

    This is particularly useful to quickly flip between a chain root and a chain effector, or to traverse a hierarchy from root to root or effector to effector.

  • Press Alt+left-arrow to select the previous sibling in the chain.

  • Press Alt+right-arrow to select the next sibling in the chain.

    Remember that a bone is the child of the previous bone: they are not siblings. As well, in a default skeleton, the effector is a sibling of the first bone (it's a child of the chain's root).

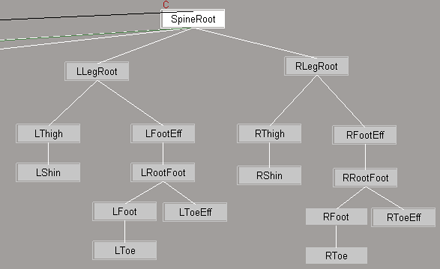

    Skeleton hierarchy in the schematic view showing how leg elements are parented to the spine root.

    For more information on other shortcut keys for hierarchies, see Cutting Links in a Hierarchy.

Branch-selecting the Chain's Root

When you normally branch-select a chain element, the element you middle-click and its children are branch-selected.

However, you can also quickly branch-select a whole chain from its root when you select any part of the chain (such as a bone or effector). For example, if you right-click a bone in a finger, the finger's root is branch-selected so that the whole finger chain is selected, but not the whole hand (tree).

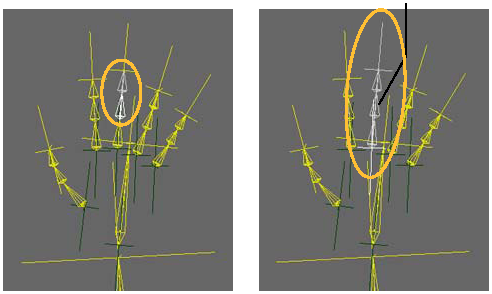

On the left, the middle finger bone is middle-clicked to branch-select it.

On the right, the middle finger bone is right-clicked to branch-select the chain's root.

To quickly branch-select a chain's root

  • Do one of the following:

    • Press the space bar to activate the Object selection tool, and right-click on any chain element in a geometry or schematic view.

      or

    • Select any chain element, press Alt+right-click, and choose Select Chain.

    or

    • Select any chain element and choose Select Select Chain in the main command panel.

      NoteIf you have reparented the effector so that it is no longer part of the chain hierarchy, it is not included in the selection.

To set a preference for right-clicking a chain element

You can choose how a skeleton is selected when you right-click a chain element.

  1. Choose File Preferences from the main menu bar at the top of the Softimage window.

  2. In the explorer panel of the Preferences editor, expand the Tools node and click Selection.

  3. In the Selection Preferences page, select one of the options in the Upon Selection using RMB group for Chains or Objects:

    • Chain Select: Selects the chain's root in branch mode when you right-click any chain element (as described previously). Right-clicking any other type of object selects the entire hierarchy tree.

    • Tree Select: Selects the whole hierarchy tree when you right-click a chain element or any other type of object.

    • Model Select: Selects the model node when you right-click a chain element.

Using Selection Filters

If you have many objects located in close proximity to a chain, it's easy to mistakenly select an object instead of the chain. With any of these Select filter options active, you can make sure that only chain elements can be selected:

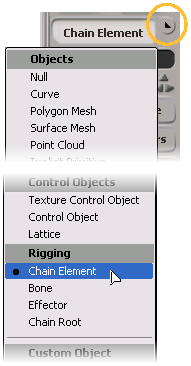

  • In the Select panel of the main command panel, click the little arrow button and select Chain_Element (which includes chain roots, bones, and effectors), or just Bone, Effector, or Chain Root from the filter list.
