Landscape

Category: mental ray > Texture

Shader Family: Texture

Output: Color

Landscape is a highly versatile shader that maps textures to terrain and other types of complex models in useful and natural ways, using such attributes as slope, height, image, and noise functions. For example, on a single piece of terrain geometry, you could create dusty pile-ups on plateau surfaces, exposed rock faces in steeper cliff-like areas, and water stains where the ground meets the sea. It is especially useful in situations where the size or shape of an object makes handmade textures impractical.

Landscape works by blending a base color with an overlay color. The blending parameter is computed from one or more effects.

Effects

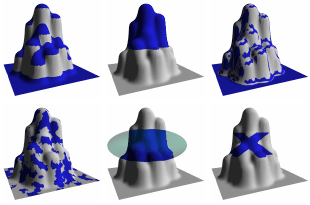

You can control the Landscape by applying one or more of the following effects:

Slope piles a texture on flat surfaces, like snow piling on a plateau.
Height behaves like a waterline.
Two different noise generators, Positional Noise and Shape-Based Noise, provide natural-looking irregularities.
Stain confines a texture with the boundaries of another object.
Texture (Image) allows the Overlay Color or alpha channel to influence its blending.

Mixing Effects

Landscape's real strength comes from allowing you to mix any number of the effects together in different ways.

Mixing is accomplished by adjusting the Influence in each of the active effects. An effect with a high Influence value tends to dominate the other effects; an effect with a low Influence value only subtly modifies the other effects. When specifying Influences, the ratio of the influences is all that is important.

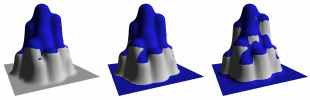

For example, by mixing Height with a small amount of Positional Noise, the Height line is roughened. But if you increase the Influence of the noise, the line breaks up. At high enough values, the line is indistinguishable: all that you can see is that the noise is thicker at the top.

Another example is the mixture of Height and Slope. With a high Influence for the Height, you can create a nearly horizontal line with small dips for flat areas. As the Influence of the Slope increases, height becomes less important and the texture tends to cling to flat areas.

Name	The name of the shader node displayed in the render tree. Enter any name you like, or leave the default.
Base Color	The main color for the effect. Base Color and Overlay Color are mixed together by a blending parameter computed from one or more effects.
Overlay Color	The color that is overlaid and mixed with the Base Color.
Blur	Controls the sharpness of the border between the opaque and transparent extremes of the alpha channel. A value of 0 gives a sharp line, while a value of 1 gives a very blurred line.
Relative to Object	Controls whether the positions and angles are measured relative to the object coordinate system. Relative to Object is useful when an object needs to move, and the texture must move with it. Also, by rotating the center in Relative to Object mode, effects can be applied at an angle other than horizontal.
Relative to World	Controls whether the positions and angles are measured relative to the world coordinate system. Relative to World is good in situations where several different objects need a texture to line up across all the objects.
Base Plane Normal	Most of the effects apply only on a vertical axis and are dependent on the height above the origin. Base Plane Normal specifies the vertical axis direction relative to the world coordinate system origin. Set it in conjunction with Base Plane Distance.
Base Plane Distance	Specifies the distance relative to the world coordinate system origin. Set it in conjunction with Base Plane Normal.

Texture

The Image Effect uses a texture to affect the alpha channel.

Active

Activates the image effect.

Influence

Used for mixing.

Use Alpha/Red/Green/Blue Component

Any combination of the red, green, blue, or alpha channels can be used.

Values in the image that are above 0.5 will give an opaque alpha channel, while values below 0.5 give a transparent alpha channel.

Height

The Height Effect creates a horizontal line across the object: areas above the line receive an opaque alpha channel, while areas below receive a transparent alpha channel.

Active	Activates the height effect.
Influence	Used for mixing.
Upside Down	Reverses the direction so that the alpha channel is opaque below the height-line and transparent above it.
Height	Specifies the height of the dividing line. The line is measured either from the object's center or from the world center, according to the Relative to Object and Relative to World settings.
Spread	Determines how wide the area of effect should be, for blurring and mixing with other effects.

Slope

The Slope Effect acts like snow piling on a plateau. Flatter areas receive an opaque alpha channel while steep areas receive a transparent alpha channel.

Active	Activates the slope effect.
Influence	Used for mixing.
Upside Down	Reverses the direction of the effect so that the alpha channel is opaque in steep areas and transparent in flat areas.
Angle	Specifies where the cutoff line is (that is, how steep the slope is before the snow begins falling off) measured in degrees from the XZ plane.

Positional Noise

The Positional Noise and Shape-Based Noise effects are noise generators that provide a way to add randomness into the landscape.

Positional Noise is based on the surface's absolute position in space. However, the noise isn't affected by the shape of the surface, so it can sometimes produce an unnatural pattern.

A good effect can often be achieved by mixing Positional and Shape Based noise.

Active	Activates the positional noise effect.
Influence	Used for mixing.
Scale	Controls the size in dimensional units of the largest clumps of noise.
Roughness	Controls how jagged the edge of the noise is. A value of 0 gives a smooth edge, while a value of 1 gives a rough, speckled edge.
Coverage	Controls what percentage of the overall alpha-channel is opaque. A value of 0 gives 50% opaque areas, 50% transparent areas. Smaller values give fewer opaque areas, larger values give more opaque areas.
Vertical Scale	Stretches the noise in the vertical direction. A value less than 1 compresses the noise in the vertical direction, giving an appearance similar to sedimentary rock; a value greater than 1 stretches the noise in the Vertical direction, giving an appearance similar to dripping stains.

Shape-Based Noise

Positional Noise isn't affected by the shape of the surface, so it can sometimes produce an unnatural pattern. Shape Based Noise helps alleviate this problem by using the shape exclusively as the seed for the noise. This means that as the surface dips and curves, Shape Based Noise gives variations that reflect the change. The drawback comes when two objects have the same shape, they will have the same noise; or when a surface is flat, it will receive no noise.

A good effect can often be achieved by mixing Positional and Shape Based noises.

Active	Activates the shape-based noise effect.
Influence	Used for mixing.
Scale	Controls the size in degrees of the largest clumps of noise.
Roughness	Controls how jagged the edge of the noise is. A value of 0 gives a smooth edge, while a value of 1 gives a rough, speckled edge.
Coverage	Controls what percentage of the overall alpha-channel is opaque. A value of 0 gives 50% opaque areas, 50% transparent areas. Smaller values give fewer opaque areas, larger values give more opaque areas.
Vertical Scale	Stretches the noise in the vertical direction. A value less than 1 compresses the noise in the vertical direction, giving an appearance similar to sedimentary rock; a value greater than 1 stretches the noise in the Vertical direction, giving an appearance similar to dripping stains.

Stain

The Stain Effect works in conjunction with the Stain shader. Any area of the texture contained by a staining object receive an opaque alpha channel, while areas outside the staining object receive a transparent alpha channel.

Active

Activates the stain effect.

Influence

Used for mixing.

Thickness

Controls how far a point must lie within the staining object before the alpha channel becomes opaque.

This thickness is determined by the viewing angle. Large values for the thickness can cause the texturing to change as the object or camera change their relative position in the scene, which can be particularly undesirable in animation sequences.
