Locking the Feet's Rotation

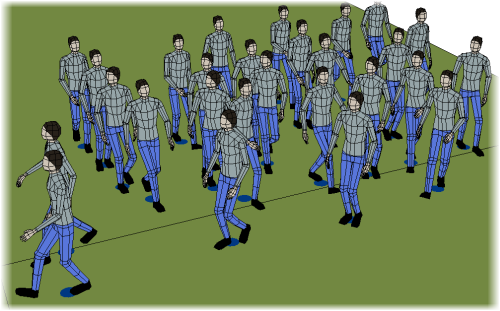

When actors go around a curve or a corner, especially a sharp one as in the image below, you may notice that their feet slide a bit to the side (the X direction). To prevent this shifting, you can constrain (lock) the orientation of the actor's feet.

For best results, you should lock the feet when the actors are in a walk cycle because the feet are in contact with the ground for the longest amount of time, as compared to running. You need to find the frames in the walk cycle in which the actor's feet are on the ground and then lock the rotation of the feet for the duration of each foot's cycle.

To lock the feet's rotation

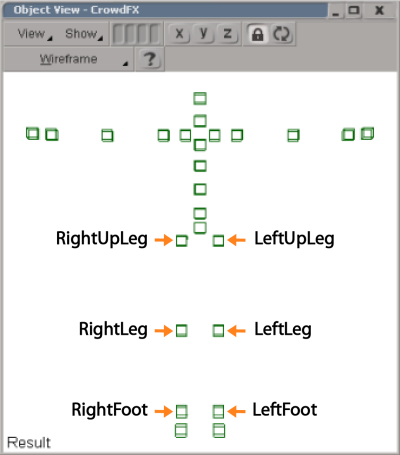

  1. Make sure that the deformers are parented correctly in the rig proxy for constraining the feet (and legs) — see Modifying the Actor's Rig.
  2. Move to any frame in the timeline where the actors are in their walk cycle in the crowd simulation.

  3. In the simulation point cloud's Define Animation node in the Animation_Blending ICE tree, get a Crowd Lock Feet Constraint compound.

  4. Open the Crowd Lock Feet Constraint compound's property editor and specify the rig proxy deformers to use for the Left and Right legs as described in Constraining the Legs to the Ground.

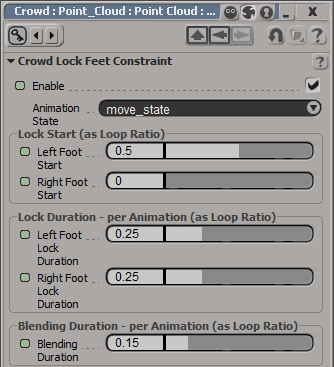

  5. In the property editor, select the Animation State on which you want to lock the orientation of actor feet.

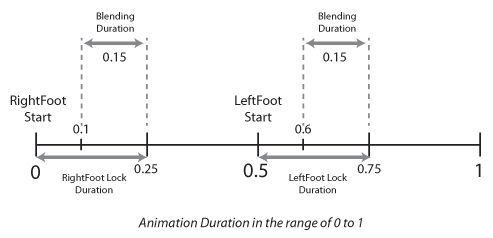

The following illustration explains how the walk cycle starts and ends in the range from 0 to 1.

  1. By default, the walk cycle starts with the Right Foot. For each foot, you need to set the value (in the range of 0 to 1). For example, if the walk cycle starts with the Right Foot, then the value of the Right Foot Start field is 0. The default value for the Left Foot to start is 0.5.

  2. By default, the Right and the Left foot are locked for the duration of 0.25.
  3. Set the Blending Duration value to blend between the constrained and unconstrained foot positions. This prevents the feet from popping after they reach the frame defined by the Left/Right Foot Lock Duration value. By default, this value is set to 0.15.

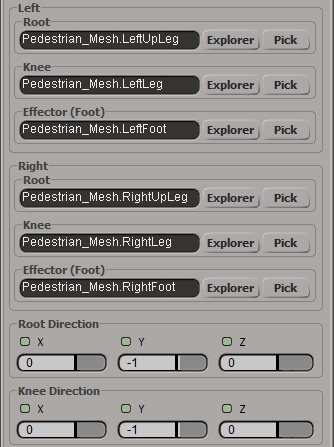

  4. Set the Root Direction and Knee Direction to the deformer's local axis that is pointing toward its children, as described in Constraining the Legs to the Ground.

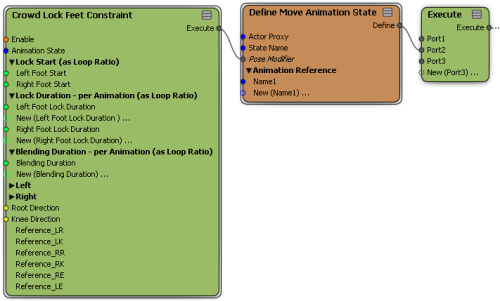

  5. Connect the Execute output port in the Crowd Lock Feet Constraint compound to the Pose Modifier port in the Define Move Animation State compound.

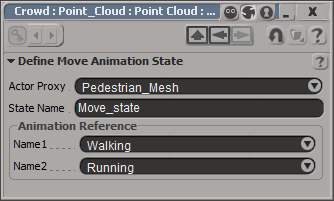

You can use the Define Move Animation State node for an easy setup of actors just walking around. Internally, this node uses the Define Animation State node and a solver to play the animation cycles accordingly to speed of actors walking or running around and prevents the feets of the actors from slipping. Select the appropriate animation cycles such as walking and running to be used for locomotion.
