Shape Sources (Keys) and Clips




Shape keys have two parts: sources and clips.

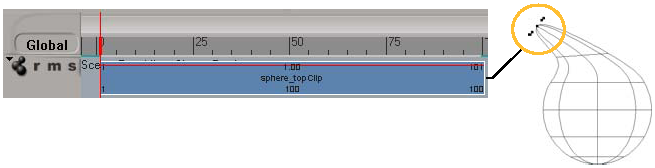

On the left, the shape source, also called a shape key, stores the current pose of an object's cluster.

On the right, a shape clip in the animation mixer is an instance of that source. The clip always refers to the source.

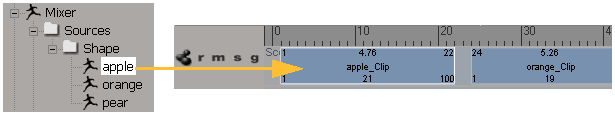

Shape sources and clips are stored in the Mixer node of the current model. For more information, see The Mixer Node [Nonlinear Animation in the Animation Mixer].

Deleting Shape Keys (Sources)

Deleting a shape key removes it as an available shape for the animation. It also removes all shape clips in the mixer created (instantiated) from that shape key. You can delete a shape key from its Mixer Sources Shape folder in the explorer.

Compound Clips

Shape animation is stored for clusters, which means that you can have several clusters on the same object that all have shape animation. In the animation mixer, a compound clip that contains all shape keys set is created for each shape-animated cluster.

To weight the compound clips against each other, see Weighting with Compound Clips.

If clusters overlap — that is, if certain points belong to more than one cluster — you can control the relative weight of each cluster's animation on the shared points — see Mixing between Clusters.

For information on creating compound clips, see Combining Clips into Compound Clips [Nonlinear Animation in the Animation Mixer].

Note

If you want shape clips to be linked to the scene's time, you can give them an "infinite" time length. This is useful for compound clips that take the full length of the scene: when you change the start or end frame of the scene's time, the compound clip reflects this change and continues to drive the geometry rather than having the geometry return to its un-shape-animated state.

See Setting an Infinite Length for Clips [Nonlinear Animation in the Animation Mixer] for more information.

The Cluster Shape Combiner

The Cluster Shape Combiner is an operator under the shape-animated object's geometry that lets you control how much each point in a shape-animated cluster is influenced by each deformation that is applied to it. For more information, see Mixing between Clusters.

This operator is created as soon as a shape clip is created in the mixer, such as if you store and apply a shape key, or bring it into the mixer to create a shape clip.

The operator appears in the object's Shape Modeling region of its construction history and its order is important. As a basic rule, shape animation is done on everything that's below the Cluster Shape Combiner; the operators that are above the Combiner (in the Animation region) are used to create the relative shapes.

For more information on the Cluster Shape Combiner's position in the construction history, see Creating Shape Keys in Shape Modeling Mode.

Finding Shape Mixer Elements in the Explorer

While you are working with shapes, you'll find that the explorer is a valuable tool in helping you find things in your scene. There are two main nodes to keep track of when working with shapes: the model's Mixer node and the shape-animated object's Geometry node.

The Mixer Node

The Mixer node is found in every model for which some object in it has some type of source created for it. For more information on this node's contents, see The Mixer Node [Nonlinear Animation in the Animation Mixer].

The Geometry Node

The Geometry node (such as the Polygon Mesh node) of the shape-animated object contains information about its clusters and the Cluster Shape Combiner.

  • The Cluster Shape Combiner is an operator in the Shape Modeling region that lets you set the weight of different clusters, including overlapping clusters, as described in The Cluster Shape Combiner.

  • The Clusters folder contains all clusters on the object, whether they have shape keys on them or not.

    If a cluster has shape keys, you'll see them listed below it. For example, as shown above, the shape keys for the cluster called left_eyebrow are frown, neutral, secondary, and surprise.

    TipIn the schematic view, shape-animated objects are identified with the letter S.
