Constraining Multiple Rigid Bodies to One




If you want to constrain multiple objects to one, you use the Multi Constraint Tool command. After you choose a constraint command, a picking session begins in which you need to pick the constrained and constraining objects.

In this example, you will constrain objects A, B, C (active rigid bodies) to object D (a passive rigid body).

To constrain many rigid bodies to one

  1. Choose a constraint from the Create Rigid Body Multi Constraint Tool menu in the Simulate toolbar: Hinge, Ball and Socket, Spring, Slider, or Fixed.

  2. Press Shift while you left-click to pick all objects to be constrained (A, B, and C).

  3. Middle-click to pick object D (the passive object).

  4. Right-click to end. A constraint object is created for each object and is attached at the center of each of these objects.

    TipYou can also select all objects to be constrained (A, B, C) before choosing the constraint command.

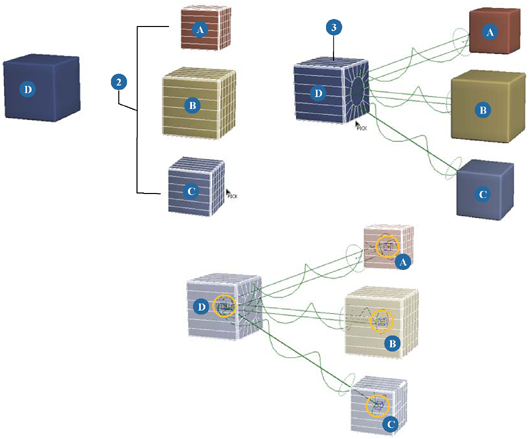

Slider constraints with multiple rigid bodies attached to one. Objects A, B, and C are active and object D is passive. Notice how each constraint object is attached to each constrained objects' centers.
