Choosing and Configuring Maps to Generate

Each RenderMap property that you apply to an object can produce several different types of maps at once. Each type of map has its own unique options that, when combined with the other options, define its output image. When you regenerate the maps, all of the maps that you've activated in the current rendermap property are generated.

Use the Map parameter on the Basic tab to set the surface map type to generate, and use the Maps tab to specify additional maps to generate such as Normals.

Specifying the Surface Map Type

Depending on the type of main map you are generating, you can consider bump information and specify which surface attributes to consider.

Types of Surface Map

Each time you regenerate the maps for a given RenderMap property, you can generate one of the following types of surface color map:


Surface Color and Illumination bakes all object surface attributes, including color, illumination, bump, and so on, into the rendermap output image.

Note that fast subsurface scattering effects are not included in the maps generated by the RenderMap tool.


Surface Color Only (albedo) bakes object surface color into the rendermap output image, without considering the current illumination environment.


Illumination bakes illumination information into the surface color map. This includes light color.


Ambient Occlusion uses Softimage's ambient occlusion shader to create a color representation of the extent to which the object is occluded by other objects or the environment at any given point.

When you select Ambient Occlusion, you can use the Ambient Occlusion options on the Surface Map Settings tab to control the map generation. Among other things, you can choose to output the occlusion values, the occlusion combined with the sampled environment, or the bent normals.

Note that the results of cached ambient occlusion are not included in the map generated by the RenderMap and Ultimapper tools.

Bump-Map Considerations For Surface Color Maps

If you are generating a surface color map for a bump-mapped object, and wish to include the bump map information in the resulting image, you must apply the bump map to the rendermapped object in one of the following ways:

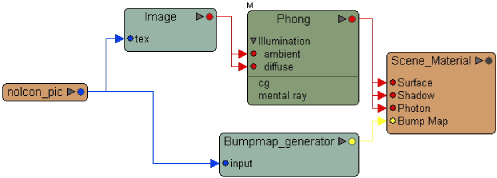

  • A bump map generator shader connected to the Bump Map input of the object's material node.

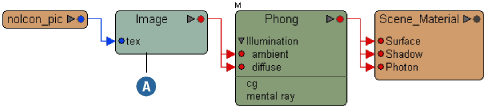

  • A texture shader, with bump mapping active, connected to the Diffuse input of a surface shader that is, in turn, connected to the Surface input of the object's material node.


    Bump mapping enabled

When you generate a surface color map, the material node's Bump Map and then Surface inputs are evaluated. If the shaders connected to either of these inputs perturb the shading normals and leave them perturbed, then the bump information is baked in; otherwise, only the "bumpless" surface is captured.

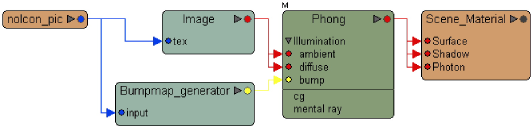

For example, while either of the render trees shown above produce correct surface color maps with bump, this render tree does not:

Disabling Surface Attributes

When you generate certain types of surface color map, you can use the Disable Surface Properties options on the Basic tab of the RenderMap property editor to control whether or not specific surface attributes are included in the resulting image.

The Disable Surface Properties options control whether shadows, refractions and/or reflections, as well as the ambient, diffuse and/or specular lighting components on the rendermapped object appear in the output image. When any of these boxes is checked, the corresponding attribute does not appear.

Properties that are view-dependent, including specular highlights, reflections, refractions, and so on, are probably not a good idea to rendermap because they get "baked in" and don't change from different viewpoints. The exception is when they're intended to be seen from a certain viewpoint only.

Of course these surface attributes can only be toggled provided they are active to begin with. For example, if the object is Blinn shaded, but the Blinn shader's specular component is deactivated, toggling the specular component in the RenderMap property editor has no effect.

In other words, these options are simply a mechanism to toggle surface attributes that are already activated for the object — not a mechanism for adding these attributes to the object.

NoteNot all of the Disable Surface Properties options are not available for all types of surface color map. This is either because the corresponding attributes are not applicable to the map type, or because they are included automatically.

Specifying Additional Maps

Use the Maps tab of the RenderMap property editor to specify additional maps to generate. For each map, you should specify either a path for an image file or a vertex color property.

Texel Coverage Maps

When you generate rendermap images, each one has a texel coverage pattern that indicates what percentage of the output image texel is located on the surface: black being no coverage and white being 100% covered. Practically speaking, this pattern can be used as a matte for the map images.

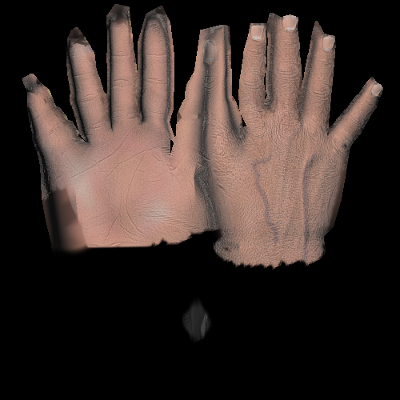

Surface Color map

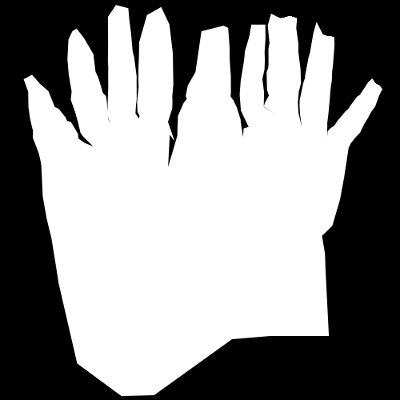

Texel coverage pattern

NoteAlternatively, you can activate Coverage in alpha channel on the Basic tab to store the texel coverage pattern in the alpha channel of a surface color map.

Normal Maps

Normal maps allow you to burn the rendermapped object's normals into a file where they are stored as RGB values.

If you set Type to Relative to UV Basis, then you must either generate U and V basis maps (see the next section) or specify a user-defined basis on the Advanced tab.


Data in normal map files is stored in a biased form. To ensure that they are always in the 0 to 1 range, the X, Y, and Z of the normal are stored as:


To get the unbiased, original normal value, use:


Basis Vector Maps

Together with an object's interpolated normal, the U basis (tangent) and V basis (binormal) define a coordinate frame on the object's surface. Conceptually, the U and V bases are supposed to be tangent to the surface, while the interpolated normal is perpendicular to the surface. This coordinate frame is useful for relative normal computations for bump mapping in games.

The Basis Vector map options on the Maps tab of the RenderMap property editor allow you to burn the U and V bases into separate maps.

On the Advanced tab, you must either:

  • Make sure that Automatic Basis is active and specify a texture UV projection to use.


  • Deactivate Automatic Basis and specify an existing vertex color property that represents the basis to use.


    As with normal maps, data in U and V basis map files is stored in a biased form. To ensure that they are always in the 0 to 1 range, the X, Y, and Z of the vectors are stored as:


    To get the unbiased, original vector value, use:


Surface Position Maps

A surface position map burns the sampled position of an object's surface into a map. It stores the raw (X, Y, Z) position as a color, without biasing. For this reason, you will want to use a file format that supports floating-point bit-depth, or ensure that the object's coordinates are between 0 and 1.

Depth Maps

Depth Maps, also called "height maps", are grayscale representations of the height of every point on an object's surface. Depth maps are often used by game developers to create a more realistic bump-mapping effect called parallax mapping, which simulates the correct displacement you perceive on an object's surface, based on the camera's point of view.
