Paint wire deformer weights

With the Paint Wire Weights Tool settings, you can use an Artisan brush to apply, distribute, and remove wire weights on your target objects. This lets you set wire weights in a free-form manner to create organic, non-uniform and non-symmetrical deformation effects.

Using the Mirror Deformer Weights Options, you can also mirror wire deformer weights from one surface to another, or within the same surface. See Mirror deformer weights.

When you paint wire weights, you can also import or export wire weight maps. See To import a wire weight map and To export a wire weight map.

To paint wire deformer weights

1. For the wire deformation whose weights you want to paint, select its target geometry.
2. Select Edit Deformers > Paint Wire Weights Tool > .

   The Paint Attributes Tool editor appears with the Paint Wire Weights Tool settings displayed.

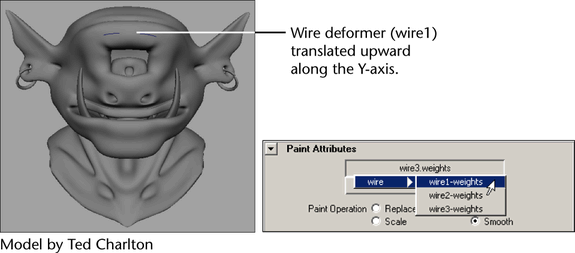

3. In the Paint Wire Weights Tool settings, click the Attribute button and select the wire deformer for which you want to paint weights from the list that appears. For example, wire1.weights.

4. Set the Paint Wire Weights Tool settings. See Paint Wire Weights Tool settings. By default, your object is flooded with a weight Value of 1 for the selected wire deformer.

5. Paint your wire weights. Painting wire deformer weights is just like painting smooth skin weights. See Painting smooth skin point weights in the Character Setup guide.

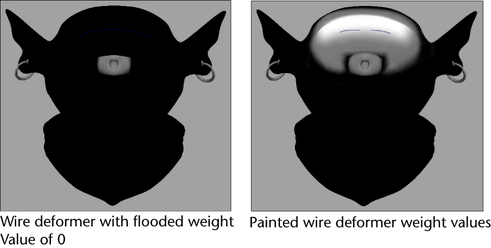

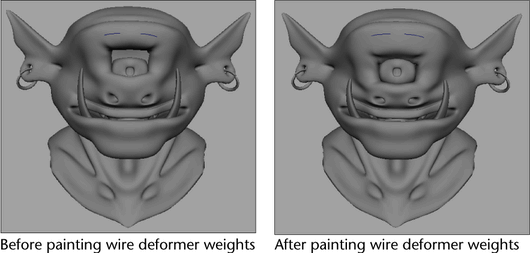

   For example, you can flood your target object with a weight Value of 0 for the selected wire deformer and then paint its weights to create the desired eyebrow deformations for your character.
