Modify > Snap Align Objects > Align Objects





Aligns objects in space.

Related topics

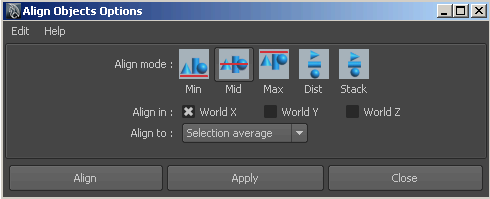

Modify > Snap Align Objects > Align Objects >

Align Mode

You can select from one of five different alignment modes according to the objects’ bounding boxes.

Min

Aligns objects with the side closest to 0.

Mid

Aligns centers.

Max

Aligns objects with the side farthest from 0.

Dist

Distributes objects evenly along the total distance between them.

Stack

Lines the objects up so there is no distance between their sides.

Align In

You can select an axis or multiple axes in which to align the selected objects. For example, to align tops/bottoms turn on World Y.

Align to

You can use this drop-down list to specify how to align objects in the Min, Mid, and Max modes. This drop-down list does not apply to the Dist (Distribute) or Stack modes.

Selection Average

Uses the average minimum, middle, or maximum value of the objects’ bounding boxes as the alignment reference.

Last Selected Object

Uses the minimum, middle, or maximum value of the bounding box of the key object as the alignment reference. This object is highlighted in green.
