Assign New Material window





The Assign New Material window appears when you an object and select Assign New Material.

The Assign New Material window mainly has the same functionality as the Hypershade Create Bar. For more information, see Create bar.

Furthermore, this window also has the following additional functionalities.

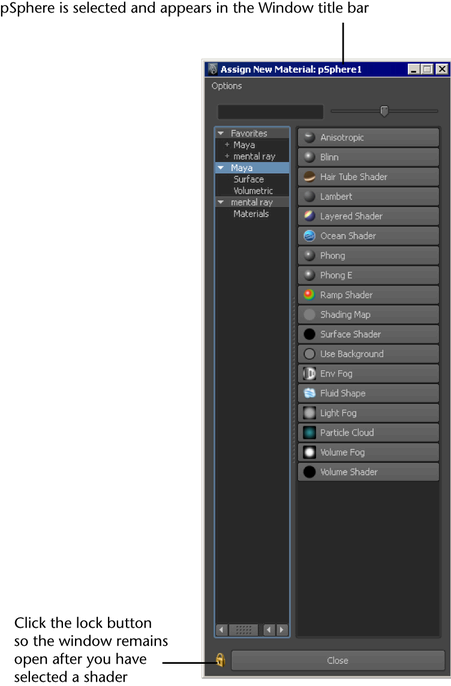

Lock button

Click the Lock button in the Assign New Material window so that the window remains open after you have selected a shader. Toggle the Lock button to enable and disable this behavior.

Note

When unlocked, the Assign New Material will close after you have selected a shading group.

Using this tool, you can easily experiment with different shading groups and view the effect of your changes in the scene view.

Selected objects are indicated in the window title bar

Objects that you selected before opening the Assign New Material window are displayed in the window title bar.

Options > Automatic Attribute Editor

If on (on by default), the Attribute Editor opens and displays the new material’s attributes.
