Once you have a skeleton with a valid character definition, you can create a Control rig for your character. Characters must
have a Control rig in order to receive retargeted animation.
NoteA Control rig is automatically created for your character when you select either or another character as its
Source in the , and you do not have to manually create the rig.
To create a Control rig
- Load an HIK character with a valid character definition. (See Create a HumanIK character definition.)
- Open the , , or . (See Open the HumanIK character setup tools.)
- Select your HIK character from the Current character menu.
- From the main menu button
, select .
The Control rig effectors are created based on the structure of the character’s skeleton (defined in the ).

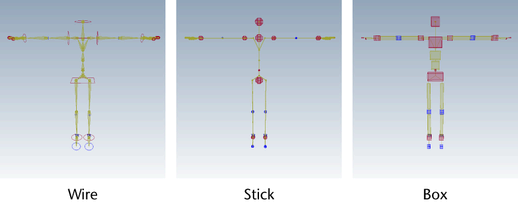

To change the default appearance of existing Control rig effectors
- In the , select , then select the effector type you want:
