Particle Cloud attributes




Common Material Attribute

You can set these attributes to a fixed value, or texture map them over the particles’ lifetime. If mapped, the V values of the map are mapped onto the particles’ lifetime. You can also control them with per-particle attributes using the Particle Sampler Info node.

Color

The basic color of the particle cloud. The default color is a green-blue.

Transparency

Controls how much you can see through the particle cloud. It is a color, so that you can control the transparency of the red, green, and blue channels separately. To make the cloud more opaque, set transparency to be darker. To make the cloud more transparent, set transparency to be brighter (transparency = 1-opacity).

Incandescence

Use Incandescence to make the particle cloud brighter, as though it were a light source. By default, Incandescence is black, meaning no glow will be added.

Note

When Incandescence is turned on, although the particle cloud will glow, it will not cast light on other objects in the scene.

Life Color

Determines the color at a particular time in the life of the particle. You can use the Particle Sampler Info node to animate this parameter over a particle’s lifetime (see Particle Sampler Info node).

Life Transparency

Determines the transparency at a particular time in the life of the particle. You can use the Particle Sampler Info node to animate this parameter over a particle’s lifetime (see Particle Sampler Info node).

Life Incandescence

Determines the incandescence at a particular time in the life of the particle. You can use the Particle Sampler Info node to animate this parameter over a particle’s lifetime (see Particle Sampler Info node).

Glow Intensity

Controls how much of a halo-like glow effect will be added to the particle cloud. This glow effect is added as a post-process, after the rendering is completed. Glow Intensity is zero by default, meaning that no glow is added.

Transparency

Density

Similar to transparency; it controls how dense the cloud of particles appears to be, and therefore how much of the background can be seen through it. Increase this value to make the cloud more dense.

Blob Map

Specifies a scaling factor applied to the transparency of the particle cloud. You can connect a 3d texture to it in order to give some internal texture or shape to the cloud beyond what it gets from the particles.

Roundness

Controls the noise’s irregularity. The smaller the value, the less rounded the shape.

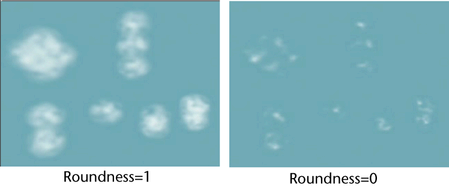

Click the image below to play an animation that shows the Roundness attribute changing from 1 to 0.

roundness.mov
Translucence

Specifies a scaling factor for density that is used to compute shadows only. The larger the translucence value, the more light penetrates. The formula is:

density * (1 - translucence)

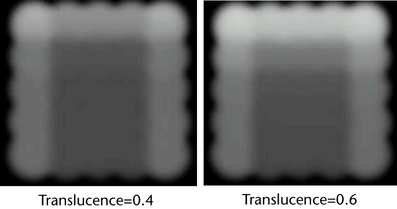

Click the image below to play an animation that shows the Translucence attribute changing from 0.4 to 0.6.

TranslucenceAtWork.mov

Built-in Noise

Noise

Controls the jitteriness within the particle cloud. If it is set to zero, the cloud will look very smooth and uniform throughout. As the amount of noise increases, the cloud will appear noisier, like static on a television screen. Noise is set to 0.75, by default.

Noise Freq

Determines the size of the noise artifacts when Noise is turned on. Higher values of Noise Frequency produce smaller, finer artifacts, and lower values produce larger, coarser artifacts. If Noise Frequency is set to zero, that is the same as turning Noise off.

Noise Aspect

Controls the distribution of the noise (when Noise is turned on). It is zero by default, meaning that the noise is equally distributed in X and Y. Positive values make the noise run perpendicular to the particle’s path. Negative values make the noise run more parallel to the path.

Noise Anim Rate

Specifies a scaling factor that controls the rate of built-in noise changes during an animation.

Solid Core Size

Determines the size of the core, which is the area where the particle is opaque.

Surface Shading Properties

Diffuse Coeff

Controls how much of the light in the scene is reflected from the particles. Most materials absorb some of the light falling on them, and scatter the rest.

The default value is 0.0. If you set this to 1.0, all the light falling on the material is reflected. Use a high value when you are creating dense clouds. If you set this to 0.0 (the minimum), no light is reflected and no surface shading occurs.

The surface color is modulated by the transparency. This value can be greater than 1.0, so the surface property can still appear even when the material is transparent.

Surface Color

Specifies the basic color of the particle cloud surface (as opposed to the inside of the cloud). Diffuse Coeff must be set to a value greater than 0 to enable this option.

Bump Mapping

Makes the surface appear rough or bumpy by altering surface normals (during rendering) according to the intensity of the pixels in the bump map texture. Diffuse Coeff must be set to a value greater than 0 to enable this option.

A bump map does not actually alter the surface. A silhouette of the surface will appear smooth.

Translucence Coeff

Simulates the way light diffusely penetrates through translucent objects. This means that when light shines on one side of the object, the other side is partially illuminated. You can use this to create effects such as clouds, fur, hair, marble, jade, wax, paper, leaves, etc. If you set Translucence Coeff to 0 (the default), no light shows through the object. If you set Translucence Coeff to 1, all the light shows through. Diffuse Coeff must be set to a value greater than 0 to enable this option.

Surface Shading Shadow

Determines if the surface shading is combined with the pre-illumination, which contains shadows, if enabled (see the Filter Radius attribute). Diffuse Coeff must be set to a value greater than 0 to enable this option.

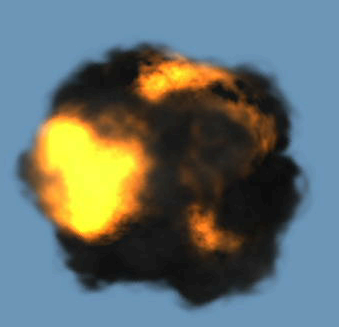

Click the image below to play an animation that shows Surface Shading Shadow.

explosion.mov

This cloud shader uses Surface color and Surface Shading Shadow to create an explosion.

Pre-illumination Controls

Filter Radius

Volumetric particles use pre-illumination, which evaluates the lighting at each particle’s center by default. This can sometimes cause popping if the illumination changes too fast in an animation, and is especially noticeable if Surface Shading Shadow is on.

Filter radius lets you filter the pre-illumination results so the value at each particle’s center will be the average of all the pre-illumination results within the filter radius. Higher values increase render time but produce smoother images.
