Paint fluid properties into grids




You can use the Paint Fluids Tool to place values in precise locations of a fluid grid, and you can edit existing values by scaling, smoothing, replacing, or adding to existing values with each brush stroke. The Paint Fluids Tool is an Artisan brush tool and therefore works like the other Artisan tools. For details, see How Artisan brush tools work in the Artisan guide.

To paint fluid property values, the Contents Method for the property must be defined as Static Grid or Dynamic Grid.

Paint in a 2D container

Painting property values in a 2D container is like painting on a canvas. Move the brush over the plane representing the container and drag to place property values in the grid.

To paint a fluid property in a 2D fluid container

  1. Select the fluid container.
  2. Select the Paint Fluids Tool and open the Tool Settings window (Fluid Effects > Add/Edit Contents > Paint Fluids Tool > ).
  3. If you are painting in a Dynamic Grid, make sure Auto Set Initial State is turned on in the Paint Attributes section of the Tool Settings window.

    This option saves the values you paint to an initial state cache file so that when you rewind to the first frame of a simulation after playing it, your original painted values are restored. The values are saved when you quit the Paint Fluids Tool, when you change the current time, and when you change your selection. For information on initial states, see Set the initial state of a fluid.

    Note

    You can manually set the initial state at any time by selecting Fluid Effects > Set Initial State. You can clear it by selecting Fluid Effects > Clear Initial State. Experienced users who are more comfortable painting fluids may prefer to work with Auto Set Initial State turned off and save manually.

  4. Beside Paintable Attributes, select the fluid property you want to paint. For details, see Paintable Attributes.

    If the selected fluid property is not set to Dynamic or Static Grid, you are prompted to set it.

  5. Modify any Paint Attributes settings.

    See Paint Attributes.

  6. Select a brush Profile, Paint Operation and Value. For details, see Fluid Effects > Add/Edit Contents > Paint Fluids Tool.
  7. Drag across the fluid container to paint.

Paint in a 3D container

To paint in a 3D container you actually paint in two dimensions on “slices” of the container. A slice is a plane in X, Y, or Z that represents where you paint. (You could think of a slice as the canvas.) You paint each slice individually, but the accumulative effect of adjacent slices is a 3D fluid.

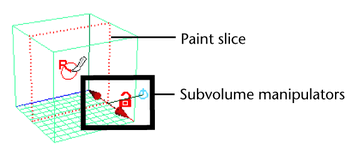

When you first select the Paint Fluids Tool, a paint slice displays at the origin of the fluid container. The slice is represented by a plane with dotted edges and fluid subvolume manipulators at one corner. When you move the pointer over the slice the pointer changes to a brush indicating that you can paint on the slice.

You control the location and thickness of the slices you paint using the fluid manipulators that appear at a corner of the slice. For details, see Display subvolumes of 3D containers.

To paint a fluid property in a 3D fluid container

  1. Select the fluid container.
  2. Select the Paint Fluids Tool and open the Tool Settings window (Fluid Effects > Add/Edit Contents > Paint Fluids Tool > ).
  3. If you are painting in a Dynamic Grid, make sure Auto Set Initial State is turned on in the Paint Attributes section of the Tool Settings window.

    This option saves the values you paint to an initial state cache file so that when you rewind to the first frame of a simulation after playing it, your original painted values are restored. The values are saved when you quit the Paint Fluids Tool, when you change the current time, and when you change your selection. For information on initial states, see Fluids initial state.

    Note

    You can manually set the initial state at any time by selecting Fluid Effects > Set Initial State. You can clear it by selecting Fluid Effects > Clear Initial State. Experienced users who are more comfortable painting fluids may prefer to work with Auto Set Initial State turned off and save manually.

  4. Beside Paintable Attributes, select the fluid property you want to paint. For details, see Paintable Attributes.

    If the selected fluid property is not set to Dynamic or Static Grid, you are prompted to set it.

  5. Modify any Paint Attributes settings.

    See Paint Attributes.

  6. Select a brush Profile, Paint Operation and Value. For details, see Fluid Effects > Add/Edit Contents > Paint Fluids Tool.
  7. Move the paint slice to the slice you want to paint.

    See Move the paint slice or subvolume.

    The help line displays the location of the paint slice. For example:

    Fluid Slice Location: 4.000

    The number of slices along each axis corresponds with the resolution of the fluid container. The numbering starts at 0. So if the resolution of the container is 10 10 10, then the slices are numbered from 0 to 9.

  8. If you want your strokes to affect only a portion of the container, display the subvolume you want them to affect. See Change the thickness of the subvolume.
  9. To paint through multiple slices, in the Stroke section of the Paint Fluids Tool Settings editor, increase the Stamp Depth (3D) to a value large enough to paint through the slices. The brush provides feedback indicating how deep the stroke will paint on either side of the paint slice.

    If you make the brush depth thicker than the depth of a displayed subvolume, only the subvolume will be painted.

  10. Drag the brush across the paint slice.
  11. Move the paint slice and paint. Repeat until you’ve painted all the values you want in the container.
    TipTumble to change the view axes when you paint slices. Painting properties relative to different axes is good practice to ensure there are no gaps between slices when the fluid is viewed from different angles.

    Lock the view axes to prevent the paint slice from switching to another axis as you paint.

    For details, see Display subvolumes of 3D containers.

Flood a container with values

Flooding a container is like taking a huge brush and applying its settings to all the voxels in the container or selected subvolume. When you flood a fluid container, the voxel values for the selected fluid property change according to the value and operation set for the tool.

To flood a container

  1. Follow the first 5 steps under To paint a fluid property in a 2D fluid container.
  2. Display the slices you want to flood and click the Flood button (hotkey: +f):
    • To flood the entire container, set the target manipulator to its default position,
    • To flood a subvolume, display the subvolume.

    For details, see Display subvolumes of 3D containers.

    Tip

    To smooth the transition between values, select the Smooth paint operation and flood the container or subvolume.

Paint during playback

You can paint a fluid while playback is running to get a feel for the dynamics. For example, you can paint Density and watch it the simulation run as you paint Velocity.

You are not prompted to save your initial state when you start paint during playback. Anything painted during playback will be lost. (If Auto set initial state is on, the results of your last painted stroke will still be saved as your initial state.)

Map values to container voxels

You can map image values into container voxels. The settings for the Paint Fluids Tool are applied to the voxels using the mapped values.

When you import an image into a 3D fluid, the values are mapped to the subvolume slices indicated by the subvolume manipulator.

When you export an image from a 3D fluid, the values that are exported are the values on the paint slice.

The values import/export as follows:

For details on mapping, see Map attributes in the Artisan guide.

NoteIf you import a map with no Alpha channel (RGB data only) for properties expecting an Alpha channel (Density and Color, or Velocity) the result will be the Alpha being equal to luminance (RGB).

Imported/exported Alpha values are remapped into/from the Min Value to Max Value range in the Paint Fluid Tool Settings.

Display painted values

You can select how you want the property values to display in shaded display mode as you paint. By default, only the values for the property you are painting display, but you can change this to display all the properties in the container as they would render. For details, see Display.

Reset the Paint Fluids Tool

Click the Reset Tool button in the Tool Settings window to reset the Paint Fluids Tool to its default settings.

Undo paint strokes

You can undo as many paint strokes as defined in the Undo category of the Preferences window (Window > Settings/Preferences > Preferences).

Paint Fluids Tool settings

Before you paint attributes, set options for the Paint Fluids Tool in the Tool Settings editor (Fluid Effects > Add/Edit Contents > Paint Fluids Tool > ).

The settings in the Paint Attributes section determine the effect you will achieve when you paint with the tool. These settings are described in Paint Attributes.

For information on the other settings, see Fluid Effects > Add/Edit Contents > Paint Fluids Tool.
