Detailed Description

FBX SDK event base class.

An event is something that is emitted by an emitter, with the goal of being filled by the listener that listen to it. You can see that like a form that you send to some people. If those people know how to fill the form, they fill it and return it to you with the right information in it. FBX object could be used as emitter, since KFbxObject is derived from KFbxEmitter. Meanwhile, plug-in could be used as listener, since KFbxPlugin is derived from KFbxListener. The derived class of KFbxEventBase contains a type ID to distinguish different types of events. FBX object can emit different types of FBX events at different conditions.

The whole process of event is:

1. Create an emitter and a listener, then bind them together via the same event handler.
2. Emitter can emit an event at certain conditions. The event could be handled by event handler.
3. Once an event is emitted, the listener to this event will receive a signal.
4. And then the listener could process the event data according to the types of event, by calling event handler.

Note:: The event data is process by the callback function of event handler. For example, if a certain property of a FBX object is changed, the FBX object(emitter) can emit an event which type is KFbxObjectPropertyChanged. The plug-in(listener) who are listening to KFbxObjectPropertyChanged, will receive a signal and take action to process the event data.

See also:: KFbxEvent KFbxEventHandler KFbxListener KFbxEmitter

Definition at line 69 of file kfbxevents.h.

#include <kfbxevents.h>

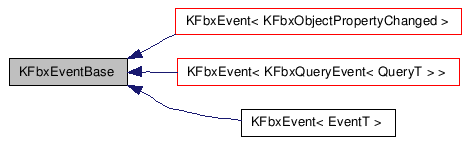

Inheritance diagram for KFbxEventBase:

[legend]

List of all members.

Public Member Functions
virtual int	GetTypeId () const =0
	Retrieve the event type ID.
virtual const char *	GetEventName () const =0
	Force events to give us a name.
Static Protected Member Functions
static int	GetStaticTypeId (char const *)
Constructor and Destructor
virtual	~KFbxEventBase ()
	Destructor.
