KFbxConstraint Class Reference

This reference page is linked to from the following overview topics: Supported Scene Elements, FBX Nodes, Transformation Data, List of Python FBX classes.

Search for all occurrences

Detailed Description

Base class for weighted animation constraints.

Constraints are primarily used to impose limits on properties of objects (e.g. position, orientation, scale) and to automate animation processes. A constrained object is an object with properties constrained by one or more weighted constraint sources.

Definition at line 60 of file kfbxconstraint.h.

#include <kfbxconstraint.h>

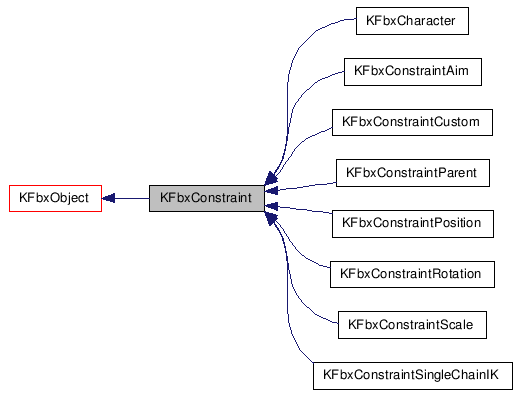

Inheritance diagram for KFbxConstraint:

Inheritance graph

[legend]

List of all members.

Public Types
enum	EConstraintType { eUNIDENTIFIED, ePOSITION, eROTATION, eSCALE, ePARENT, eSINGLECHAIN_IK, eAIM, eCHARACTER_CONSTRAINT, eCUSTOM, eCONSTRAINT_COUNT }
	Constraint attribute types. More...
Public Member Functions
virtual EConstraintType	GetConstraintType () const
	Access the type of the constraint.
virtual KFbxObject *	GetConstrainedObject () const
	Retrieve the constrained object.
virtual int	GetConstraintSourceCount () const
	Retrieve the count of constraint source.
virtual KFbxObject *	GetConstraintSource (int pIndex) const
	Retrieve a constraint source with the specified index.
virtual void	SetOffset (KFbxVector4 pOffset)
	Set value of the offset.
double	GetSourceWeight (const KFbxObject *pObject) const
	Get the weight associated with a constraint source.
Protected Member Functions
	KFbxConstraint (KFbxSdkManager &pManager, char const *pName)
virtual bool	ConstructProperties (bool pForceSet)
Friends
class	KFbxScene
Properties
KFbxTypedProperty< fbxDouble1 >	Weight
	This property represents the degree of influence of a constraint from 0.0 (no influence) to 100.0 (full influence).
KFbxTypedProperty< fbxBool1 >	Active
	This property controls whether the constraint is applied or not.
KFbxTypedProperty< fbxBool1 >	Lock
	This property handles the lock state of the constraint.
Error Management
enum	EError { eERROR, eERROR_COUNT }
	Error identifiers. More...
KError &	GetError ()
	Retrieve error object.
EError	GetLastErrorID () const
	Get last error code.
const char *	GetLastErrorString () const
	Get last error string.

Member Enumeration Documentation

enum EConstraintType

Search for all occurrences

Constraint attribute types.

eUNIDENTIFIED Invalid constraint.
ePOSITION Position constraint (referred to as a point constraint in Maya).
eROTATION Rotation constraint (referred to as an orient constraint in Maya).
eSCALE Scale constraint.
ePARENT Parent constraint.
eSINGLECHAIN_IK Single chain IK constraint.
eAIM Aim constraint.
eCHARACTER_CONSTRAINT Character.
eCUSTOM Constraint defined by customers.
eCONSTRAINT_COUNT The count of constraint type.

Enumerator:

eUNIDENTIFIED	Search for all occurrences
ePOSITION	Search for all occurrences
eROTATION	Search for all occurrences
eSCALE	Search for all occurrences
ePARENT	Search for all occurrences
eSINGLECHAIN_IK	Search for all occurrences
eAIM	Search for all occurrences
eCHARACTER_CONSTRAINT	Search for all occurrences
eCUSTOM	Search for all occurrences
eCONSTRAINT_COUNT	Search for all occurrences

Definition at line 103 of file kfbxconstraint.h.

    {
        eUNIDENTIFIED,
        ePOSITION,
        eROTATION,
        eSCALE,
        ePARENT,
        eSINGLECHAIN_IK,
        eAIM,
        eCHARACTER_CONSTRAINT,
        eCUSTOM,
        eCONSTRAINT_COUNT
    } EConstraintType;

Search for all occurrences

Error identifiers.

eERROR
eERROR_COUNT

Enumerator:

eERROR	Search for all occurrences
eERROR_COUNT	Search for all occurrences

Reimplemented in KFbxCharacter.

Definition at line 163 of file kfbxconstraint.h.

        {
            eERROR,
            eERROR_COUNT
        } EError;

Constructor & Destructor Documentation

KFbxConstraint	(	KFbxSdkManager &	pManager,
		char const *	pName
	)		`[protected]`

Member Function Documentation

virtual EConstraintType GetConstraintType ( ) const [inline, virtual]

Search for all occurrences

Access the type of the constraint.

Returns:: This type of the constraint.

Reimplemented in KFbxCharacter, KFbxConstraintAim, KFbxConstraintCustom, KFbxConstraintParent, KFbxConstraintPosition, KFbxConstraintRotation, KFbxConstraintScale, and KFbxConstraintSingleChainIK.

Definition at line 120 of file kfbxconstraint.h.

{ return eUNIDENTIFIED; }

virtual KFbxObject* GetConstrainedObject ( ) const [inline, virtual]

Search for all occurrences

Retrieve the constrained object.

Returns:: The constrained object.

Reimplemented in KFbxConstraintAim, KFbxConstraintParent, KFbxConstraintPosition, KFbxConstraintRotation, and KFbxConstraintScale.

Definition at line 125 of file kfbxconstraint.h.

{ return NULL; }

virtual int GetConstraintSourceCount ( ) const [inline, virtual]

Search for all occurrences

Retrieve the count of constraint source.

Returns:: The count of constraint source.

Reimplemented in KFbxConstraintAim, KFbxConstraintParent, KFbxConstraintPosition, KFbxConstraintRotation, and KFbxConstraintScale.

Definition at line 130 of file kfbxconstraint.h.

{ return 0; }

virtual KFbxObject* GetConstraintSource ( int pIndex ) const [inline, virtual]

Search for all occurrences

Retrieve a constraint source with the specified index.

Parameters:

pIndex The specified index.

Returns:: The constraint source at the specified index.

Reimplemented in KFbxConstraintAim, KFbxConstraintParent, KFbxConstraintPosition, KFbxConstraintRotation, and KFbxConstraintScale.

Definition at line 136 of file kfbxconstraint.h.

{ return NULL; }

virtual void SetOffset ( KFbxVector4 pOffset ) [virtual]

Search for all occurrences

Set value of the offset.

Parameters:

pOffset Offset vector value.

Reimplemented in KFbxConstraintAim, KFbxConstraintPosition, KFbxConstraintRotation, and KFbxConstraintScale.

double GetSourceWeight ( const KFbxObject * pObject ) const

Search for all occurrences

Get the weight associated with a constraint source.

Parameters:

pObject The given constraint source.

Returns:: The weight of the constraint source.

KError& GetError ( )

Search for all occurrences

Retrieve error object.

Returns:: Reference to error object.

EError GetLastErrorID ( ) const

Search for all occurrences

Get last error code.

Returns:: Last error code.

const char* GetLastErrorString ( ) const

Search for all occurrences

Get last error string.

Returns:: Textual description of the last error.

virtual bool ConstructProperties ( bool pForceSet ) [protected, virtual]

Search for all occurrences

Reimplemented from KFbxObject.

Reimplemented in KFbxConstraintAim, KFbxConstraintParent, KFbxConstraintPosition, KFbxConstraintRotation, KFbxConstraintScale, and KFbxConstraintSingleChainIK.

Friends And Related Function Documentation

friend class KFbxScene [friend]

Search for all occurrences

Reimplemented from KFbxObject.

Reimplemented in KFbxCharacter.

Definition at line 201 of file kfbxconstraint.h.

Member Data Documentation

KFbxTypedProperty<fbxDouble1> Weight

Search for all occurrences

This property represents the degree of influence of a constraint from 0.0 (no influence) to 100.0 (full influence).

Default value is 100.0.

Definition at line 73 of file kfbxconstraint.h.

KFbxTypedProperty<fbxBool1> Active

Search for all occurrences

This property controls whether the constraint is applied or not.

If the value is false the constraint will have no effect. The default value is true.

Default value is true.

Definition at line 80 of file kfbxconstraint.h.

KFbxTypedProperty<fbxBool1> Lock

Search for all occurrences

This property handles the lock state of the constraint.

When enabled, the constrained object cannot be moved away from its constrained location when the constraint is active.

Default value is false.

Definition at line 88 of file kfbxconstraint.h.

The documentation for this class was generated from the following file:

fbxfilesdk/kfbxplugins/kfbxconstraint.h
