Use the Separate command to separate the red, green, and blue channels of a clip. A monochrome clip containing the information from the selected colour channel only appears. For example, to generate a clip containing the red channel information of a source clip, select Red.

To separate colour channels:

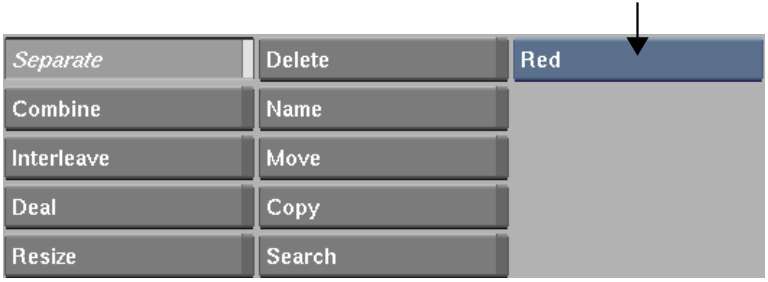

1. In the Main menu, click Format.
2. In the Format menu, click Separate.

   The Channel box appears.

3. Select the channel you want to separate from the Channel box.




   Select:	To generate:
   Red	A monochrome clip containing only red channel information.
   Green	A monochrome clip containing only green channel information.
   Blue	A monochrome clip containing only blue channel information.
   All	Three monochrome clips: one for each channel.

4. Select the source clip.
5. Select the destination reel.
6. The clip(s) are generated and appear on the destination reel.
