Using the Triptych Player with Vertical Editing




The Triptych Player displays three windows simultaneously. It is useful for monitoring and editing several layers of a vertical edit. For example, you may be working with a multi-camera setup and need to monitor three different cameras at the same timecode to decide your cuts. You can view each layer in a different Triptych Player window. You can then move the focus points to different layers and perform editing operations to any layer by making a different Triptych Player window active.

You can also use the Triptych Player to monitor outgoing, current, and incoming shots simultaneously.

To display the Triptych Player:

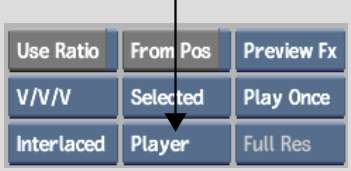

  1. From the record timeline, select Triptych from the Player Type box.

    Show small imageShow large image

  2. Select an option from the Triptych View Mode box to control the material displayed in the Triptych windows.

    Show small imageShow large image

Use: To view:
Prev/Next The last frame of the previous clip and the first frame of the following clip.
In/Out The first and last frames of the current element.
Free Any clip at any point in time. Set the view by moving the positioners and focus points.
Locked The positioners with fixed offsets as you move them through the timeline.
Aligned All three focus points at the same timecode.

In Timeline view, three positioners appear, one for each Triptych Player window. In Free mode, each Triptych Player window has its own transport controls. In Lock or Aligned mode, only the centre Triptych Player window has transport controls. You can use Free mode to move each positioner independently, or Lock or Align mode to move all positioners simultaneously.

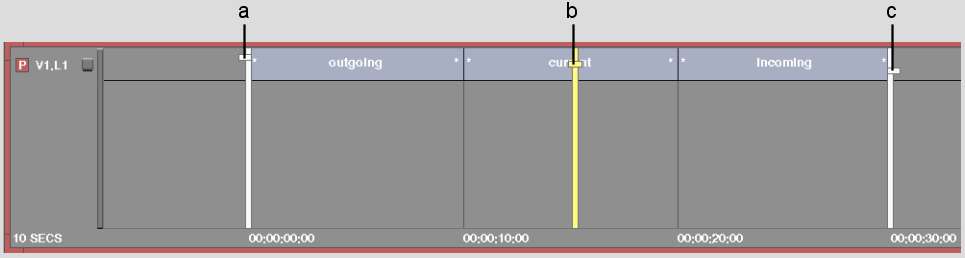

The focus point for the Triptych positioners is slightly different from that of the standard positioner. The focus point for the left Triptych Player window appears on the left side of the positioner. The focus point for the right Triptych Player window appears on the right side of the positioner.

Show small imageShow large image

(a) Focus point for left Triptych Player window  (b) Focus point for centre Triptych Player window  (c) Focus point for right Triptych Player window  

To move the focus point to another layer:

  1. Make the positioner active by clicking it or by clicking anywhere in the Triptych Player window.
  2. Use the up or down arrow to move the focus point to a new layer.

    The focus point moves and the image updates in the Triptych Player window.

    NoteWhen you move the focus point with the up or down arrow, or by dragging it, the focus layer is also updated. Depending on the preview mode you are using, you may need to refresh the Player view for the entire vertical edit. To change the focus point without also updating the focus layer, hold Ctrl while using the up and down arrows.
