Using the Triptych Player for Multi-camera Edits




If your timeline contains a multi-camera setup, use the Triptych Player to monitor three layers simultaneously to make your vertical edits. For example, if you have three layers, use the Triptych Player to monitor each camera in a different Player window to make your edit decisions.

Show small imageShow large image

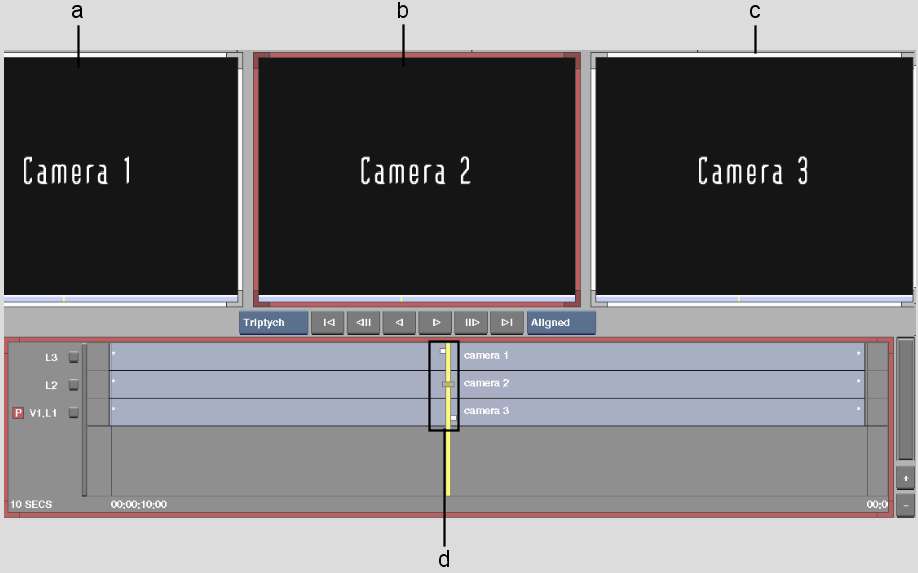

(a) Left Triptych Player window  (b) Centre Triptych Player window (active)  (c) Right Triptych Player window  (d) Focus points 

To use the Triptych Player for multi-cam edits:

  1. Display the Triptych Player.
  2. Click anywhere in a Player window to make it active.

    A red border appears.

  3. Move the focus point to the layer you want to use by dragging it or using the up and down arrows.
  4. Select Aligned in the Triptych View Mode box.

    All three Triptych positioners snap to the same timecode.

  5. Move the positioner.

    All three positioners move and the image in each Player window updates.
