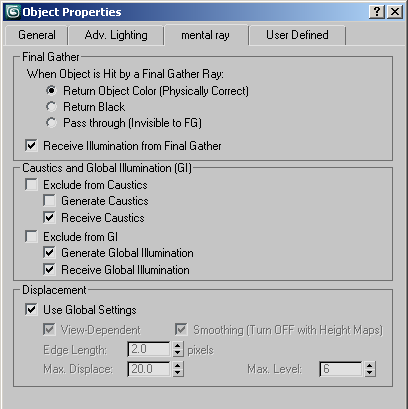

Final Gather group

These settings let you specify how an object interacts with the final gather process.

When Object is Hit by a Final Gather Ray

• Return Object Color (Physically Correct)Returns the object’s material color at the point that the final gather ray intersects it, and contributes to final gather illumination. This is the default mode.
• Return BlackBlocks final gather rays, returning no color, thus not shading the object at all.
• Pass through (Invisible to FG)Prevents the final gather process from seeing the object during ray casting. This is useful for ignoring the light contribution from small, complex objects like blades of grass. The final gather rays pass through and strike the underlying object, such as a ground plane that is easier to shade.

Receive Illumination from Final Gather

When on, the object is subject to illumination from final gather rays. When off, the object is not illuminated by final gather rays. Default=on.

Caustics and Illumination group

These settings determine whether and how the object participates in the simulation of caustics and global illumination (photons). To use these capabilities, the respective check boxes must also be enabled on the Render Setup dialog's Caustics And Global Illumination rollout.

Exclude from Caustics

When on, the object does not participate in the caustics solution. When off, the additional caustics-related object properties are available. Default=off.

Generate Caustics

When on, the object can generate caustics. When off, the object does not generate caustics. Default=off.

Receive Caustics

When on, the object can receive caustics. That is, caustic effects are cast onto this object. When off, the object does not receive caustics. Default=on.

Exclude from GI

When on, the object does not participate in the global-illumination solution. When off, the additional global-illumination-related object properties are available. Default=off.

Generate Global Illumination

When on, the object can generate global illumination. When off, the object does not generate global illumination. Default=off.

Receive Global Illumination

When on, the object can receive global illumination. That is, reflected light is cast onto this object. When off, the object does not receive global illumination. Default=on.

Displacement group

These settings let you apply displacement parameters on a per-object basis.

Use Global Settings

When on, applies to all objects the Displacement settings on the Render Setup dialog Renderer panel Shadows and Displacement rollout. Turn off to make settings on a per-object basis. Default=on.

View-Dependent

Defines the space for displacement. When View-Dependent is on, the Edge Length setting specifies the length in pixels. When off, Edge Length is specified in world-space units. Default=on.

Smoothing

Turn off to have the mental ray renderer correctly render height maps. Height maps can be generated by normal mapping; see Creating and Using Normal Bump Maps.

When on, mental ray simply smoothes the geometry using the interpolated normals, making the geometry look better. This result, however, cannot be used for height map displacement because smoothing affects geometry in a way that is incompatible with height mapping.

Edge Length

Defines the smallest allowable edge length. The mental ray renderer will stop subdividing an edge once it reaches this size. Default=2.0 pixels.

Max. Displace

Controls the maximum offset, in world units, that can be given to a vertex when displacing it. This value can affect the bounding box of an object. Default=20.0.

TipIf displaced geometry appears to be “clipped,” try increasing the value of Maximum Displace.

NoteWhen using placeholders (see the Translator Options rollout), if this value is larger than it needs to be, it can reduce performance. If you experience slow times while displaced objects when Use Placeholder Objects is on, try lowering the Max. Displace value.

Max. Level

Controls how many times a triangle can be subdivided. Default=6.
