Flare Ring Parameters



Command entry:Rendering menu Video Post Video Post toolbar (Add Image Filter Event) Choose Lens Effects Flare from Filter Plug-In list. Setup Ring tab

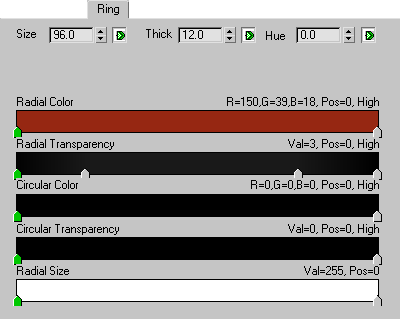

The ring is a circular color band that surrounds the center of the source object. You set ring options on the Ring panel of the Lens Effects Flare dialog.

Interface

Size

Specifies the overall size of the ring as a percentage of the overall frame and represents the diameter of the ring. The ring radius should be larger than the glow radius to make the lens flare look convincing. This parameter is separate from the overall size spinner in the Lens Flare Effects section of the dialog. This parameter can be animated.

Thick

Specifies the overall thickness of the ring, as a percentage of the overall size of the frame. When the ring is fairly thick, the size of the ring is measured to the inner radius. The thickness controls how thick the ring is from that point outward. This parameter can be animated.

Hue

Specifies the gradation of color for the ring. This parameter can be animated.

Gradients

Use radial, circular, transparency, and size gradients.
