Polygon Modeling Panel



Command entry:Modeling ribbon Graphite Modeling Tools tab Polygon Modeling panel

The Polygon Modeling panel includes tools for switching sub-object levels, navigating the modifier stack, converting objects to editable poly and Edit Poly, and more.

Because this is perhaps the most commonly used panel, you might want to float it separate from the modeling ribbon (“tear” it off by dragging the panel label), and use the rest of the ribbon minimized, to maximize screen real estate.

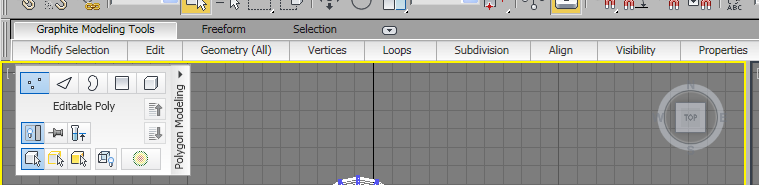

Recommended setup: The modeling ribbon is docked and minimized, while the Polygon Modeling panel floats.

Interface

Polygon Modeling panel on minimized ribbon

Polygon Modeling panel on maximized ribbon, with expansion

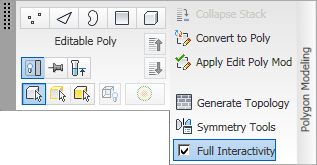

Polygon Modeling panel floating, with expansion

NoteThe sub-object level buttons on the Polygon Modeling panel provide the same selection-conversion features as their counterparts on the Modify panel. For details, see Converting Sub-object Selections.
Vertex

Accesses the Vertex sub-object level, which lets you select a vertex beneath the cursor; region selection selects vertices within the region.

Edge

Accesses the Edge sub-object level, which lets you select a polygon edge beneath the cursor; region selection selects multiple edges within the region.

Border

Accesses the Border sub-object level, which lets you select a sequence of edges that borders a hole in the mesh. A border comprises only connected edges with faces on only one side of them, and is always a complete loop. For example, a default box primitive doesn't have a border, but the teapot object has a couple of them: one each on the lid, the body, and the spout, and two on the handle. If you create a cylinder and delete one end, the row of edges around that end forms a border.

When Border sub-object level is active, you can't select edges that aren't on borders. Clicking a single edge on a border selects that whole border.

You can cap a border, either with the Cap function or by applying the Cap Holes modifier. You can also connect borders between objects with the Connect compound object.

Note

The Edge and Border sub-object levels are compatible, so if you go from one to the other, any existing selection is retained.

Polygon

Accesses the Polygon sub-object level, which lets you select polygons beneath the cursor. Region selection selects multiple polygons within the region.

Element

Accesses the Element sub-object level, which lets you select all contiguous polygons in an object. Region selection lets you select multiple elements.

Note

The Polygon and Element sub-object levels are compatible, so if you go from one to the other, any existing selection is retained.

Modify Mode/[stack level]

Switches to the Modify panel, or if the Modify panel is active, shows the current modifier stack level.

Usage examples:

  • if any object is selected and any command panel other than the Modify panel is active, the button label reads “Modify Mode.”
  • For an object with no modifiers, if the Modify panel is active and the object type is anything other than editable poly or Edit Poly, the button is unavailable; otherwise the button shows the object type, such as “Editable Poly.”
  • If the Modify panel is active and the current stack level is a modifier, the button shows the name of the modifier.
TipWhen the Modify panel is active, you can navigate the modifier stack with the Next/Previous Modifier controls (see following).
Toggle Command Panel

Toggles visibility of the command panel.

NoteClicking this button always makes the Modify panel active.
Pin Stack

Locks the modifier stack and modeling ribbon controls to the currently selected object so they remain with that object regardless of subsequent changes in selection.

TipPin Stack is useful for transforming another object while keeping your place in the modified object's stack.
Show End Result (off/on)

Shows the selected object as it appears after all modifications in the stack have taken place, regardless of your current position in the stack.

When this toggle is off, the object appears as modified up to the current modifier in the stack.

Next/Previous Modifier

Moves up or down the stack, respectively, making the next highest or lowest modifier current.

Equivalent to clicking the entry above or below the current one in the modifier stack.

Preview

This option lets you preview a sub-object selection before committing to it. You can preview at the current sub-object level, or switch sub-object levels automatically based on the mouse position. The choices are:

  • Preview OffNo preview is available.
  • Preview SubObjectEnables previewing at the current sub-object level only. As you move the mouse over the object, the sub-object under the cursor highlights in yellow. To select the highlighted object, click the mouse.

    To select multiple sub-objects at the current level, press and hold Ctrl, move the mouse to highlight more sub-objects, and then click to select all highlighted sub-objects.

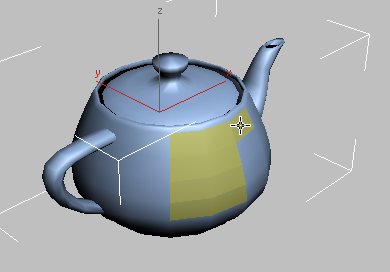

    Polygon sub-object selection preview with Ctrl held down

    To deselect multiple sub-objects at the current level, press and hold Ctrl+Alt, move the mouse to highlight more sub-objects, and then click a selected sub-object. This deselects all highlighted sub-objects.

  • Preview MultiWorks like Preview SubObject, but also switches among the Vertex, Edge, and Polygon sub-object levels on the fly, based on the mouse position. For example, if you position the mouse over an edge, the edge highlights, and then clicking activates the Edge sub-object level and selects the edge.

    To select multiple sub-objects of the same type, press and hold Ctrl after highlighting a sub-object, move the mouse to highlight more sub-objects, and then click to activate that sub-object level and select all highlighted sub-objects.

    To deselect multiple sub-objects at the current sub-object level, press and hold Ctrl+Alt, move the mouse to highlight more sub-objects, and then click a selected sub-object. This deselects all highlighted sub-objects. Note that this method does not switch sub-object levels.

NoteWhen Ignore Backfacing (see following) is off, you’ll see backfacing vertices and edges highlight while previewing a sub-object selection.
Ignore Backfacing

Toggles selection of backfacing sub-objects.

When on, selection of sub-objects affects only those facing you. When off (the default), you can select any sub-object(s) under the mouse cursor, regardless of their visibility or facing.

Use Soft Selection

Toggles Soft Selection and the Soft Panel, with settings for controlling how Soft Selection works. Available only at sub-object levels.

When off, transforming a sub-object selection affects only those sub-objects.

When on, partially selects sub-objects near an explicit selection, depicted as a color gradient. Transforming then falls off with distance from explicitly selected sub-objects.

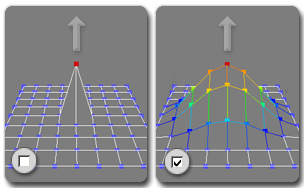

Left: Vertex moved with Soft Selection off

Right: Vertex moved with Soft Selection on

NoteWhen the modeling ribbon is maximized or the Polygon Modeling panel floats, the following controls appear on the Polygon Modeling panel expansion.
Collapse Stack

Same as Collapse All: Collapses the selected object’s entire stack to an editable object that preserves the cumulative effect of the collapsed modifiers on the base object. See Collapsing the Stack.

You can use the Graphite Modeling Tools with an object that results from collapsing the stack only if it’s an editable poly.

Convert to Poly

Converts the object to editable poly format and switches to Modify mode.

This is the quickest way to start using the Graphite Modeling Tools on an object.

Apply Edit Poly Mod

Applies the Edit Poly modifier to the object and switches to Modify mode.

Generate Topology

Opens the Topology Dialog with tools for adjusting the object’s geometric makeup.

Symmetry Tools

Opens the Symmetry Tools Dialog with controls for making models symmetrical.

Full Interactivity

Toggles the level of feedback for the QuickSlice and Cut tools, as well as all settings dialogs and caddies. Available with editable poly objects, but not the Edit Poly modifier.

When on (the default), 3ds Max updates the viewport in real time as you use the mouse to manipulate the tool or change a numeric setting. With Cut and QuickSlice, when Full Interactivity is off, only the rubber-band line is visible until you click. Similarly, with numeric settings in caddies, the final result is visible only when you release the mouse button after changing the setting.

The state of Full Interactivity doesn't affect changing a numeric setting from the keyboard. Whether it's on or off, the setting takes effect only when you exit the field by pressing Tab or Enter, or by clicking a different control in the dialog.

See Also
  • Soft Panel

    The Soft panel opens when Use Soft Selection is on, and provides controls for modifying how Soft Selection works. For details, see Soft Selection Rollout

  • Topology Dialog

    The topology tools rework an object’s mesh subdivision into procedurally generated patterns. You can apply a topology pattern over an entire surface or a selected section.

  • Symmetry Tools Dialog

    These are tools for making models symmetrical when using the Symmetry modifier is not an option, such as when working with morph targets. You can model one side of the model and apply these tools to make it symmetrical about an axis.
