Mix Map



Command entry: Material Editor Material/Map Browser Maps Standard Mix

With the Mix map, you can combine two colors or materials on a single side of the surface. You can also animate the Mix Amount parameter, and draw map morphing function curves to control how the two maps are blended over time.

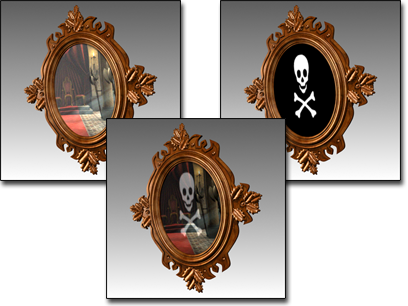

Mix map blends skull and crossbones with the reflected scene.

Viewports can display both maps in a mix map. For multiple map display, the display driver must be OpenGL or Direct3D. The software display driver does not support multiple map display.

Procedures

To change a component color:

  1. On the Mix Parameters rollout, click one of the two color swatches to display the Color Selector.
  2. Adjust the color.

To use a map as a color component:

  1. On the Mix Parameters rollout, click a map button next to one of the two color swatches.

    3ds Max opens the Material/Map Browser.

  2. Select a map type.

    Alternatively, use the Slate Material Editor to wire a map to the Color 1 or Color 2 component.

To exchange the two component colors:

To control the mix amount:

To control the mix amount using a map:

To control the mix amount using the mix curve:

  1. In the Mixing Curve group, turn on Use Curve.
  2. Change the shape of the curve by adjusting the Transition Zone values.

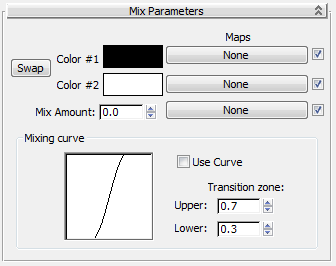

Interface

Swap

Exchanges the two colors or maps.

Color # 1, Color # 2

Displays the Color Selector to select the two colors to be mixed.

Maps

Select or create the bitmaps or procedural maps to be mixed instead of each color.

The check boxes enable or disable their associated maps.

Black areas of the map reveal color #1, and white areas of the map reveal color #2. Gray values reveal intermediate mixes.

Mix Amount

Determines the proportion of the mix. 0 means only Color 1 is visible on the surface, 1 means only Color 2 is visible. You can also use a map instead of the mix amount. The two colors will mix in greater or lesser degree according to the intensity of the map.

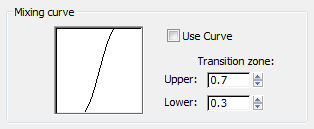

Mixing Curve group

These parameters control how gradual or how sharp the transition between the two colors being mixed will be. (This really only has meaning when you have a map applied to Mix Amount.)

TipTry mixing two standard materials using a noise map as a mask for some interesting mottled effects.
Use Curve

Determines whether the Mixing Curve effects the mix.

Transition Zone

Adjusts the level of the upper and lower limits. If the two values are the same, the two materials will meet at a definite edge. Wider ranges give more gradual mixing.
