FBLight - Lights

Lights

Lights are encapsulated by the FBLight class. An FBLight is created using the FBLight() constructor. The light's diffuse color FBLight.Diffuse property controls the color of the light being emitted into the scene. A light's behavior (FBLight.LightType) can be assigned to a value of FBLightType. The enumeration values of FBLightType are described in the following table.

Light Type	Description
FBLightType.kFBLightTypePoint	Point Light. Light radiates from the center of the light, illuminating models in the scene. The FBLight.ConeAngle and FBLight.FogIntensity properties do not apply to point lights.
FBLightType.kFBLightTypeInfinite	Infinite Light. Light shines uniformly onto the scene, based on its rotation vector. The light's direction is not affected by its translation vector. The FBLight.ConeAngle and FBLight.FogIntensity properties do not apply to infinite lights.
FBLightType.kFBLightTypeSpot	Spot Light. Light shines from a position in the scene. The FBLight.ConeAngle affects the size of the cone, while the FBLight.FogIntensity property affects the opacity of the fog emitted from the light source.

NoteThe attenuation type of a light (FBLight.AttenuationType) can be set to no attenuation (FBAttenuationType.kFBAttenuationNone), linear (FBAttenuationType.kFBAttenuationLinear), or quadratic (FBAttenuationType.kFBAttenuationQuadratic). However, the attenuation is only visible if a dynamic lighting shader has been applied to the models in the scene. For more information, consult the Example: Dynamic Lighting section below.

In the following program, an infinite light (red), a point light (green), and a spot light (blue) project their light onto a sphere in the scene.

from pyfbsdk import *


###############################################################
# Helper Function(s).                                         #
###############################################################

# Create an infinite light.
def createInfiniteLight():
    infLight = FBLight('myInfiniteLight')
    infLight.LightType = FBLightType.kFBLightTypeInfinite
    infLight.Translation = FBVector3d(-100, 75, 0)
    infLight.Rotation = FBVector3d(0, 0, 145)
    infLight.DiffuseColor = FBColor(1, 0, 0)
    infLight.Show = True

# Create a point light.
def createPointLight():
    pointLight = FBLight('myPointLight')
    pointLight.LightType = FBLightType.kFBLightTypePoint
    pointLight.Translation = FBVector3d(100, 75, 0)
    pointLight.DiffuseColor = FBColor(0, 1, 0)
    pointLight.Show = True

# Create a spotlight.
def createSpotLight():
    spotLight = FBLight('mySpotLight')
    spotLight.LightType = FBLightType.kFBLightTypeSpot
    spotLight.Translation = FBVector3d(0, 150, 0)
    spotLight.DiffuseColor = FBColor(0, 0, 1)
    spotLight.Intensity = 200
    spotLight.ConeAngle = 90
    spotLight.Show = True

# Create a sphere.
def createSphere():
    sphere = FBCreateObject( 'Browsing/Templates/Elements/Primitives', 'Sphere', 'Sphere' )
    sphere.Name = 'mySphere'
    sphere.Translation = FBVector3d(0, 50, 0)
    sphere.Scaling = FBVector3d(4, 4, 4)
    sphere.Show = True


###############################################################
# Main.                                                       #
###############################################################
# Clear the scene.
FBApplication().FileNew()

# Create a sphere and the various light types.
createSphere()
createInfiniteLight()
createPointLight()
createSpotLight()

Ambient Light

The FBGlobalLight object represents the ambient light in the scene. A reference to the ambient light can be obtained via FBGlobalLight(). The ambient light color (FBGlobalLight.AmbientColor), and fog properties (FBGlobalLight.FogEnable, FBGlobalLight.FogColor, FBGlobalLight.FogDensity) can be accessed through this object.

In the following program, we set the ambient light's color, and enable the fog. The white fog is visible as the depth increases along the plane.

from pyfbsdk import *

# Clear the scene.
FBApplication().FileNew()

# Get a reference to the global light.
globalLight = FBGlobalLight()
globalLight.AmbientColor = FBColor(0, 1, 1) # Turquoise
globalLight.FogEnable = True

# Create a plane.
plane = FBModelPlane('myPlane')
plane.Translation = FBVector3d(0, 1, 0)
plane.Scaling = FBVector3d(10, 10, 10)
plane.Show = True

# Create a cone.
model = FBCreateObject( 'Browsing/Templates/Elements/Primitives', 'Cone', 'Cone' )
model.Scaling = FBVector3d(10, 5, 10)
model.Translation = FBVector3d(0, 50, 0)
model.Show = True

Example: Dynamic Lighting

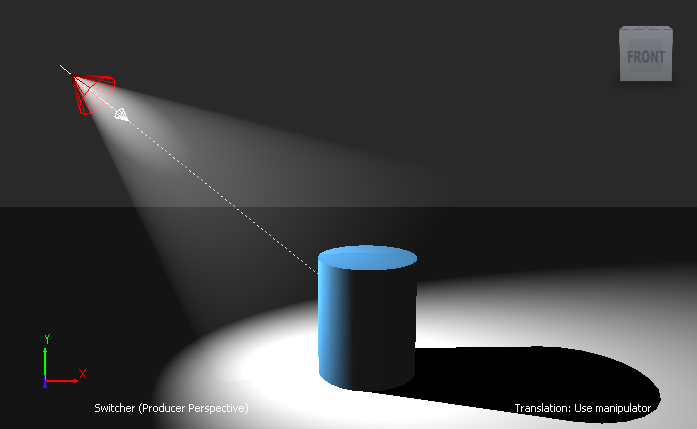

Sample Viewport Output:

Program Summary: The program below creates a plane (FBModelPlane), a blue cylinder (FBModel), and a spotlight (FBLight) pointing at the cylinder. The Dynamic Lighting shader is bound to the plane and the cylinder to allow the light to project onto their surfaces. The Live Shadow shader is bound to the plane to allow the cylinder's shadow to project onto the plane's surface.

from pyfbsdk import *


###############################################################
# Helper Function(s).                                         #
###############################################################

# Create a spotlight positioned at pTranslation, which will
# shine light on pModel.
def createSpotlight(pTranslation, pModel):
    light = FBLight('myLight')
    light.LightType = FBLightType.kFBLightTypeSpot
    light.Intensity = 200
    light.ConeAngle = 70
    light.FogIntensity = 20
    light.Show = True
    light.Translation = pTranslation
    light.LookAt = pModel
    return light

# Create a large plane.
def createPlane():
    plane = FBModelPlane('myPlane')
    plane.Translation = FBVector3d(0, 1, 0)
    plane.Scaling = FBVector3d(5, 0, 5)
    plane.Show = True
    return plane

# Create a cylinder.
def createCylinder():
    cylinder = FBCreateObject( 'Browsing/Templates/Elements/Primitives', 'Cylinder', 'Cylinder' )
    cylinder.Scaling = FBVector3d(5, 3, 5)
    cylinder.Translation = FBVector3d(0, 30, 0)
    cylinder.Show = True
    return cylinder

# Create a blue material.
def createMaterial():
    material = FBMaterial('myMaterial')
    material.Diffuse = FBColor(0.25, 0.56, 0.8)
    return material

# Create a live shadow shader. This shader projects the shadow of an occluding
# object onto a surface.
def createLiveShadowShader():
    shader = FBCreateObject('Browsing/Templates/Shading Elements/Shaders', 'Live Shadow', 'myLiveShadowShader')
    return shader

# Create a dynamic lighting shader. This shader projects light dynamically
# onto surfaces.
def createDynamicLightingShader():
    shader = FBCreateObject('Browsing/Templates/Shading Elements/Shaders', 'Dynamic Lighting', 'myDynamicLightingShader')
    return shader



###############################################################
# Main.                                                       #
###############################################################
# Clear the scene.
FBApplication().FileNew()

# Create a plane and a cylinder.
plane = createPlane()
cylinder = createCylinder()

# Create a material to apply to the cylinder.
material = createMaterial()
cylinder.Materials.append(material)

# Create a spotlight looking at the cylinder.
light = createSpotlight(FBVector3d(-150, 150, -20), cylinder)

# Create the live shadow and dynamic lighting shaders.
liveShadow = createLiveShadowShader()
dynamicLighting = createDynamicLightingShader()

# Apply the shaders to the plane.
plane.Shaders.append(liveShadow)
plane.Shaders.append(dynamicLighting)
plane.ShadingMode = FBModelShadingMode.kFBModelShadingDefault

# Apply the dynamic lighting shader to the cylinder.
cylinder.Shaders.append(dynamicLighting)
cylinder.ShadingMode = FBModelShadingMode.kFBModelShadingDefault
