KFbxEventHandler Class Reference
Detailed Description
FBX event handler class contains a listener and a callback function.
Event handler is used to bind emitter and listener together. Its callback function could process event data. To generate a valid event handler, you can create an event emitter and event listener first and then call KFbxListener::Bind(). It will create an event handler automatically and bind the handler to the listener and the created emitter. After that, the emitter and listener are bound together via event handler.
- Remarks:
- An object(emitter) can emit a certain type of event, the plug-in(listener) who are listening to that type of event, will receive a signal and take action to process the event data.
- The whole process of event is:
-
- 1. Create an emitter and a listener, then bind them together via the same event handler.
- 2. Emitter can emit an event at certain conditions. The event could be handled by event handler.
- 3. Once an event is emitted, the listener to this event will receive a signal.
- 4. And then the listener could process the event data according to the types of event, by calling event handler.
- Note:
- The event data is process by the callback function of event handler.
- See also:
- KFbxListener KFbxEventBase KFbxEvent KFbxEmitter
Definition at line 72 of file kfbxeventhandler.h.
#include <kfbxeventhandler.h>
Public Types |
|
| enum | { eNODE_LISTENER = 0, eNODE_EMITTER, eNODE_COUNT } |
Public Member Functions |
|
| KFbxEventHandler () | |
| Constructor. |
|
| virtual | ~KFbxEventHandler () |
| Destructor. |
|
| virtual int | GetHandlerEventType ()=0 |
| Get event type of current handler. |
|
| virtual void | FunctionCall (const KFbxEventBase &pEvent)=0 |
| call callback function to process event
data. |
|
| virtual KFbxListener * | GetListener ()=0 |
| Get listener of current handler. |
|
| KFBX_LISTNODE (KFbxEventHandler, eNODE_COUNT) | |
Member Enumeration Documentation
| anonymous enum |
Definition at line 75 of file kfbxeventhandler.h.
{
eNODE_LISTENER = 0,
eNODE_EMITTER,
eNODE_COUNT
};
Constructor & Destructor Documentation
| KFbxEventHandler | ( | ) | [inline] |
| virtual ~KFbxEventHandler | ( | ) | [inline, virtual] |
Member Function Documentation
| virtual int GetHandlerEventType | ( | ) | [pure virtual] |
Get event type of current handler.
- Returns:
- the type ID of event.

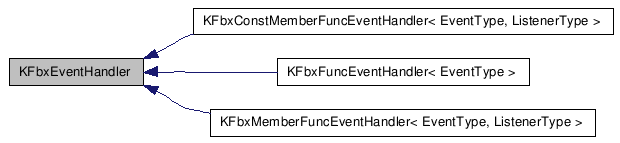

Implemented in KFbxMemberFuncEventHandler< EventType, ListenerType >, KFbxConstMemberFuncEventHandler< EventType, ListenerType >, and KFbxFuncEventHandler< EventType >.
| virtual void FunctionCall | ( | const KFbxEventBase & | pEvent | ) | [pure virtual] |
call callback function to process event data.
- Parameters:
-
pEvent specify the event type. pEvent could be a specific class which derived from KFbxEventBase.
- See also:
- KFbxEventBase
Implemented in KFbxMemberFuncEventHandler< EventType, ListenerType >, KFbxConstMemberFuncEventHandler< EventType, ListenerType >, and KFbxFuncEventHandler< EventType >.
| virtual KFbxListener* GetListener | ( | ) | [pure virtual] |
Get listener of current handler.
- Returns:
- listener
Implemented in KFbxMemberFuncEventHandler< EventType, ListenerType >, KFbxConstMemberFuncEventHandler< EventType, ListenerType >, and KFbxFuncEventHandler< EventType >.
| KFBX_LISTNODE | ( | KFbxEventHandler | , |
| eNODE_COUNT | |||
| ) |
The documentation for this class was generated from the following file:
- fbxfilesdk/kfbxevents/kfbxeventhandler.h
