List View mode displays a list of objects that make up the timeline. For example, the list gives information about each track, layer, element, cut, gap, container, and cue mark. You can see element names, whether the elements contain soft effects, when they start and end (using timecode), and how long they last.
You can display either the contents of the Record Area or the Source Area in List View.
The entries in the Type column contain a hierarchical representation of the media and metadata that make up a timeline. You can expand or collapse an entry to show or hide its contents.

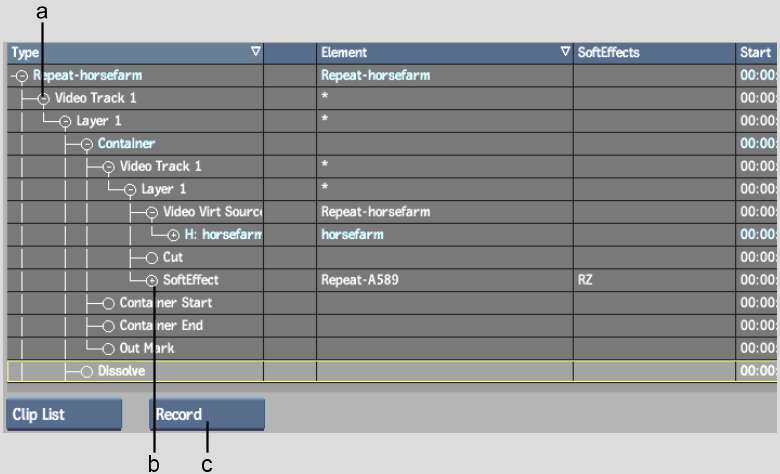

(a) Collapse icon (b) Expand icon (c) Record Area clip list
The following information is provided in List View.
| Column: | Displays: |
|---|---|
| Type | Type of element on the timeline. You can expand an entry in the list to view the hierarchical contents that make up the timeline. |
| Element | Name of the element on the timeline if there is one. |
| Soft Effects | Type of soft effect applied to the element, or if a Batch FX was applied. |
| Start | Record timecode of the element's first frame. |
| Duration | Duration of the element in the Record Area. |
| TC In | Record timecode of the element's in point. |
| TC Out | Record timecode of the element's out point. |
| KC In | Keycode of the element's in point. |
| KC Out | Keycode of the element's out point. |
| Tape | Name of the tape from which the element was captured. If a clip was imported, the tape name is IMPORT. For virtual colour sources, the tape name is COLOUR. |
| Comment | The comment for the element or cue mark. |
| Head | Number of available head frames. |
| Tail | Number of available tail frames. |
The selection state of elements in Record Area List View does not change when going back and forth between other view modes and Record Area List View.
