Accessing the Input Clip Menu




Use the Input Clip menu to adjust the settings for the clip you want to input.

Typically, you access the Input Clip menu from the clip library into which you want to capture clips. However, you can also access the Input Clip menu directly from the EditDesk.

To access the Input Clip menu from a clip library:

  1. From the EditDesk, enter the clip library into which you want to capture a clip.

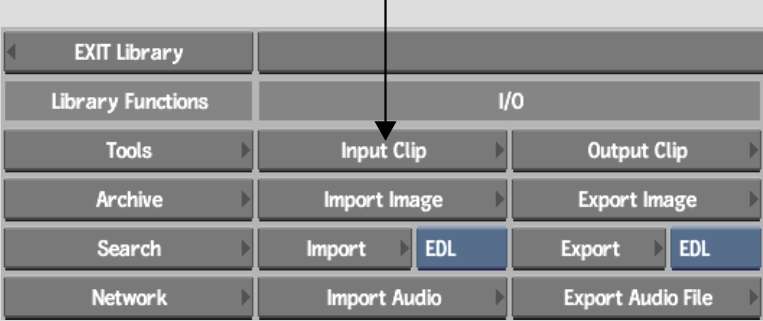

  2. Click Input Clip or press F9.

    Show small imageShow large image

    The Input Clip menu appears.

To access the Input Clip menu from the EditDesk:

  1. Press F9, or select I/O from the A/V Tools box and click the Input button that appears.

    When you capture clips to the EditDesk, it is a good idea to save them to a clip library immediately.

Show small imageShow large image

(a) Device Name box  (b) Aspect Ratio box  (c) Aspect Ratio field  (d) EDL button  (e) Current Timecode field  (f) Proxy Quality box  (g) Bit Depth box   (h) Scan mode box    (i) Tape Name field  (j) Clip Name field  (k) Increment Name field (l) Tape Type box
