Replace Edits




Replace is an overwrite edit where the edit sequence does not ripple. You can do a replace edit so that if the source clip is a different length than the element it replaces, the source clip is shortened or lengthened proportionally to fit the duration of the replaced element. This creates a timewarp effect with a mix value of 0.

You can also do a replace edit without creating a timewarp as long as the source clip is longer than the clip it is replacing. Frames are loaded for the duration of the clip with extra frames loaded as tail frames.

To replace elements gesturally, Ripple must be off. The Replace hotkey and the Replace option in the Src/Rec Player never ripple regardless of the Ripple mode.

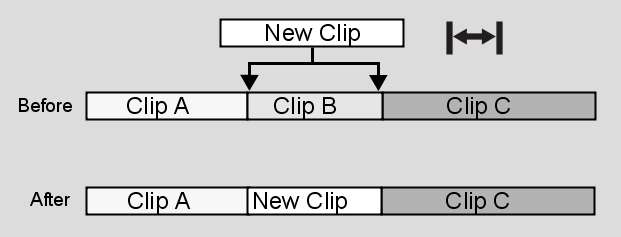

In the following illustration, New Clip replaces Clip B. Although New Clip is longer than Clip B, the overwrite operation does not change the duration of the record clip. Only the exact number of frames in New Clip that are needed to fill Clip B are used.

Show small imageShow large image

To replace a clip in the Record Area gesturally:

  1. View the edit sequence in Storyboard view.
  2. Disable Ripple.
  3. Scroll the record clip until you see the shot you want to replace.
  4. Drag the source clip to the middle of the shot in the record clip and release when you see the replace cursor.

    Show small imageShow large image

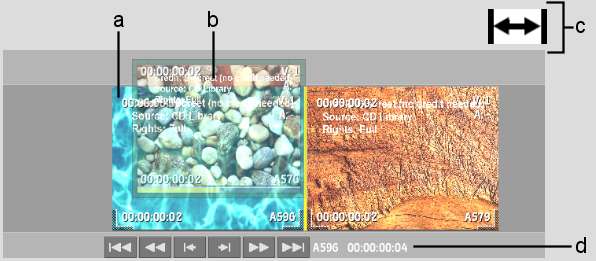

    (a) Clip to be replaced  (b) Source clip  (c) Replace cursor (green)  (d) Duration of sequence before replace (00:00:00:04) 

    The edit sequence does not change duration to accommodate the new clip.

    Show small imageShow large image

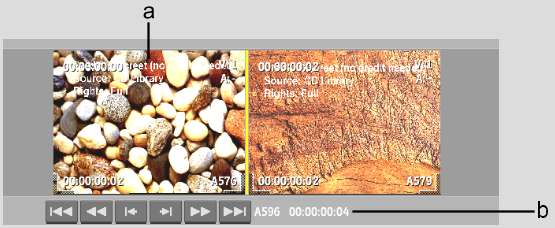

    (a) Source clip  (b) Duration of sequence after replace does not change (00:00:00:04)  

To replace a clip in the Record Area using the hotkey or the Src/Rec Player options:

  1. View the edit sequence in Storyboard or Record Timeline view.
  2. Select the new source in the Source Area.
  3. Select the element you want to replace:
    • In Storyboard view, centre the shot on the record reel.
    • In Record Timeline view, select the element, or move the focus point over the element.
  4. Do one of the following
    • To replace by creating a timewarp, press J, or click Replace in the Src/Rec Player.
    • To replace by loading extra frames as tail frames or to replace the media in multiple selected elements, press Ctrl+J, or select Replace All (No Fit) from the Replace dropdown list in the Src/Rec Player.

To replace a clip in a BFX timeline:

  1. Set the record and source clips.
  2. In the record timeline, select the element you want to replace, or place the positioner over the element.
  3. Press J.
