Coloured Frame Node

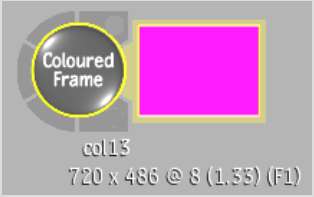

The Coloured Frame node generates a colour bar, noise, gradient, or colour clip that can be used as the clip for other nodes. You can specify the frame's resolution and bit depth. The Coloured Frames node menu is similar to the Colour Source command in the Video menu .

Show small imageShow large image

See Creating Colour Sources.

The Coloured Frame node includes eight colour pots for storing and selecting customized colours for creating frames.

To change the current colour of the Coloured Frame node:

  1. Click the Current Colour pot.

    Show small imageShow large image

  2. Select a new colour using the colour picker.
  3. Click the Current Colour pot again.

To customize a colour pot:

  1. Click the Current Colour pot.
  2. Select the colour you want using the colour picker.
  3. Click a colour pot, holding the mouse button down until the colour changes.

    All customized colour pots are saved with each Coloured Frame node. The information is also saved in the Batch setup file.
