Bypassing Nodes




You can improve your workflow in Batch by deactivating certain nodes and rendering only the nodes that you want to process right away.

For any node, you can pass the Front, Back, Matte, or Key-in clip—depending on the type of node you select and its source tab inputs—as the input to the next node in a branch.

To bypass a node:

  1. In the schematic, select the node that you want to bypass.

    Typically, the bypass node will feed its result into a node that you want to render or work with more intensively, such as an Action node. For example, click a Keyer node that has Front, Back, and Key-in clips feeding into it.

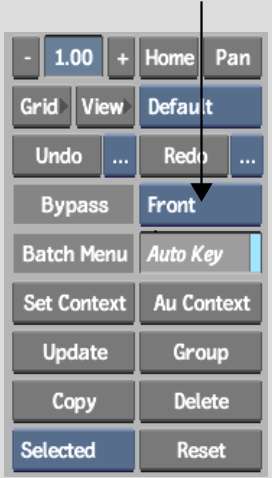

  2. In the Bypass box, select the clip you want to pass as the input to the next node.

    Show small imageShow large image

    The options that appear in the Bypass box depend on the inputs of the node you select in step 1. For example, the Keyer node has Front, Back, and Key-in clips as inputs to its source tabs, therefore they appear in the Bypass box.

    The Keyer node operations are bypassed. In this case, only the back clip is passed.

    Show small imageShow large image

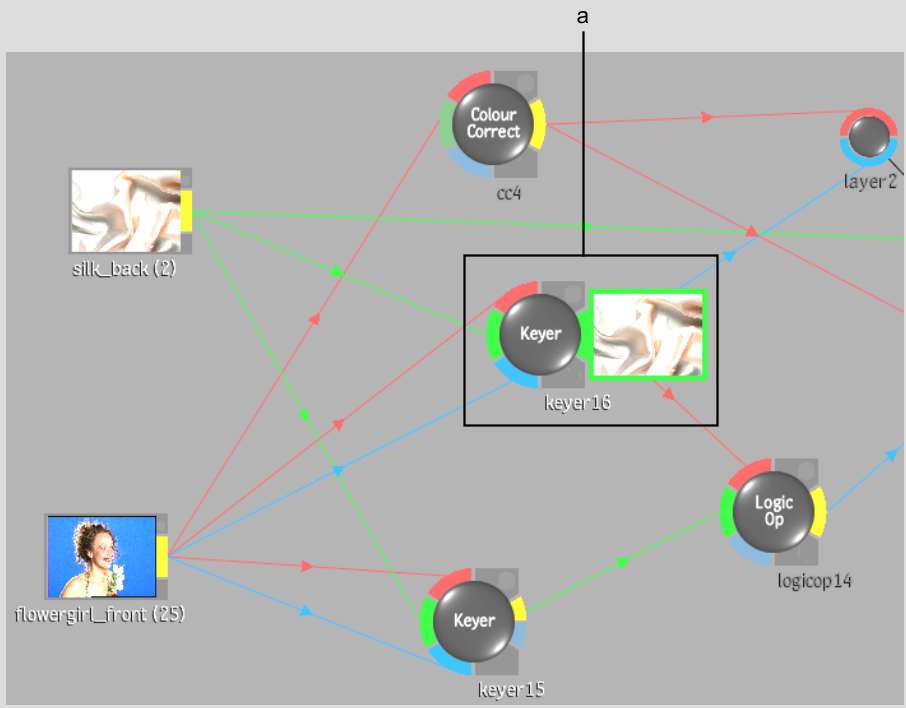

    (a) Bypassed Keyer node  

  3. If you want to undo the bypass of a single node, select the bypassed node and in the Bypass box, select Result.

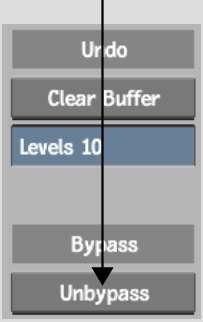

  4. When you are ready to render the entire process tree, go to the Setup menu and click Unbypass to unbypass selected nodes.
    NoteClicking Unbypass/Re-bypass affects whatever is selected in the Selection Mode box (All, Tree, Branch, or Selected).

    Show small imageShow large image

    TipYou can use the - + Click key combination to bypass/unbypass a node.

Bypassing Action or Keyer Nodes

The Action and Keyer nodes each have two outputs: a result and a matte. If you bypass one of these nodes, the matte output will be the same as the result output (depending on the current selection in the Bypass box).
